Summary of Contents for KROHNE OPTIFLEX 3200 C
- Page 1 OPTIFLEX 6200 C/F OPTIFLEX 7200 C/F/S OPTIFLEX 8200 C/F/S/D Supplementary Instructions for IECEx applications Supplementary Instructions for IECEx applications Supplementary Instructions for IECEx applications Supplementary Instructions for IECEx applications © KROHNE 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en...
-
Page 2: Table Of Contents
2.2.2 Electrostatic discharge ......................11 2.3 Operating conditions: ambient and process connection temperatures......12 2.3.1 General notes........................12 2.3.2 OPTIFLEX 3200 C (compact converter version)..............13 2.3.3 OPTIFLEX 3200 F (remote converter version) ..............14 2.3.4 OPTIFLEX 6200 C (compact converter version)..............15 2.3.5 OPTIFLEX 6200 F (remote converter version) .............. - Page 3 5.5 OPTIFLEX 1300: Replacement of the signal converter..........55 5.6 Manufacturer ........................56 5.7 Returning the device to the manufacturer..............56 5.7.1 General information......................56 5.7.2 Form (for copying) to accompany a returned device............57 6 Notes 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com...
-
Page 4: General Safety Information

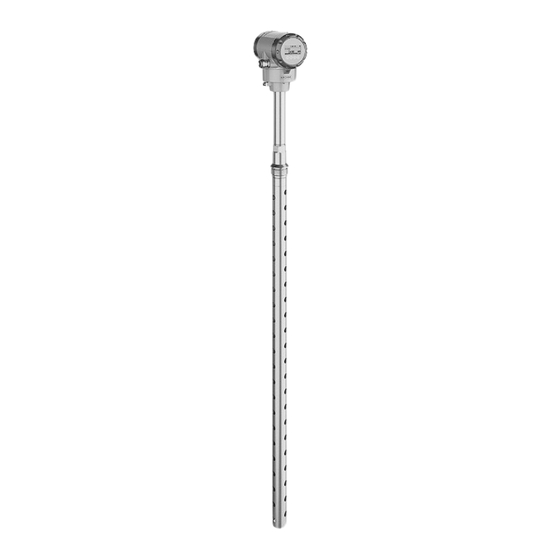

WARNING! Installation, commissioning and maintenance may only be carried out by "Personnel trained in explosion protection". 1.2 Device description OPTIFLEX 3200 C/F OPTIFLEX 3200 C/F OPTIFLEX 3200 C/F OPTIFLEX 3200 C/F This TDR level transmitter measures distance, level, interface, mass, volume and flow rate of liquids, pastes and slurries with hygienic requirements. -
Page 5: Equipment Protection Levels (Epl)
• Ex ia IIIC T85°C...T315°C Da/Db OPTIFLEX 8200 with a PTFE process seal system, FPM/FKM or Kalrez® gasket, and a Ø2 mm HT or Ø2 mm HT/HP probe • Ex ia IIIC T85°C...T300°C Da/Db 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 6: Ex Ia/Db- And Ex Ia/Tb-Approved Devices
OPTIFLEX 7200 with a ceramic process seal system and a Kalrez® gasket • Ex ia/db IIC T6...T2 Ga/Gb OPTIFLEX 3200/6200/7200/8200 All other versions • Ex ia/db IIC T6...T3 Ga/Gb www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... - Page 7 The Ex ia/tb-approved device is suitable for use in potentially explosive atmospheres of all flammable substances in Dust Groups IIIA, IIIB and IIIC. It is certified for applications requiring EPL Da/Db or EPL Db equipment, when fitted with the appropriate options. 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com...
-
Page 8: Ex Ic Devices
OPTIFLEX 7200 with a ceramic process seal system and a Kalrez® gasket OPTIFLEX 8200 with a PTFE process seal system, an EPDM gasket, and a Ø2 mm HT or Ø2 mm HT/HP probe • Ex ic IIIC T85°C...T250°C Dc www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 9: Ex Ic Na Devices
EPL Gc equipment when fitted with the appropriate options. It agrees with temperature classes General T6 thru T1 (Gas Groups) if the temperature limits are obeyed. For more data, refer to notes on page 12. 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 10: Iecex Nameplates
Types of device protection including approved Dust Groups, maximum surface temperature and equipment protection level 3 Type code – for more data, refer to "Order code" in the handbook www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 11: Installation
• locations where there is a risk of an increase in electrostatic charge caused by compressed air and dust, • locations near machines that use friction, • locations near systems that apply electrons as a spray (e.g. near electrostatic painting systems), and 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 12: Operating Conditions: Ambient And Process Connection Temperatures
The reference point for the process temperature is the flange facing (flanges), the thread stop (threaded connections) or the facing (hygienic connections) of the device. In the tables that follow, this reference point will be referred to as the "process connection temperature". www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 13: Optiflex 3200 C (Compact Converter Version)
It is permitted to have insulation on the pipe or stilling well and the process connection. 2.3.2 OPTIFLEX 3200 C (compact converter version) Maximum limits for EPL Ga/Gb, EPL Gb, EPL Da/Db and EPL Db Temperature Maximum surface Max. -
Page 14: Optiflex 3200 F (Remote Converter Version)
Maximum limits for EPL Ga/Gb, EPL Gb, EPL Da/Db and EPL Db Temperature Maximum surface Max. process Maximum ambient temperature class temperature temperature or Aluminium housing Stainless steel process connection housing temperature [°C] T100 +100 T135 +110 +135 T150 +150 www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 15: Optiflex 6200 C (Compact Converter Version)
4-20mA / Fieldbus 4-20mA / Fieldbus connection HART with (PA/FF) HART with (PA/FF) temperature or without Modbus RTU or without Modbus RTU optional optional output output [°C] 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... - Page 16 If the device has an EPDM gasket, the maximum process connection temperature is +150 ° C. If the device has an adaptor for BM100/BM100A probes, the maximum process connection temperature is +150 ° www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en...
-
Page 17: Optiflex 6200 F (Remote Converter Version)
Modbus RTU optional optional output output [°C] +67 (+47) +67 (+47) +67 (+47) +67 (+47) T100 +80 (+62) +80 (+62) +100 +80 (+62) +78 (+62) T135 +110 +135 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 18: Optiflex 7200 C (Compact Converter Version)
4-20mA / Fieldbus 4-20mA / Fieldbus connection HART with (PA/FF) HART with (PA/FF) temperature or without Modbus RTU or without Modbus RTU optional optional output output [°C] T100 +100 www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... - Page 19 C. If the device has an FKM/FPM gasket, minimum process connection temperature is -40 ° C. If the device has a Metaglas adaptor, minimum process connection temperature is -30 ® ° 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com...
- Page 20 +80 (+61) +100 +80 (+58) +80 (+58) T135 +110 +135 T200 +150 +180 +200 T250 +250 1 Values in parentheses are for Ex ic nA-approved devices with EPL Gc www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en...
-
Page 21: Optiflex 7200 C (Compact) Converter: Replacement For The Optiflex 1300 C Converter
HART with (PA/FF) HART with (PA/FF) temperature or without Modbus RTU or without Modbus RTU optional optional output output [°C] T100 +100 T135 +110 +135 T200 +150 +180 +200 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... - Page 22 ° device has an FKM/FPM gasket, minimum process connection temperature is -40 C. If the ° device has a Metaglas ® adaptor, minimum process connection temperature is -30 ° www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en...
-
Page 23: Optiflex 7200 F (Remote Converter Version)
2 If the device has a Ø2mm single cable probe, use the value in square brackets Minimum limits for all EPLs Min. process temperature or Maximum ambient temperature process connection temperature Aluminium housing Stainless steel housing [°C] 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... - Page 24 +80 (+62) +100 +80 (+62) +80 (+62) T135 +110 +135 T200 +150 +180 +200 T250 +250 1 Values in parentheses are for Ex ic nA-approved devices with EPL Gc www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en...
-
Page 25: Optiflex 7200 S (Compact Converter With Sensor Extension Version)
4-20mA / HART with Fieldbus (PA/FF) process connection or without optional Modbus RTU temperature output [°C] +67 (+47) +67 (+47) T100 +80 (+62) +100 +80 (+62) T135 +110 +135 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... - Page 26 4-20mA / HART with Fieldbus (PA/FF) process connection or without optional Modbus RTU temperature output [°C] +67 (+47) +67 (+47) T100 +80 (+62) +100 +80 (+62) +135 +110 +135 www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en...
-
Page 27: Optiflex 7200 D (Remote Converter With Sensor Extension Version)
4-20mA / HART with Fieldbus (PA/FF) process connection or without optional Modbus RTU temperature output [°C] +67 (+47) +67 (+47) T100 +80 (+62) +100 +80 (+62) 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... - Page 28 4-20mA / HART with Fieldbus (PA/FF) process connection or without optional Modbus RTU temperature output [°C] +67 (+47) +67 (+47) T100 +80 (+62) +100 +80 (+62) T135 +110 +135 www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en...
-
Page 29: Optiflex 8200 C (Compact Converter Version)
+47 [+41] +43 [+26] 1 If the device has a Ø2mm single cable probe that was part of an OPTIFLEX 1300 (HT version), use the value in square brackets 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... - Page 30 ° device has an FKM/FPM gasket, minimum process connection temperature is -40 ° C. If the device has a Metaglas ® adaptor, minimum process connection temperature is -30 ° www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en...
- Page 31 [°C] +68 (+46) +68 (+46) +66 (+44) +66 (+43) T100 +80 (+61) +80 (+61) +100 +80 (+59) +80 (+58) T135 +110 +135 T200 +150 +180 +200 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com...
-
Page 32: Optiflex 8200 F (Remote Converter Version)
Maximum limits for EPL Ga/Gb, EPL Gb, EPL Da/Db and EPL Db Temperature Maximum surface Max. process Maximum ambient temperature class temperature temperature or Aluminium housing Stainless steel process connection housing temperature [°C] T100 +100 T135 +110 +135 www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... - Page 33 1 Values in parentheses are for Ex ic nA-approved devices with EPL Gc INFORMATION! If the device has an EPDM gasket, the maximum process connection temperature is +250 ° 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com...
- Page 34 +50 [+53] +300 +52 [+56] +46 [+50] T315 +315 +50 [+54] +44 [+47] 1 If the device has a double ceramic process seal system, use the value in square brackets www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en...
- Page 35 C. If the device has an FKM/FPM gasket, minimum process connection temperature is -40 ° C. If the device has a Metaglas adaptor, minimum process connection temperature is -30 ® ° 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com...
-
Page 36: Optiflex 8200 S (Compact Converter With Sensor Extension Version)
+100 +80 (+62) T135 +110 +135 T200 +150 +180 +200 T300 +250 +280 +300 T315 +315 1 Values in parentheses are for Ex ic nA-approved devices with EPL Gc www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... - Page 37 INFORMATION! Minimum limits for all EPLs Minimum limits for all EPLs Minimum limits for all EPLs Minimum limits for all EPLs The minimum ambient temperature is always -40 ° 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com...
-
Page 38: Electrical Connections
Open the terminal compartment cover (Ex i-approved devices with one output) Figure 3-1: How to open the terminal compartment cover for Ex i-approved devices with one output For more data about the procedure, refer to the handbook. www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 39: How To Close The Terminal Compartment
Figure 3-3: How to close the terminal compartment cover for Ex i-approved devices with one output • Put the cover on the housing and push it down. • Turn the cover clockwise until it is fully engaged. 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 40: Terminal Tightening Capacity
The terminal tightening capacity for the current output terminal and the signal cable is: Output option Type of wire Terminal tightening capacity [mm²] [AWG] 4...20 mA + HART or Rigid Modbus RTU Flexible PROFIBUS PA or Rigid FOUNDATION™ fieldbus Flexible www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 41: Output Options: Terminals
1 Terminals for 4...20 mA passive - HART (I/O 1) Devices with an Ex d approval Figure 3-6: Devices with an Ex d approval 1 Terminals for 4...20 mA passive - HART (I/O 1) 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 42: Two Current Outputs: 4
Figure 3-8: One current output and one switch output: 4...20 mA passive - HART + switch output (relay) 1 Terminals for 4...20 mA passive - HART (I/O 1) 2 Terminals for switch power supply (I/O 2) 3 Terminals for switch output (Switch). No polarity. www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 43: Modbus Rtu
3.4.5 FOUNDATION™ fieldbus or PROFIBUS PA Devices with an Ex i approval Figure 3-10: Devices with an Ex i approval 1 Terminals for power supply and communication (I/O 1). No polarity. 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 44: Equipotential Bonding System
Connect the two housings (converter and probe housings) to the equipotential bonding system. Ex ia- and Ex ic-approved devices The device electronics are isolated with a rating of 500 V www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 45: Ex Ia Equipment
Switch ≤30 ≤300 ≤1 Modbus RTU I/O 1 ≤12 ≤100 ≤0.3 I/O 2 ≤24 ≤300 ≤1.2 PROFIBUS PA I/O 1 (Entity) FOUNDATION™ fieldbus ≤24 ≤380 ≤5.32 I/O 1 (FISCO) 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 46: Supply Voltage
Ex ia-approved and the terminals compartment is Ex d / Ex t-approved Figure 3-13: Compact version: Compartments in Ex ia/db- and Ex ia/tb-approved equipment www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 47: How To Connect The Electrical Cables
Make sure that the tightening capacity of the cable gland is applicable to diameter of the electrical wire. Obey the instructions that follow: • Use the electrical connection procedure in the handbook. 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 48: Supply Voltage
13 V. A higher voltage can cause a leakage current. Leakage currents can have an effect on the performance of the device and can cause the operation of fuses in the device. Do this check before energizing the circuit. www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 49: Ex Ic Equipment
The signal cable (between the converter electronics and the probe electronics) is supplied by the manufacturer for IECEx applications. The signal cable cannot be changed by the user. For more data, speak to the supplier. 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 50: Maximum Intrinsically-Safe Values For The Electrical Circuit
Level transmitter with the PROFIBUS PA or FOUNDATION fieldbus output option Terminals Minimum voltage at Maximum voltage at output terminals output terminals [V DC] I/O 1 (Entity) I/O 1 (FISCO) www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 51: Ex Ic Na Equipment
The signal cable (between the converter electronics and the probe electronics) is supplied by the manufacturer for IECEx applications. The signal cable cannot be changed by the user. For more data, speak to the supplier. 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 52: Supply Voltage
13 V. A higher voltage can cause a leakage current. Leakage currents can have an effect on the performance of the device and can cause the operation of fuses in the device. Do this check before energizing the circuit. www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 53: Start-Up
Ex nA applications: Are the cable glands, plugs and adaptors Ex nA- or Ex ec-approved? Ex nA applications: • Did you install the correct cable glands? Is the terminal compartment correctly sealed? 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 54: Service
A pressurized tank can cause injury to persons when they do work on it. • Make sure that all electrical wires are isolated from the ground. This is also applicable to Protective Earth (PE), Functional Earth (FE) and equipotential bonding conductors. www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... -
Page 55: Optiflex 2200: Replacement Of The Signal Converter
Refer to the installation procedures in the handbook. The data (temperature, voltage etc.) given in these supplementary instructions agrees with the new device configuration. Make sure that you also obey the limits of the process connection installed on your site. 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 56: Manufacturer
2 Allée des Ors – B.P. 98 26103 Romans-sur-Isère CEDEX France If the serial number on the device nameplate starts with the letter "S", this device is made by: KROHNE Measurement Technology (Shanghai) Co., Ltd. Minshen Road 555 Songjiang Industrial Zone Shanghai 201612 China If you need to return your device for inspection or repair, make sure that you send it to the correct manufacturer and obey the instructions that follow. -
Page 57: Form (For Copying) To Accompany A Returned Device
We have flushed out and neutralized all cavities in the device. We hereby confirm that there is no risk to persons or the environment through any residual media contained in the device when it is returned. Date: Signature: Stamp: 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com... -
Page 58: Notes
NOTES OPTIFLEX X200 www.krohne.com 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en... - Page 59 NOTES OPTIFLEX X200 09/2018 - 4006564001 - AD IECEX OPTIFLEX x200 R01 en www.krohne.com...
- Page 60 • Process Analysis • Services Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.: +49 203 301 0 Fax: +49 203 301 10389 info@krohne.com The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
