Summary of Contents for Cadel GRACE 3

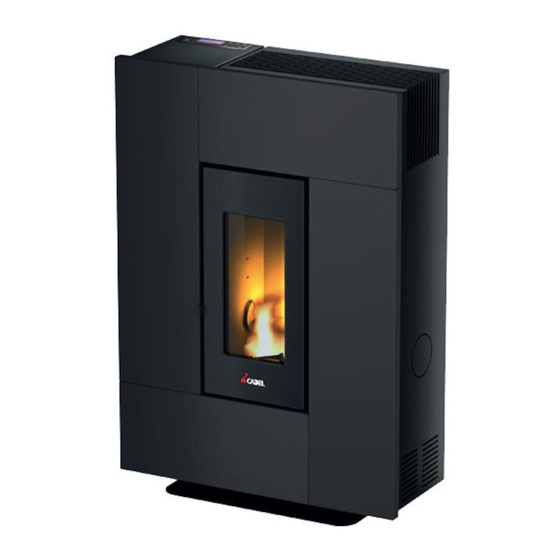

- Page 1 USER MANUAL Pellet Stove ©2019 CADEL srl | All rights reserved - Tutti i diritti riservati GRACE - SPIRIT - TALAS...
- Page 2 IT - SCHEDA PRODOTTO EN - PRODUCT DATA SHEETS FR - FICHE DE PRODUIT NL - PRODUCTKAART DE - PRODUKTDATENBLATT ES - FICHA DEL PRODUTO PT - FICHA DO PRODUTO PL - KARTA PRODUKTU CZ - INFORMAČNÍ LIST VÝROBKU SK - INFORMAČNÝ LIST VÝROBKU RO - FIȘA PRODUSULUI HU - TERMÉKISMERTETŐ...
- Page 3 - SCHEDA PRODOTTO - KARTA PRODUKTU - ΔΕΛΤΙΟ ΠΡΟΪΟΝΤΟΣ - PRODUCT DATA SHEETS - INFORMAČNÍ LIST VÝROBKU - ПРОДУКТОВ ФИШ - FICHE DE PRODUIT - INFORMAČNÝ LIST VÝROBKU - GAMINIO VARDINIŲ - PRODUCTKAART - FIȘA PRODUSULUI PARAMETRŲ LENTELĖ - PRODUKTDATENBLATT - TERMÉKISMERTETŐ...
- Page 4 Potenza termica indiretta Putere termică indirectă Indirect heat output Közvetett hőteljesítmény Puissance thermique indirecte Posredna toplotna moč Onrechtstreeks thermisch vermogen Neizravna toplinska snaga Indirekte Heizleistung Έμμεση θερμική ισχύς Potencia térmica indirecta Индиректна топлинна мощност Potência térmica indireta Netiesioginė šiluminė galia Pośrednia moc cieplna Kaudne soojusvõimsus Nepřímý...
- Page 5 Overhold advarslerne og instruktionerne for installation og periodisk vedligeholdelse, der er angivet i instruktionsvejledningen. Respektera de bestämmelser och anvisningar för installation och löpande underhåll som anges i de specifika kapitlen i handboken. CADEL srl FREEPOINT by Cadel Via Foresto Sud, 7 31025 Santa Lucia di Piave (TV) - ITALY www.cadelsrl.com...
-
Page 6: Table Of Contents
10.5 ELECTRICAL SAFETY ..........18 SUMMARY 10.6 SMOKE FAN ............18 1 MANUAL SIMBOLOGY ........3 10.7 GEAR MOTOR ............18 2 DEAR CUSTOMER ..........3 10.8 TEMPORARY POWER CUT ........18 3 CAUTIONS ............3 10.9 FAILED START-UP ..........18 SAFETY REQUIREMENTS ......4 10.10 BLACKOUT WITH THE BOILER ON ......18 5 WARRANTY CONDITIONS .......5 10.11 ALARM ALERTS .............18 6 SPARE PARTS ..........6... -
Page 7: Manual Simbology
MANUAL SIMBOLOGY USER AUTHORISED TECHNICIAN (ONLY to interpret or the Stove-manufacturer or the Authorized Techni- cian of Technical Assistance Service approved by the Stove-manufacturer) SPECIALIZED STOVE-REPAIRER CAUTION: READ CAREFULLY THE NOTE CAUTION: DANGER OR IRREVERSIBLE DAMAGE POSSIBILITY • The icons with the stylized figures indicates whom the subject dealt in the paragraph is addressed to (between the User and/ or the Authorized Technician and/or the Specialized Stove-repairer). -
Page 8: Safety Requirements
SAFETY REQUIREMENTS • Installation, electrical connection, functional verification and maintenance must only be performed by qualified or authorised personnel. • Live electrical parts: disconnect the product from the 230V power supply before perfor- ming any maintenance operation. Only power the product after completing assembly. • Special maintenance must only be performed by authorised and qualified personnel. -
Page 9: Warranty Conditions
and for your safety please use appropriate fireproof devices, such as heat-protecting gloves. • The stove is equipped with a safety device that stops the feed screw immediately when the pellet loading door is opened. This safety device (standard EN 60335-2-102) prevents the user from coming into contact with the moving parts of the appliance. -
Page 10: Spare Parts
• Parts subject to normal wear such as gaskets, glass, claddings and cast iron grids, painted, chrome-plated or gilded parts, handles and electric cables, bulbs, indicator lights, knobs, all parts which can be removed from the hearth. • Variations in colour of the painted or ceramic/serpentine parts and craquelure ceramics as they are natural characteristics of the material and product use. -
Page 11: Use
this equipment and/or batteries or accumulators included from other types of waste and to arrange for disposal by the municipal waste service It is possible to ask your local dealer to collect the waste electric or electronic appliance under the conditions and following the methods provided by national laws transposing the Directive 2012/19/EU. -
Page 12: Main Menu
LEGEND Fig. 2 - Fig. 3 Ambient temperature If there is ". " = 0.5 °C (29.° = 29.5°) MAIN MENU It is accessed by pressing key 3 (menu). The items that are accessed are: • Time and Date • Timer • Sleep (only with the stove on) • Settings • Info... - Page 13 • Press “menu” to confirm. • Scroll to “Cleaning” using the arrows. • Press “menu” to confirm. • Select “On” with the + - keys. • Press “menu” to confirm and “esc” to exit. c - Screw Loading To select “Screw loading” (only when the boiler is switched off) act as follows: • Press the “menu”...
-
Page 14: Info Menu
i - Smoke Fan rpm To change the parameter act as follows: • Press the “menu” button. • Scroll to “Settings” using the arrows • Press “menu” to confirm. • Scroll to “Smoke Fan rpm” using the arrows. • Press “menu” to confirm. • Modify the % with the + - keys. -
Page 15: Start Up
START UP We remind you that the first ignition must be carried out by a specialized and authorixed technician who will check that all is installed in compliance with current regulations and checks the efficiency. • If inside the combustion chamber there are booklets, manuals, etc..., remove them. • Check if the door is correctly closed. -
Page 16: Adjustments Menu
8.10 ADJUSTMENTS MENU To access the adjustments menu act as follows: • Press the + - keys • Scroll with the <> arrows and select “Set Room T.” or “Air Fan Speed” or "Fire" • Press “menu” to access the selected option. • Modify with the + - keys. -
Page 17: Programmed Mode (Timer) - Main Menu
8.11 PROGRAMMED MODE (TIMER) - MAIN MENU Setting the current day and time is essential for the proper operation of the timer. There are six TIMER programmes, for each one the user can decide the start-up and shutdown time as well as the day of the week in which it is active. -
Page 18: Auto Eco Mode
• If the shutdown time is not already memorised, it proposes a start-up time in + 10 minutes. • A timer programme switches the boiler off at 24:00 of one day and another programme switches it on at 00:00 of the next day: the boiler stays on. -
Page 19: Pellets Recipe
8.16 PELLETS RECIPE (SEE SECTION J SETTINGS MENU A PAG. 8) This function is for adapting the stove to the pellets that are being used. In fact, as there are several types of pellets on the market, boiler operation is extremely variable depending on the fuel quality. In the event the pellets tend to clog the brazier due to an excessive load of fuel or in the event the flame is always high even at low powers and, vice versa if the flame is low one can decre- ase/increase the amount of pellets in the brazier: The available values are:... -
Page 20: Pellet Supply
PELLET SUPPLY Fig. 14 - Wrong opening of the pellets bag Fig. 15 - Right opening of the pellets bag It is necessary to avoid to fill the hopper with the pellet when the stove is running. • Do not get the bag of pellet in contact with hot stove surfaces. • Do not empty the hopper with remaining fuels (unburnt pellet) from the burning pot coming from ignition waster. -
Page 21: Remote Control
Fig. 18 - Do not cover air slits REMOTE CONTROL • The stove can be operated through a remote control. • Operation requires 1 CR 2025 Lithium battery. Used batteries contain metals which are harmful for the environment; they must therefore be disposed of separately in the special containers. -
Page 22: Smoke Temperature Probe
• - Significant negative (wind) • - clogged fume passages • - open pellet loading tank • - open fire door or worn/broken gaskets. 10.3 SMOKE TEMPERATURE PROBE Detects the temperature of the smoke, thereby enabling start-up or stopping the product when the temperature drops below the preset value. -
Page 23: Alarm Reset
PANEL ALERT TYPE OF PROBLEM SOLUTION Check whether the brazier is clean / level of pellets in the hopper. Check pellet level in the tank. Check that the burning pot is correctly positioned The fire does not ignite. in its case and does not contain deposits or unburned material. -
Page 24: User
ney flue and chimney pot cleaned at least once a year. • It is also necessary to have the combustion chamber, motors and fans cleaned and to have the gaskets and the electronical elements checked at least once a year. All these operations must be planned in time with your Autorized Technical Assistance Service. -
Page 25: Fume Pipes Annual Cleaning
Fig. 22 - Hopper and auger cleaning 11.5 FUME PIPES ANNUAL CLEANING Clean annually from soot with brushes. The cleaning operation must be executed by a specialized stove-repairer who will provide for the cleaning of fume pipe, chimney flue and chimney pot. He will also check their eficiency and will release a written declaration of the safety of the appliance. This operation must be executed at least once a year. - Page 26 In case of doubts regarding the use of the stove, please contact ALWAYS the Authorized Technician on order to avoi irreparable damages! PROBLEM CAUSE SOLUTION INTERVENTION The stove is without power Check if the plug is connected. supply Burned protection Replace the protection fuses in the electric socket (3.15A- fuse in the electric 250V).
- Page 27 PROBLEM CAUSE SOLUTION INTERVENTION Empty hopper Full the hopper. Auger blocked by a foreign object (for Clean the auger. example nails) The fire extinguish Bad quality pellets Try other types of pellets. and the stove stops Pellet drop value Adjust the pellet loading. too low "phase 1"...
- Page 28 PROBLEM CAUSE SOLUTION INTERVENTION The stove is at its Ambient tempera- The stove is at its minimum value. Increase the desired am- highest power but ture reached. bient temperature. does not heat up. Stove running and Reached fume display showing outlet limit tempe- The stove runs at minimum.
- Page 29 NOTE...
- Page 30 NOTE...
- Page 31 NOTE...
- Page 32 Rev. 03 - 2019 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Foresto sud, 7 - Italy Tel. +39.0438.738669 Fax +39.0438.73343...
