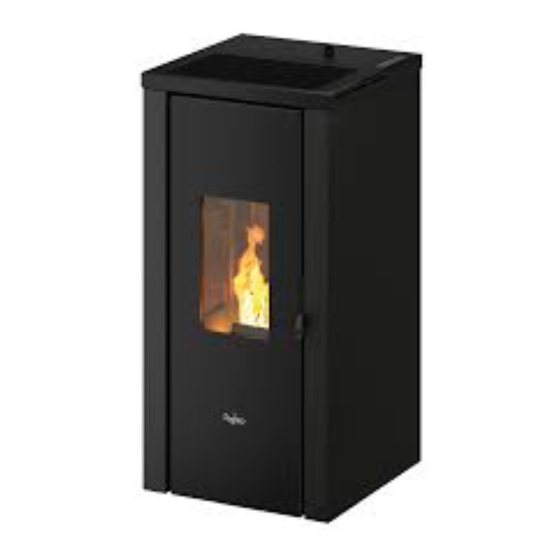

Cadel VERA 7.0 UP User Manual
Hide thumbs
Also See for VERA 7.0 UP:
- User manual (48 pages) ,
- Installer manual (28 pages) ,
- Installer manual (25 pages)
Table of Contents
Related Manuals for Cadel VERA 7.0 UP
Summary of Contents for Cadel VERA 7.0 UP
- Page 1 USER MANUAL Pellet Stove Original Instructions | ©2022 CADEL srl | All rights reserved - Tutti i diritti riservati VERA 7, 7.0, 7.0 UP - INDIGO EVO, INDIGO EVO 7 - LORD7, 7.0 - FLOYD 5.0 - FLOYD 7.0 - ELANE 9 - AMARANTO 9...
-
Page 2: Table Of Contents
12 SAFETY DEVICES AND ALARMS ....24 SUMMARY 12.1 PRESSURE SWITCH ..........24 1 MANUAL SIMBOLOGY ........3 12.2 SMOKE TEMPERATURE PROBE ......24 2 DEAR CUSTOMER ..........3 12.3 CONTACT THERMOSTAT IN THE FUEL HOPPER..24 2.1 REVISIONS TO THE PUBLICATION ......4 12.4 ELECTRICAL SAFETY ..........24 2.2 CARE OF THE MANUAL AND HOW TO CONSULT IT ...4 12.5 SMOKE FAN ............24 SAFETY REQUIREMENTS ......5... -
Page 3: Manual Simbology
2014/53/EU (RED - Radio Equipment directive) 2011/65/EU (ROhS) Hereby CADEL S.r.l. declares that the radio equipment type Easy Connect Plus + Navel Stand Alone is in compliance with Directive 2014/53/EU. According to (EU) No. 305/2011 regulation, the " Declaration of Performance" and "Declaration of Conformity" are available online,... -
Page 4: Revisions To The Publication
No part of this manual may be translated into other languages, adapted and/or reproduced, even in part, in other mechanical and/ or electronic form or media, for photocopies, recordings or other, without the prior written authorisation of CADEL S.r.l. The company reserves the right to make changes to the product at any time without prior notice. The owner company reserves its rights according to law. -
Page 5: Safety Requirements
SAFETY REQUIREMENTS • Installation, electrical connection, functional verification and maintenance must only be performed by qualified or authorised personnel. • Live electrical parts: disconnect the product from the 230V power supply before perfor- ming any maintenance operation. Only power the product after completing assembly. •... -
Page 6: Cautions - Warranty Conditions
experience and knowledge must be kept away from packaging. The stove IS NOT a toy. • Childreen must be constantly overseen in order to assure that they do not play with the appliance. • During its running, the stove reaches high temperatures: keep away childreen and animals and for your safety please use appropriate fireproof devices, such as heat-protecting gloves. -
Page 7: Warranty Conditions
WARRANTY CONDITIONS The duration, conditions and limitations of CADEL S.r.l. can be found on the guarantee card enclosed with the device. The company guarantees the product, with the exception of elements subject to normal wear listed below, for a period of 2 (two) years from the date of purchase attested by: •... -
Page 8: Spare Parts
tions and in accordance with the fee in force for the work to be carried out. The user will also be charged for any costs incurred to remedy the incorrect technical interventions, tampering or damage to the appliance, not attributable to original faults. Save for the legal or regulatory limits, the guarantee does not cover the containment of atmospheric and acoustic pollution. -
Page 9: Information For Management Of Electric And
LEGENDA WHERE TO DISPOSE MATERIALS Metal If there is any, to be disposed of separately based on Glass A. OUTER CLADDING the material used: Tiles or ceramics Stone Glass ceramic (fire door): to be disposed of with If there is any, to be disposed of separately based on inert or mixed waste B. -
Page 10: Wifi - Bluetooth Connection
DESCRIPTION CODE MATERIAL SYMBOL DIRECTIONS FOR COLLECTION SORTED waste collection - WOOD BED WOOD WOOD - WOOD CAGE Check with the competent body on FOR 50 - WOOD PALLET how to dispose of this packaging at the recycling depot SORTED waste collection - CARDBOARD BOX PAPER CORRUGATED CARDBOARD... -
Page 11: Use
Fig. 3 - NAVEL STAND ALONE module Fig. 4 - App EASY CONNECT PLUS The documentation for connecting the Wi-Fi and using the App are available online at the following addresses: https://www.cadelsrl.com/donwload-wi-fi/ http://www.free-point.it/it/downloads/ https://www.pegasoheating.com/it/documenti/ INTRODUCTION To have the best performance with the lowest consumption please follow the here descripted instructions. •... -
Page 12: Control Panel
Set values from 1 to 5 are defined by the manufacturer and they can be changed only by an authorized tech- nician. The product will be subject to expansion and contraction during the ignition and cooling stages, therefore slight creaking noises may be heard. This is perfectly normal as the structure is made of laminated steel and must not be considered a defect. -
Page 13: User Menu
REFERENCE SYMBOL DESCRIPTION LED ON POWER SETTING Power setting programming ON/OFF Work status CHRONO Chrono is enabled ALARM Stove is in alarm FEED SCREW ON Feed screw moving HEAT EXCHANGER Heat exchanger on SPARK PLUG Ignition spark plug USER MENU The following table briefly describes the menu structure;... - Page 14 LEVEL 1 LEVEL 2 LEVEL 3 VALUE 03 - stop 1 day oFF-0-23:50 03-StoP 1 dAyLy 04 - start 2 day oFF-0-23:50 04-StArt 2 dAyLy 05 - stop 2 day oFF-0-23:50 05-StoP 2 dAyLy M2-3 - Weekly programming M2-3 -ProGrAM uEEK 01 - week chrono on/oFF 01-crono uEEKLy...
- Page 15 LEVEL 1 LEVEL 2 LEVEL 3 VALUE 27 - Saturday Prg 3 on/oFF 27-SAtu PrG3 28 - Sunday Prg 3 on/oFF 28-Sund PrG3 29 - start Prg 4 oFF-0-23:50 29-StArt PrG4 30 - stop Prg 4 oFF-0-23:50 30-StoP PrG4 31 - Monday Prg4 on/oFF 31-Mond PrG4 32 - Tuesday Prg 4...
-
Page 16: Menu M1 - Clock Setting
LEVEL 1 LEVEL 2 LEVEL 3 VALUE 01 - First load 90" 01-LoAd initiAL M7 - Stove status M7 StAtE StoVE 01 - Stove status 01-StAtE StoVE 01 - Feed screw status info 02 - T minutes info 03 - Thermostat status info 04 - Flue gas status info... - Page 17 After selecting the M2 - 2 day program " ProGrAM dAy " menu, using the P3 button you will scroll through the various daily chrono programming parameters, including enabling it (see Fig. 9). Fig. 9 - Display: crono Two operating ranges can be set, the first with START1 Day "StArt 1 dAyLy " and STOP1 Day "StoP 1 dAyLy ", the second with START2 Day "StArt 2 dAyLy "...
-
Page 18: Menu M3 - Language Selection
PROGRAM 3 MENU LEVEL SELECTION MEANING POSSIBLE VALUES M2-3-20 StArt PrG3 activation time off-0-23:50 M2-3-21 StoP PrG3 deactivation time off-0-23:50 M2-3-22 Mond PrG3 on/off M2-3-23 tuES PrG3 on/off M2-3-24 uEdn PrG3 on/off M2-3-25 tHur PrG3 reference day on/off M2-3-26 Frid PrG3 on/off M2-3-27 SAtu PrG3... -
Page 19: Menu M5 - Buzzer
Fig. 11 - Display: stand-by 8.3.5 Menu M5 - BUZZER Allows you to enable or disable the buzzer of the controller when alarms are indicated (see Fig. 12). Enable or disable with buttons P1 or P2, and confirm with P3. Fig. -
Page 20: Menu M9 - Pellet Type
8.3.9 Menu M9 - PELLET TYPE It allows you to adjust the quality of combustion and the flame based on the fuel quality or draft of the flue (see Fig. 16). Thanks to this adjustment the fuel supply in the burn pot may be modified by an amount between -18% and +18% (value from -9 = -18% to +9 = +18%). -
Page 21: Failed Ignition
Fig. 19 - Display FAILED IGNITION If the pellets do not burn, the failed ignition will be indicated by the alarm AL 5 FAILED IGNITION " AL 5 ALAr no LiGHtin ". If the room temperature is lower than 10°C, the plug is not able to bear the ignition stage. To support it please insert some pellets in the burning pot and a piece of burning firelighter igniter material on the pellets (for example firelighters cubes). -
Page 22: Pellet Supply
Humid pellets cause a bad combustion and running, so please assure you that they are stored in dry places and far at least one meter from the stove and/or any other source of heat. • It is advisable to try different type of pellets available on the market and to choose that which gives the best performance. •... -
Page 23: Ventilation
Fig. 22 - Door open Fig. 23 - deteriorated gasket Fig. 24 - Timer: 90 seconds To operate correctly, the stove must work with the pellet hopper door always closed; should it remain open for more than 90 seconds, the stove switches off. •... -
Page 24: Safety Devices And Alarms
Fig. 26 - Remote control LEGEND Fig. 26 Button 1 Increase the desired temperature (5÷35 °C) Button 2 Decrease the desired temperature (35÷5 °C) Button 3 On / off Button 4 Menu Button 5 Decrease the power level from 5 to 1 Button 6 Increase the power level from 1 to 5 SAFETY DEVICES AND ALARMS... -
Page 25: Blackout With The Boiler On
12.9 BLACKOUT WITH THE BOILER ON In the event of a power cut BLACK-OUT "blAc-out " the boiler behaves as follows: • Blackout below 5”: it returns to its operation in progress; • In the event of a power cut that lasts over 5” with the boiler on or in the start-up stage, when the boiler is powered again it goes back to the previous operating condition with the following procedure: It performs a cooling phase to the maximum. -
Page 26: Failed Ignition Alarm
12.13 FAILED IGNITION ALARM It occurs when the ignition phase fails. The message Al 5 alar al 5 Failed ignition "AL 5 ALAr no LiGHtin" scrolls on the display and the stove goes into alarm status (see Fig. 31). Fig. 31 - Display: AL 5 12.14 NO PELLET ALARM It occurs when in the working phase, the flue gas temperature drops below a specific fixed parameter. -
Page 27: Alarm Alerts
12.17 ALARM ALERTS Whenever an operating condition other than that designed for the regular operation of the boiler occurs, there is an alarm condi- tion. The control panel gives information on the reason of the alarm in progress. ALARM CAUSE SOLUTION INTERVENTION AL 1 - BLACK... - Page 28 ALARM CAUSE SOLUTION INTERVENTION Empty hopper Fill the hopper. The burning pot has not Clean the burning pot. been cleaned The ignition threshold has Clean the burning pot and switch the stove on again. not been reached Faulty ignition plug Replace the ignitor resistance.
-
Page 29: Alarm Reset
ALARM CAUSE SOLUTION INTERVENTION The exhaust chimney is partially or totally obstructed. Call en Obstructed exhaust expert stove-repairer who executes a check from the exhaust up to the chimney pot. The pellet can burn also thanks to the chimney flue depression without the aid of the fan. -
Page 30: Before Each Start-Up
All these operations must be planned in time with your Autorized Technical Assistance Service. • After a long ineffective time, before turning on the stove check if there are obstructions in the fume exhaust. • If the stove had been using continuously and intensely, the whole system (chimney included), must be cleaned and checked more frequently. -
Page 31: Hopper Cleaning
Fig. 39 - Burning pot box cleaning Fig. 40 - Cleaning with a brush • Clean and drain away the burning pot box and ash tray box from ash which has accumulated in its inner (see Fig. 39). • Clean also the hole for pellet drop with a brush (see Fig. 40). •... -
Page 32: Gasket Replacement
13.9 GASKET REPLACEMENT In case of deterioration of fire door, hopper or fume chamber gaskets, it is necessary to replace them by an autorized technician in order to guarantee the good running of the stove. Use exclusively original spare parts. 13.10 GLASS CLEANING The glass-ceramic of the fire door is able to stand till 700°C but not to thermal shocks. -
Page 33: In Case Of Anomaly
USER/TECHNI- 15/20 PARTS/FREQUENCY 1 DAY 2-3 DAYS 7 DAYS 1 YEAR CIAN DAYS Brazier UNDER THE USER'S Ash compartment ** RESPONSIBILITY Glass Upper exchanger Lower exchanger BY THE QUALIFIED Smoke duct TECHNICIAN Gaskets Door closure operation ** Emptying of the ash compartment depends on various factors (pellet type, stove power, stove use, type of installation...); the exact emptying time will be suggested by experience. - Page 34 PROBLEM CAUSE SOLUTION INTERVENTION Empty hopper Full the hopper. Open fire door or Close fire door and pellet door and check that there are no pellet open pellet door grains at the gasket level. Clogged stove Fume chamber cleaning Pellets do not reach the combustion chamber Auger blocked by a...
- Page 35 PROBLEM CAUSE SOLUTION INTERVENTION Check as following: probable obstructions of the combustible air Not sufficient com- inlet from the back or from the bottom of the stove; burning pot bustion air obstructed holes with too ash remains. Have the fan blades and auger cleaned.
-
Page 36: Technical Documentation For Local Space Heaters According To Commission Regulations (Eu) 2015/1185 - (Eu) 2015/1186 (Product Fiche)
COMMISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FI- CHE) Manufacturer CADEL srl - Via Foresto Sud 7 - 31025 Santa Lucia di Piave (TV) - Italy CADEL: SWEET3 7.0 - PERLA3 7.0 - CRISTAL 7.0 FREEPOINT: ONE AIRTIGHT - BEAM AIRTIGHT - ACCENT AIRTIGHT - AC-... - Page 37 TECHNICAL DOCUMENTATION FOR LOCAL SPACE HEATERS ACCORDING TO COM- MISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FICHE) CADEL srl - Via Foresto Sud 7 - 31025 Santa Lucia di Piave (TV) - Italy Manufacturer CADEL: CRISTAL3 7.0 UP Trademak: model identifier FREEPOINT: SHARP AIRTIGHT-LEE AIRTIGHT PEGASO:VERA 7.0 UP...
- Page 38 TECHNICAL DOCUMENTATION FOR LOCAL SPACE HEATERS ACCORDING TO COM- MISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FICHE) CADEL srl - Via Foresto Sud 7 - 31025 Santa Lucia di Piave (TV) - Italy Manufacturer CADEL: SOUND3 5 UP Trademak: model identifier FREEPOINT: CHROME5 AIRTIGHT- ROUND5 AIRTIGHT PEGASO: FLOYD 5.0...
- Page 39 TECHNICAL DOCUMENTATION FOR LOCAL SPACE HEATERS ACCORDING TO COM- MISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FICHE) CADEL srl - Via Foresto Sud 7 - 31025 Santa Lucia di Piave (TV) - Italy Manufacturer CADEL: SOUND3 7 UP Trademak: model identifier FREEPOINT: CHROME7 AIRTIGHT- ROUND7 AIRTIGHT PEGASO: FLOYD 7.0...
- Page 40 TECHNICAL DOCUMENTATION FOR LOCAL SPACE HEATERS ACCORDING TO COM- MISSION REGULATIONS (EU) 2015/1185 - (EU) 2015/1186 (PRODUCT FICHE) CADEL srl - Via Foresto Sud 7 - 31025 Santa Lucia di Piave (TV) - Italy Manufacturer CADEL: CRISTAL 9 T1 Trademak: model identifier...
- Page 41 NOTE...
- Page 42 NOTE...
- Page 43 NOTE...
- Page 44 Rev. 00 - 2022 CADEL srl www.cadelsrl.com 31025 S. Lucia di Piave - TV www.free-point.it Via Foresto sud, 7 - Italy www.pegasoheating.com Tel. +39.0438.738669 Fax +39.0438.73343...
