Intermec EasyCoder PM4i Installation Instructions Manual page 14

10
2

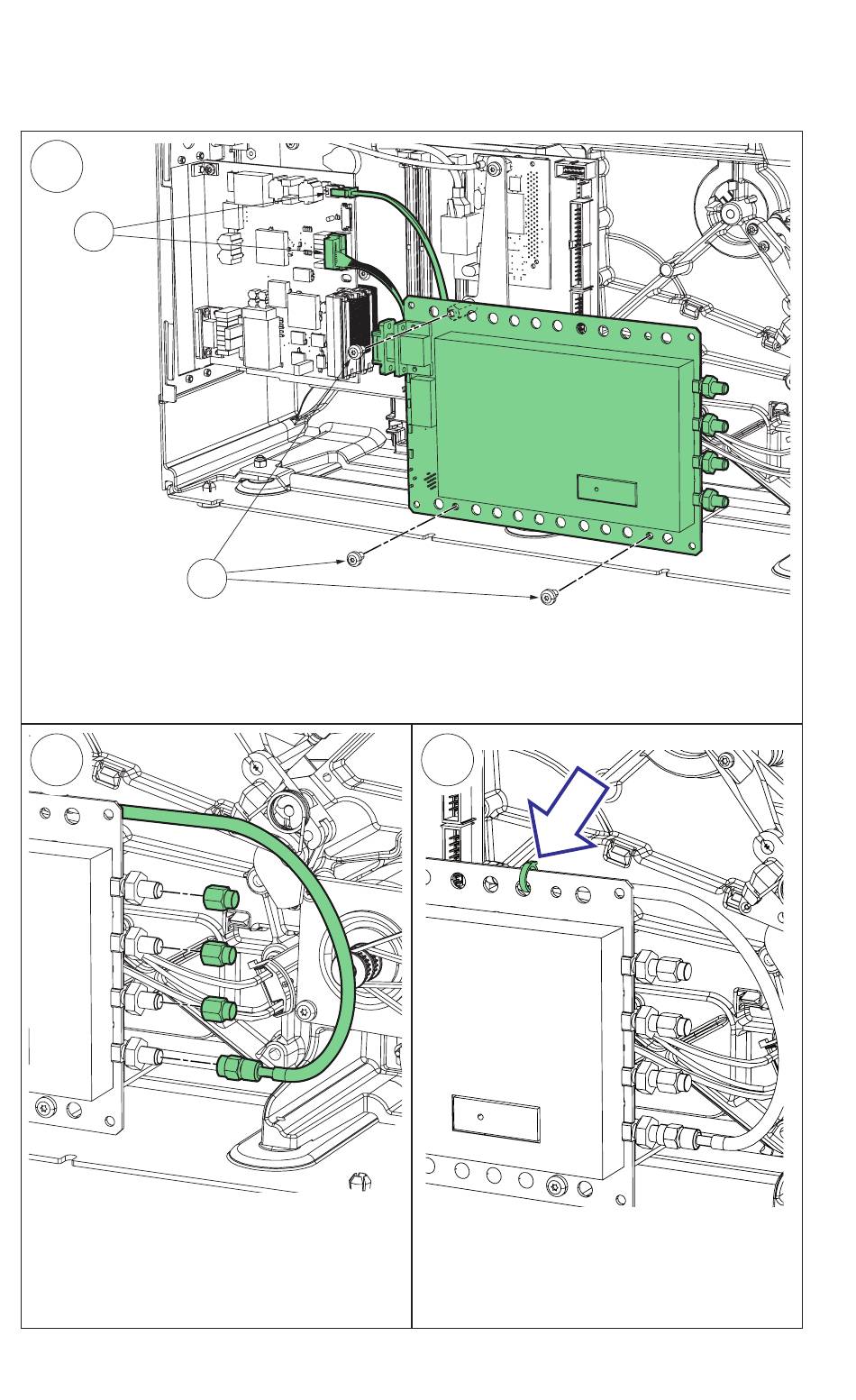

Attach the IM5 reader module to the bracket assy using three M4x6 screws and a
20 mm spacer screw (1). Connect the IM5 power cable to connector P3, and the
IM5 data cable to connector P4 on the I/O board (2).
11
Connect the adapter cable to the
radio module. Important: Use the
SMA termination plugs to plug the
remaining, unused outlets.
X
8
1
Y
Z
RFID Kit (Gen 2, 869/915 MHz) Installation Instructions
12
Use the cable tie to attach the loose end
of the adapter cable to the side of the
IM5 reader module.
