JTAG Hardware Setup
Perform the following steps to connect the Olimex and Tag-Connect adapters to the xPico 200
Evaluation Kit.

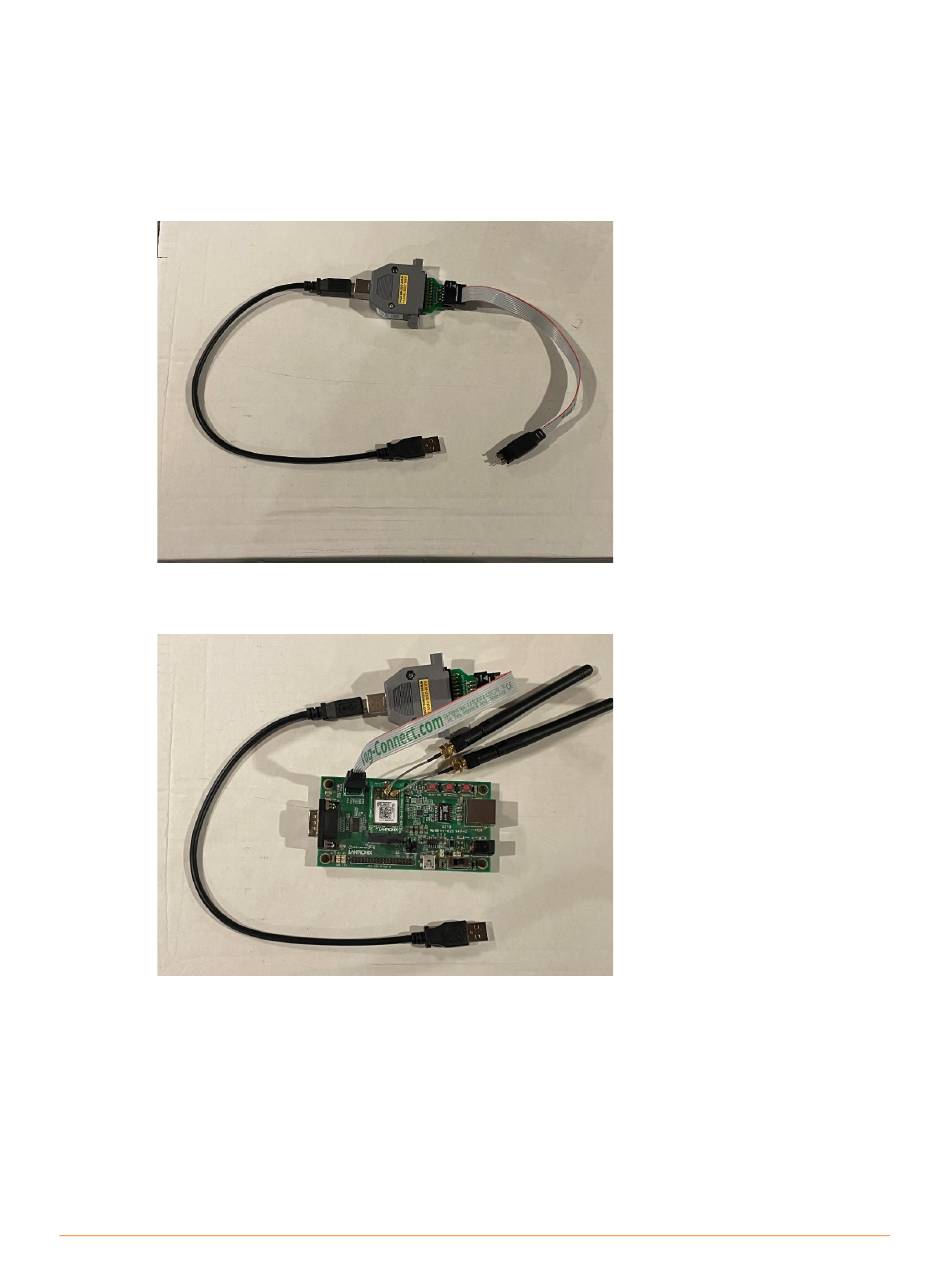

1. Connect the Olimex and Tag-Connect adapters to the USB cable as shown in the image
below. Note that the grey ribbon cable 10-pin and PCB 20-pin adapter are keyed which will
prevent any mistakes in assembly.
2. Using the xPico 200 Series Eval Kit, plug the Tag-Connect grey cable JTAG connector into
J1 of the Evaluation Kit as shown below. This is a keyed (2-pins on one end and 1 on the
other end) connection to ensure that mistakes are not made.
xPico 200 Series - JTAG Programming
5
