Rockwell Automation Allen-Bradley SMC Dialog Plus Quick Start Manual page 10

Quick Start
3-Phase
Input Power
97 A and 135 A
Factory Set
110/120V AC
1
To
Supply
2
Jumpers
3
4
10

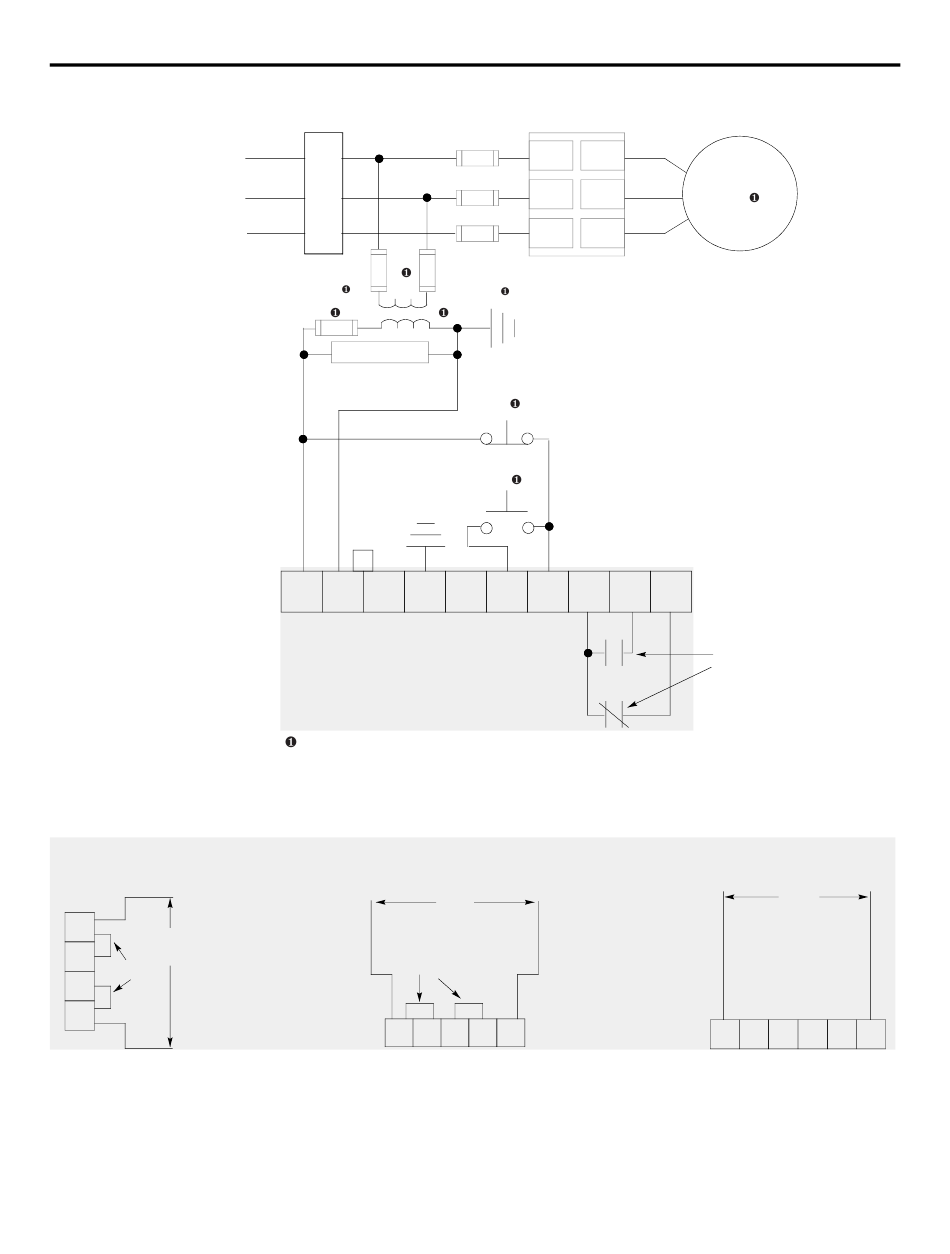

Figure 2 - Typical Wiring Diagram
Fast-acting
Branch
SCR Fuses
Protection
(optional)
Fan Power Terminals
(97...1000 A)
11 12 13 14 15
SMC Dialog Plus
Control Terminals
Customer supplied.
Figure 3 - Heatsink Fan Wiring
180...500 A
Factory Set
110/120V AC
To
Supply
Jumpers
1 2 3
Refer to Chapter 3 of the SMC Dialog Plus Controller User Manual (Publication
150-5.3) for optional 220/240V AC fan power connections and other sample
wiring diagrams. Chapter 7 of Publication 150-5.3 also provides typical wiring
diagrams for the control options (for example, Pump Control).
Rockwell Automation Publication 150-QS002B-EN-P - October 2011
L1/1 T1/2
L2/3 T2/4
L3/5 T3/6
SMC Dialog Plus
Controller
Stop
Start
16 17 18 19
4 5
M
20
Internal
Auxiliary
Contacts
650...1000 A
Factory Set
110/120V AC
To
Supply
1 2 3 4 5 6
