Geokon GK-604D Quick Start Manual

Document Revision: D | Release Date: 8/1/22
Model GK-604D
Digital Inclinometer System
Quick Start Guide
1.

INTRODUCTION

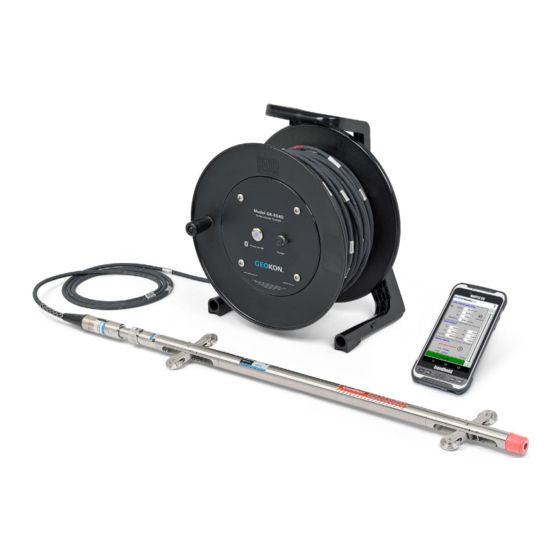

The GK-604D Digital Inclinometer System is made up of four components: An
Inclinometer Probe, the Readout Unit, the Remote Module, and a Pulley
Assembly (Figure 1).

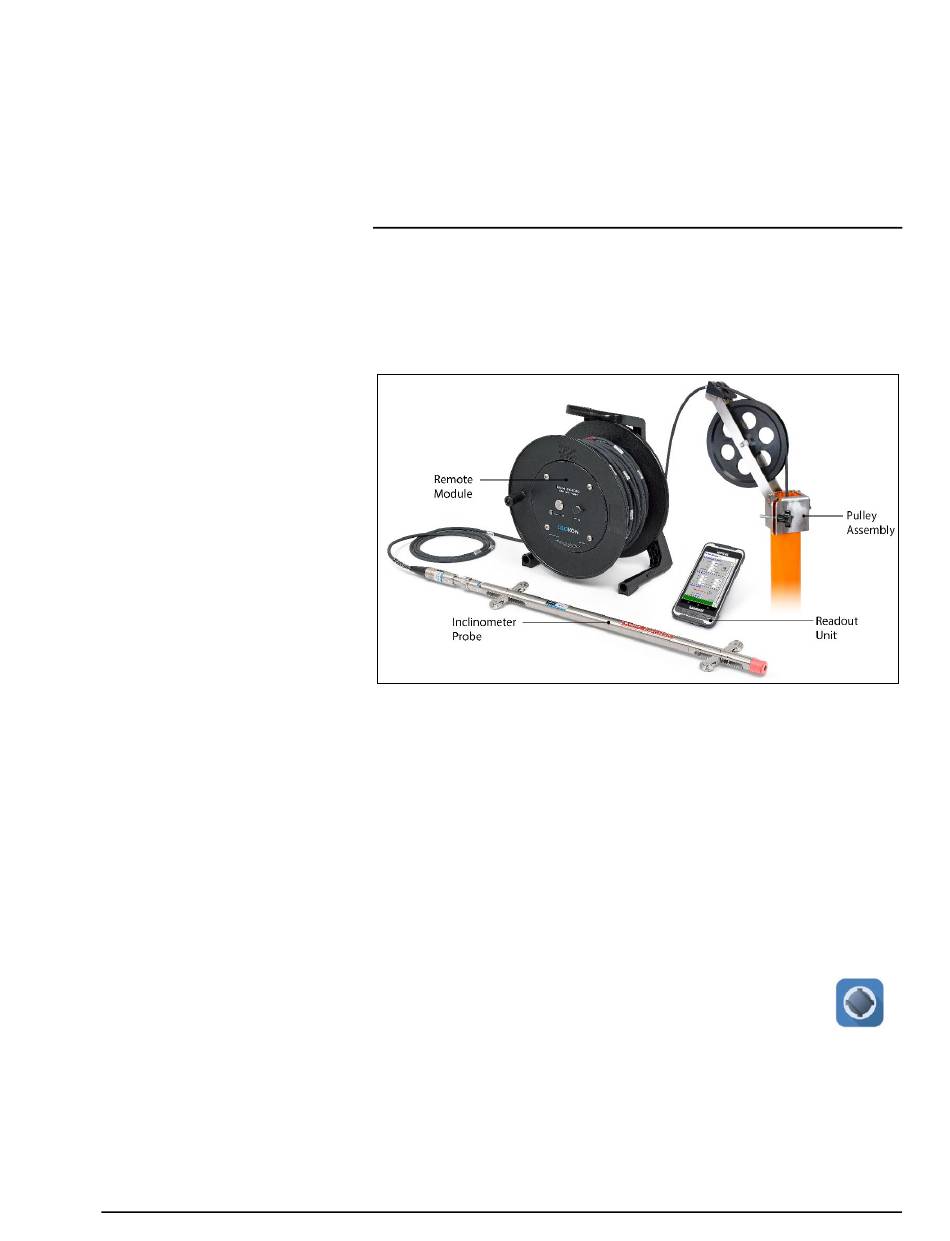

Figure 1: Model GK-604D Digital Inclinometer System
makes every effort to ensure that the GK-604D system is completely set
GEOKON
up and working before it leaves the factory. If using an Android device that was
not provided by GEOKON as the readout unit, refer to the GK-604D instruction
manuals for information on how to install the GK-604D Reader Application and
pair the device with the Remote Module.
For more detailed information than is provided in this Quick Start Guide, please
refer to the Model GK-604D Instruction Manuals.
2. STARTING THE GK-604D READER APP THE FIRST
TIME
Begin by powering on the readout unit. The GK-604D readout
software is launched by entering the Android Apps drawer and then
selecting the GK-604D Reader icon (shown right).
When starting the application for the first time, the user will be prompted to
grant certain permissions. Tap "ALLOW" to grant the permissions and open the
application. (Tapping "DENY" will cause the application to close.)
After file access permission is granted, the Main Screen is shown
MODEL GK-604D DIGITAL INCLINOMETER SYSTEM | QUICK START GUIDE | 1
( ).
Figure 2
