Geokon GK-406 Quick Start Manual

GK-406-MUX
VW Analyzer Load cell multiplexer - Quick Start Guide
1

SETUP

1. Remove the protective silicon cover from the multiplexer and install the AA alkaline batteries (2) into the rear battery
compartment.
2. Install the multiplexer back into the protective silicon cover.
3. Connect the VW Analyzer to the multiplexer using the supplied cable.
4. Connect the load cell to the multiplexer.

OPERATION (USING THE VW ANALYZER)

1. Press the power button just under the left side of the readout screen on the VW Analyzer.
2. Select or add a user and the home screen is displayed.
3. Select Read & Record and then Site/Sensor to get a load cell reading.
4. Select the load cell location or add a new location. There is an option add a default sensor to the new location.
5. Select Next and then select the specific load cell model to be used or add the information as a new sensor.
6. Select Read and the readout screen is displayed.
7. Select Details in the readout screen to show more data. Select Gauge from the details screen to toggle between the average
of all the vibrating wire sensors measurements in the load cell and the individual measurements of each sensor. Spectrum
and Time graphs are also available from the Details screen.
Document Revision: A | Release date: 03/9/22

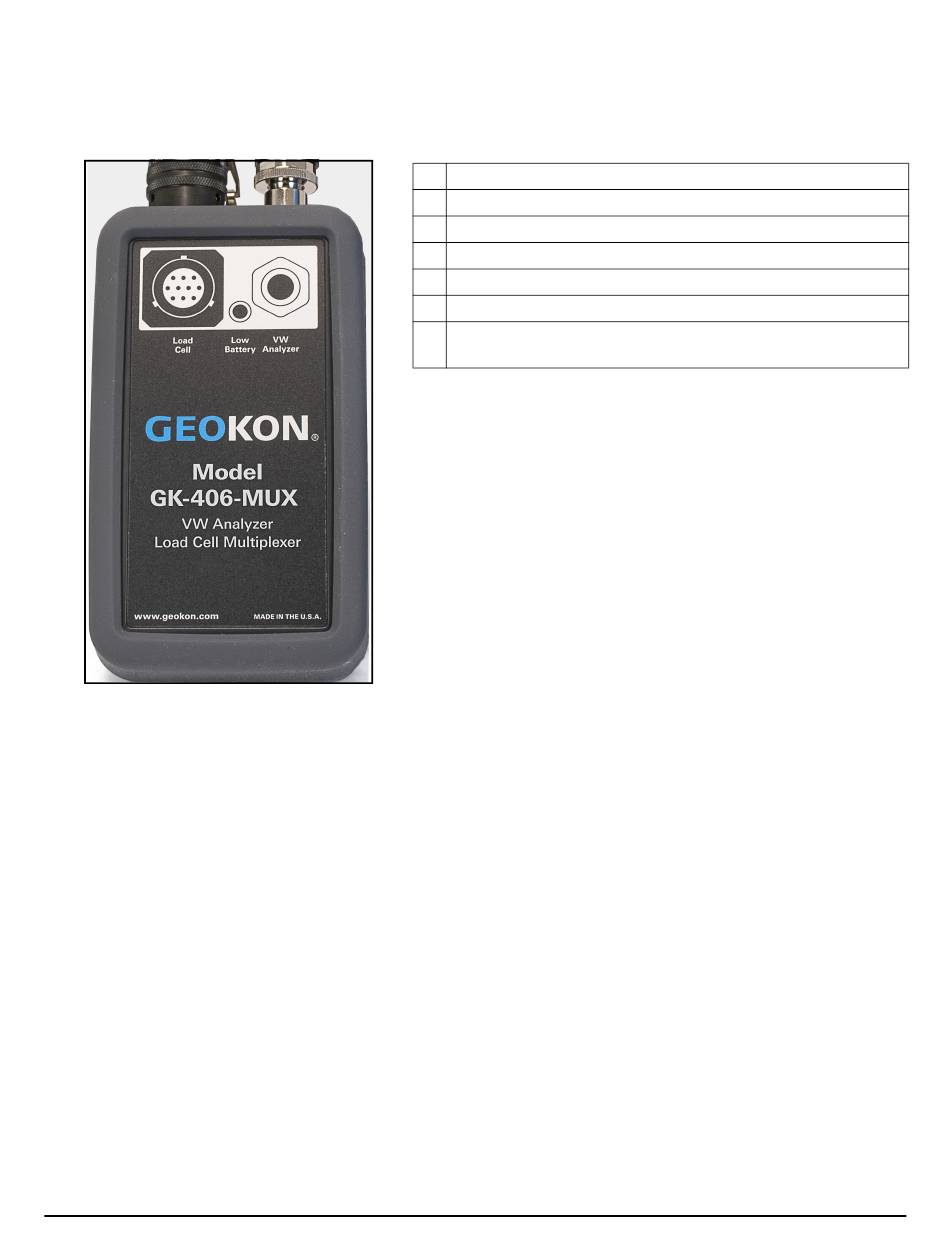

1:
2 3

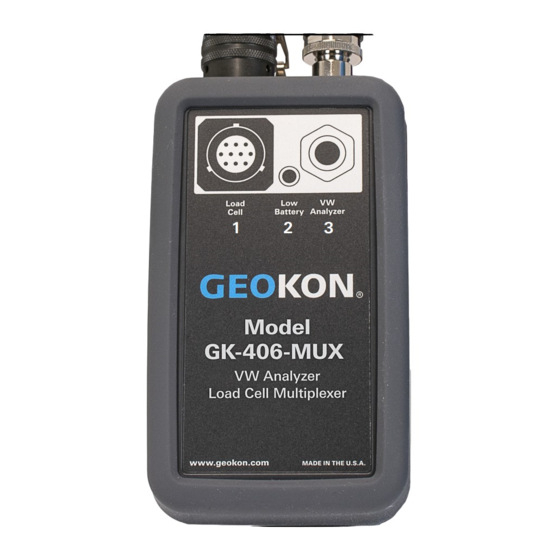

1 Single 10-pin connector for load cell connection
2 Low battery indicator
3 2m VW Analyzer connector cable (included)
Power: (2) AA alkaline batteries (included)
2m VW Analyzer connector cable (included)
IP-40 rated case with silicone protective cover
Multiplexes all Geokon 3, 4 and 6 gauge VW load cells to use
the GK-406 VW Analyzer
GK-406-MUX - VW ANALYZER LOAD CELL MULTIPLEXER | QUICK START GUIDE
