HySecurity UL 325-2016 Quick Start - Supplemental Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HySecurity Gate Operators
3
Trailing End

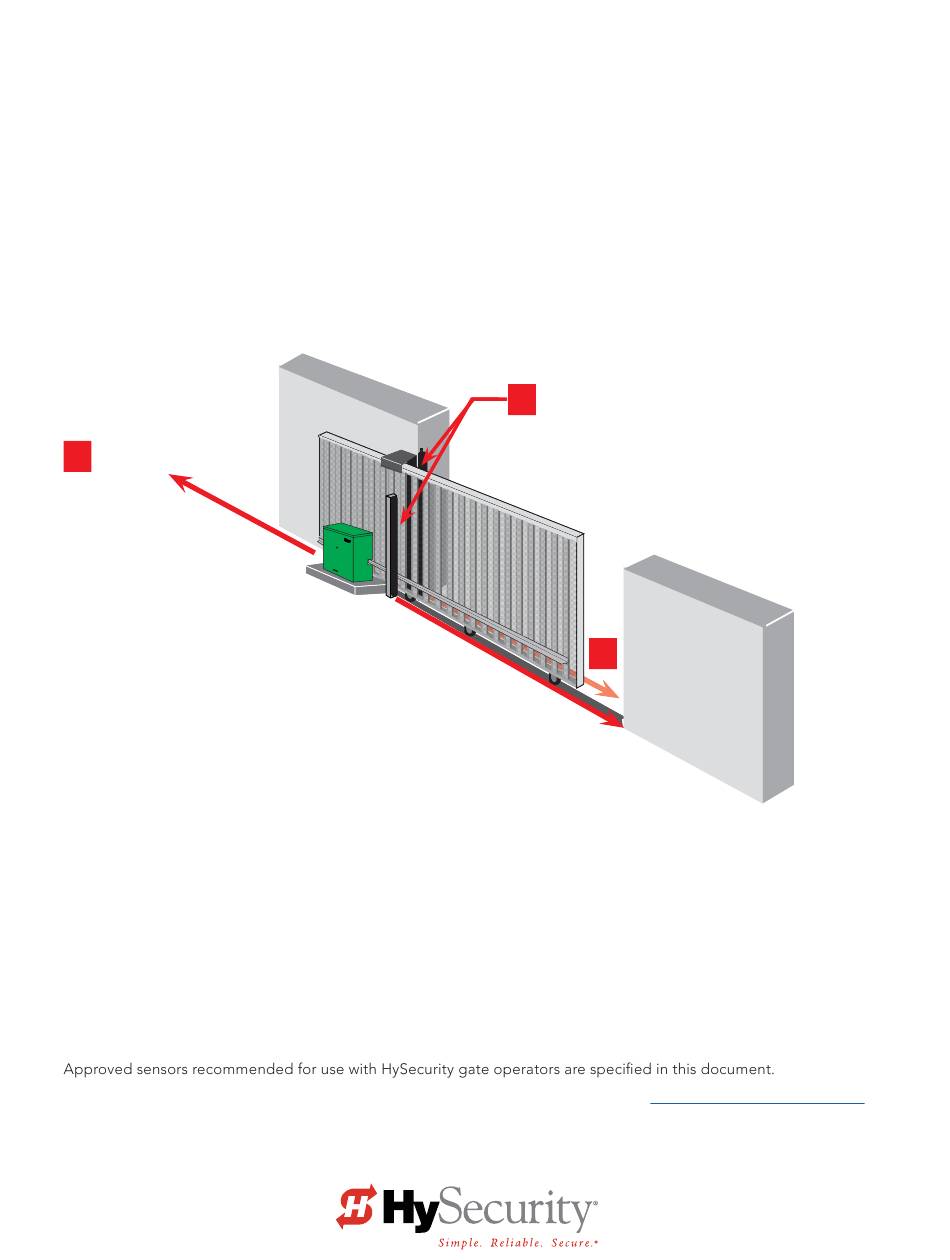

Zones requiring Entrapment Protection
1. Draw-in zones
2. Leading end
3. Trailing end
Quick Start - Supplement
This document supplies site planning scenarios and reference tables that help explain the UL 325-2016 requirements for
monitoring of external entrapment protection sensors. HySecurity is monitoring Normally Closed (NC) sensors to conform to
UL 325 monitored entrapment protection requirements.
For more information regarding UL 325-2016, refer to the HySecurity website section:
UL 325 Standard For Safety
Protection Against Entrapment
UL 325 – 2016
Secure side
Draw-in Zones
1
Edge sensors protect areas of
entrapment along posts or walls
2
Revision C
Pu
ublic side
Leading End
www.hysecurity.com/gatesafety

Advertisement

Table of Contents
loading

Related Manuals for HySecurity UL 325-2016

Summary of Contents for HySecurity UL 325-2016

  • Page 1 Quick Start - Supplement Revision C This document supplies site planning scenarios and reference tables that help explain the UL 325-2016 requirements for monitoring of external entrapment protection sensors. HySecurity is monitoring Normally Closed (NC) sensors to conform to UL 325 monitored entrapment protection requirements.

  • Page 2: Important Safety Information

    PECIFIC TO ONITORED NTRAPMENT The following is found in HySecurity Programming and Operations Manuals, but re-iterated here. Before installing the gate operator: Mount access control devices beyond reach of the gate. The control devices that operate the gate must: •...

  • Page 3: Table Of Contents

    Contents ..................2 MPORTANT AFETY NFORMATION ....................2 ..................4 ECURITY PERATORS ......4 Table 2: HySecurity Gate Operators maintaining Object Detection ................4 .......5 ................6 ABEL HANGES TO ONTROLLER NPUTS ............7 OFTWARE ANDLES ONITORED NTRAPMENT ....................7 ................8 HAT THE NSTALLER EEDS TO ....................9 ..........................10 &...

  • Page 4: Hysecurity Gate Operators

    • Build Year (BY) - An added menu item distinguishes between pre-2016 manufacturing dates and post-2016 manufacturing dates. Build Year (BY) is a factory-setting. Build Year 2 (BY 2) is the default for all HySecurity gate operators indicating a manufacturing date of 2016 in the serial number.
  • Page 5 Table 3: External Entrapment Protection Sensors Approved for Use with HySecurity Gate Operators The site designer or installer must determine which external entrapment protection sensors will be installed with the gate operator to create a UL 325 compliant installation site.

  • Page 6: Label Changes To Controller Inputs

    Used on replacement boards for gate operators manufactured prior to 2016. Post 2016 Label Build Year (BY 2) MX3978-01 Temporary use on existing inventory. Keypad and Display © 2016 www.hysecurity.com D0726 Rev. C UL 325 - 2016 HySecurity Monitored Sensors...
  • Page 7 ANDLES ONITORED NTRAPMENT Since HySecurity gate operators use software to control gate movement, contacts, and accessories, the changeover to monitored sensors is simple. In fact, the ability to monitor sensors has always been an available Installer Menu item. (Refer •...

  • Page 8: Hat The Nstaller Eeds To

    SENSOR 3 SENSOR COM CAUTION Assess Your Gate Site. Design your gate installation so entrapment zones are kept to a minimum, and then install your HySecurity gate operator. Draw-in zone Photo eye thru beam protecting Trailing End Install NC sensors.
  • Page 9 Installer Menu Settings for STC & SDC Sensors 1, 2, or 3 (solo operators) HySecurity Gate Year Operator 2016 DISABLED EDGE EDGE (BY set) SlideDriver SlideDriver VFD SlideSmart DC 15 SlideSmart DC 10 SwingRiser SwingSmart DC HydraSwing HydraLift NOTE: www.hysecurity.com © 2016 Quick Start D0726 Rev. C...
  • Page 10 Table 6: Setting the Sensor Logic External entrapment protection sensors can be wired to any one of the three sensor inputs on the HySecurity Controller. The sensor logic, such as Eye Close Logic (EC), Eye Open Logic (EO) and Gate Edge Logic (GR) remain accessible in the Installer Menu, if the corresponding sensor type is installed, and determines how the gate operator will react when a monitored sensor is activated.

  • Page 11: Site Assessment & Gate Design For Monitored Entrapment

    It is up to the gate system designer and installer to assess appropriate safety design and components above and beyond minimum www.hysecurity.com © 2016 Quick Start D0726 Rev. C...
  • Page 12 Type D – Actuating device requiring continuous pressure to maintain opening or closing motion of the gate. The changes that occurred to HySecurity software and discussed on the previous pages are based on compliance with the UL 325 -2016 Standard of Safety.
  • Page 13 Monitored external entrapment protection sensors, which can be used in this site scenario and are compatible with HySecurity slide gates, appear in the following chart. For a full list, see page 5. EXAMPLE: External Entrapment Protection Sensors: Normally Close Contact, Compatible with HySecurity Gate Operators...
  • Page 14 Smart DC Controller (SDC) inputs are similar to the STC. See page 7. The SDC has a different display, but needs to be programmed in a similar fashion as the STC. NOTE: used to protect both open and close directions of gate travel. © 2016 www.hysecurity.com D0726 Rev. C UL 325 - 2016 HySecurity Monitored Sensors...
  • Page 15 Monitored external entrapment protection sensors, which can be used in this site scenario and are compatible with HySecurity swing gates, appear in the following chart. For a full list, see page 5. EXAMPLE: External Entrapment Protection Sensors: Normally Close Contact, Compatible with HySecurity Gate Operators...
  • Page 16 STC. An example of a site overview for the SwingSmart DC is shown on page 15. NOTE: be used to protect both open and close directions of gate travel. © 2016 www.hysecurity.com D0726 Rev. C UL 325 - 2016 HySecurity Monitored Sensors...
  • Page 17 16 inches (406 mm), and does not have a pinch point between moving parts by virtue of the operator’s design or Safety is not required to be provided with means to protect against entrapment. HySecurity barrier arms provide features for object detection. For more information, refer to the gate operator’s product manual.
  • Page 18 SENSOR inputs default to normally closed contacts • • Gate will run with all SENSOR inputs set to “NOT USED” NOTE: of all 3 monitored input designations before allowing the gate to move. © 2016 www.hysecurity.com D0726 Rev. C UL 325 - 2016 HySecurity Monitored Sensors...
  • Page 19 Monitored external entrapment protection sensors, which can be used in this site scenario and are compatible with HySecurity vertical lift gates, appear in the following chart. For a full list, see page 5. EXAMPLE: External Entrapment Protection Sensors: Normally Close Contact, Compatible with HySecurity Gate Operators...
  • Page 20 Smart DC Controller (SDC) inputs are similar to the STC. See page 7. The SDC has a different display, but needs to be programmed in a similar fashion as the STC. NOTE: vertical lift gates must be used to protect the close direction of gate travel. © 2016 www.hysecurity.com D0726 Rev. C UL 325 - 2016 HySecurity Monitored Sensors...
  • Page 21 S2 5 (EDGE OPEN) SENSOR #2 TYPE PREV NEXT SELECT S3 7 (EYE BOTH) OPEN CLOSE STOP MENU RESET SENSOR #3 TYPE PREV NEXT SELECT OPEN CLOSE STOP MENU RESET PREV NEXT SELECT www.hysecurity.com © 2016 Quick Start D0726 Rev. C...
  • Page 22 SENSOR #3 TYPE SENSOR #3 TYPE PREV NEXT SELECT PREV NEXT SELECT OPEN CLOSE STOP MENU RESET OPEN CLOSE STOP MENU RESET PREV NEXT SELECT SELECT PREV NEXT © 2016 www.hysecurity.com D0726 Rev. C UL 325 - 2016 HySecurity Monitored Sensors...

  • Page 23: Photo Eye Alignment

    LIGNMENT PE 1 (ON) Most photo eyes require careful optical alignment in order to aim the emitter beam to PHOTO EYE ALIGN that end, HySecurity has provided a unique feature that turns photo eye power ON and OPEN CLOSE STOP...
  • Page 24 2. Upload the latest software release. If the fail does not go away, contact Technical Support. NOTE: For a more extensive list of error codes, refer to your gate operator’s product manual. © 2016 www.hysecurity.com D0726 Rev. C UL 325 - 2016 HySecurity Monitored Sensors...

  • Page 25: Wiring Diagrams

    UL 325 compliant installation site. NOTE: installed together for external entrapment protection to be properly monitored. External Entrapment Protection Sensors: Normally Close Contact, Compatible with HySecurity Gate Operators UL 325 2016 Monitored Sensors Sensor Type Output...
  • Page 26 DO NOT USE CHARGER AC LOSS HySecurity LOCK INTERLOCK MX000585 VERSION EMERG CLOSE FIRE DEPT OPEN Smart Touch Controller RADIO OPTIONS LIMIT DUAL GATE OPEN +24V +24V *NOTE: NOTE: © 2016 www.hysecurity.com D0726 Rev. C UL 325 - 2016 HySecurity Monitored Sensors...
  • Page 27 DO NOT USE CHARGER AC LOSS HySecurity LOCK INTERLOCK MX000585 VERSION EMERG CLOSE FIRE DEPT OPEN Smart Touch Controller LIMIT DUAL GATE RADIO OPTIONS OPEN +24V +24V *NOTE: NOTE: Drawing is not to scale. www.hysecurity.com © 2016 Quick Start D0726 Rev. C...
  • Page 28 DO NOT USE CHARGER AC LOSS HySecurity LOCK INTERLOCK MX000585 VERSION EMERG CLOSE FIRE DEPT OPEN Smart Touch Controller LIMIT DUAL GATE RADIO OPTIONS OPEN +24V +24V NOTE: © 2016 www.hysecurity.com D0726 Rev. C UL 325 - 2016 HySecurity Monitored Sensors...
  • Page 29 RADIO OPTIONS OPEN +24V +24V NOTE: All other input channels may be configured to either A or B. NOTE: If different sensor types are connected to the same output, then program the Controller www.hysecurity.com © 2016 Quick Start D0726 Rev. C...
  • Page 30 HySecurity LOCK INTERLOCK MX000585 VERSION EMERG CLOSE FIRE DEPT OPEN Smart Touch Controller LIMIT DUAL GATE RADIO OPTIONS OPEN +24V +24V NOTE: Drawing is not to scale. © 2016 www.hysecurity.com D0726 Rev. C UL 325 - 2016 HySecurity Monitored Sensors...
  • Page 31 FIRE DEPT OPEN Green Smart Touch Controller LIMIT DUAL GATE RADIO OPTIONS OPEN +24V +24V Wireless Edge Link (Receiver) MGL - R20 Signal received from battery- NOTE: powered Transmitter (MGL - TX20) www.hysecurity.com © 2016 Quick Start D0726 Rev. C...
  • Page 32 Smart Touch Controller LIMIT DUAL GATE RADIO OPTIONS OPEN +24V +24V NOTE: Drawing is not to scale. & White Wires Green Wires* *Green output wire can attach to any © 2016 www.hysecurity.com D0726 Rev. C UL 325 - 2016 HySecurity Monitored Sensors...
  • Page 33 Page intentionally left blank...
  • Page 34 Page intentionally left blank...
  • Page 35 1. Warranty. Hy-Security Gate, Inc. (“HySecurity”) warrants that at the time of sale each of its prod- in advance of the change (this exclusion does not apply to normal installation of approved accessories and/or protective devices or sensors). It is the responsibility free from defects in material and manufacture.

  • Page 36: Ecurity Ontact Nformation

    Additionally, HySecurity Gate, Inc. makes no representations or warranty with respect to this manual. We also reserve the right to make changes in the products described without notice and without any obligation to notify any persons of any such revision or change.
