6.2 Discharge Voltage - Time curve

Sample 12V battery cell
Status From fully Charged (100%) to protection (20%)
X axis Discharging time (h)
Y axis Discharging voltage (V)
Remark This figure represents theoretical values which are only for reference. The battery life
varies upon the actual charging and discharging currents.

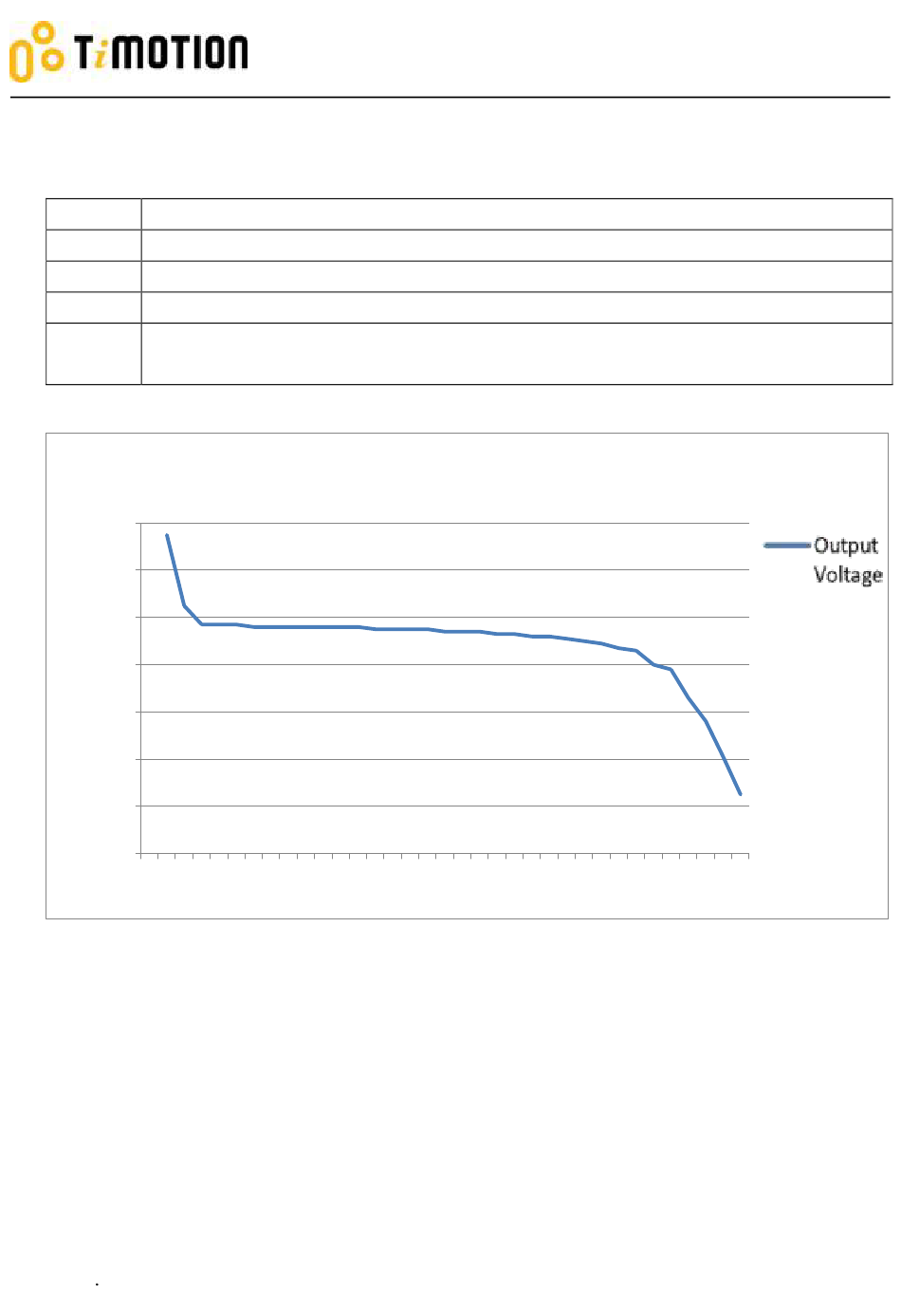

TBB5 discharge voltage-time curve(1C)
28.00
27.50
26.00
24.00
22.00
20.00
18.00
16.00
14.00
0 1 2 4 6 8 10121416182022242628303234363840424446485052545658606263
