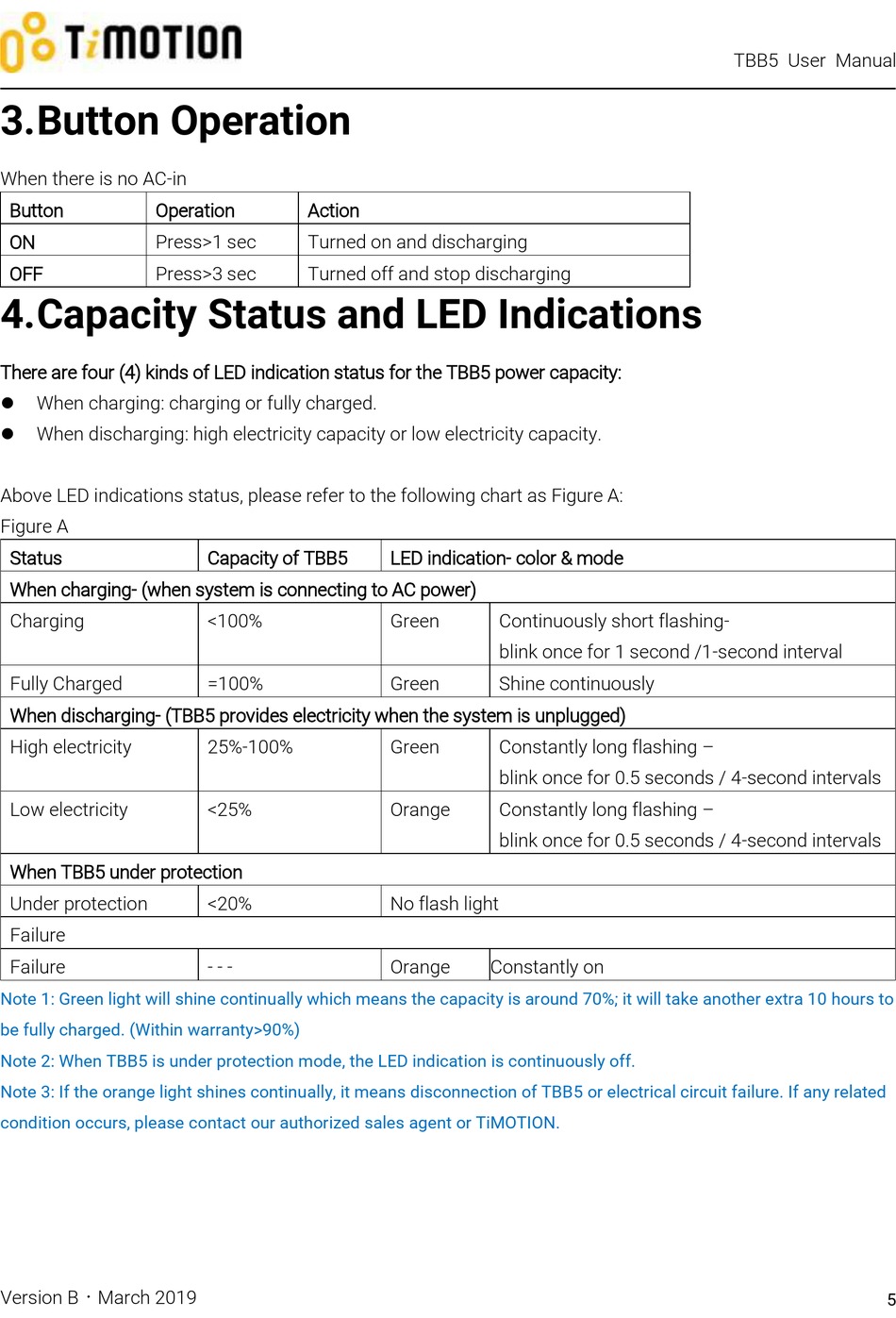

3. Button Operation

When there is no AC-in
Button Operation
ON Press>1 sec
OFF Press>3 sec

4. Capacity Status and LED Indications

There are four (4) kinds of LED indication status for the TBB5 power capacity:
When charging: charging or fully charged.

 When discharging: high electricity capacity or low electricity capacity.
Above LED indications status, please refer to the following chart as Figure A:
Figure A
Status
When charging- (when system is connecting to AC power)
Charging
Fully Charged
When discharging- (TBB5 provides electricity when the system is unplugged)
High electricity
Low electricity
When TBB5 under protection
Under protection
Failure
Failure
Note 1: Green light will shine continually which means the capacity is around 70%; it will take another extra 10 hours to
be fully charged. (Within warranty>90%)
Note 2: When TBB5 is under protection mode, the LED indication is continuously off.
Note 3: If the orange light shines continually, it means disconnection of TBB5 or electrical circuit failure. If any related
condition occurs, please contact our authorized sales agent or TiMOTION.
Version B March 2019
Action
Turned on and discharging
Turned off and stop discharging
Capacity of TBB5
<100%
=100%
25%-100%
<25%
<20%
- - -
LED indication- color & mode
Green Continuously short flashing-
blink once for 1 second /1-second interval
Green Shine continuously
Green Constantly long flashing –
blink once for 0.5 seconds / 4-second intervals
Orange Constantly long flashing –
blink once for 0.5 seconds / 4-second intervals
No flash light
Orange Constantly on
