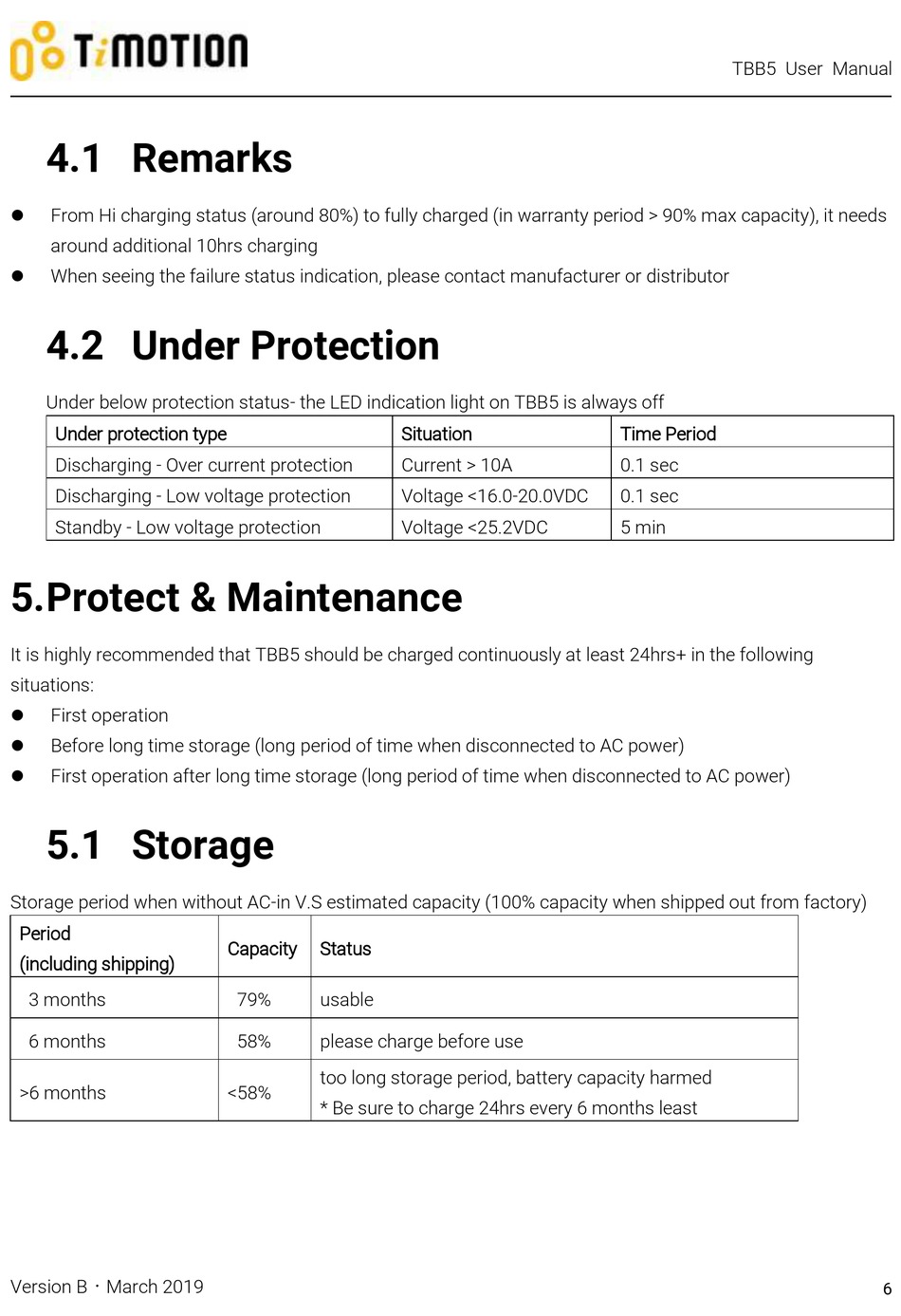

4.1 Remarks

From Hi charging status (around 80%) to fully charged (in warranty period > 90% max capacity), it needs
around additional 10hrs charging
When seeing the failure status indication, please contact manufacturer or distributor

4.2 Under Protection

Under below protection status- the LED indication light on TBB5 is always off
Under protection type
Discharging - Over current protection
Discharging - Low voltage protection
Standby - Low voltage protection
5. Protect & Maintenance
It is highly recommended that TBB5 should be charged continuously at least 24hrs+ in the following
situations:
First operation
Before long time storage (long period of time when disconnected to AC power)
First operation after long time storage (long period of time when disconnected to AC power)

5.1 Storage

Storage period when without AC-in V.S estimated capacity (100% capacity when shipped out from factory)
Period
(including shipping)
3 months
6 months
>6 months
Version B March 2019
Capacity
Status
79%
usable
58%
please charge before use
too long storage period, battery capacity harmed
<58%
* Be sure to charge 24hrs every 6 months least
Situation
Current > 10A
Voltage <16.0-20.0VDC
Voltage <25.2VDC
TBB5 User Manual
Time Period
0.1 sec
0.1 sec
5 min
6
