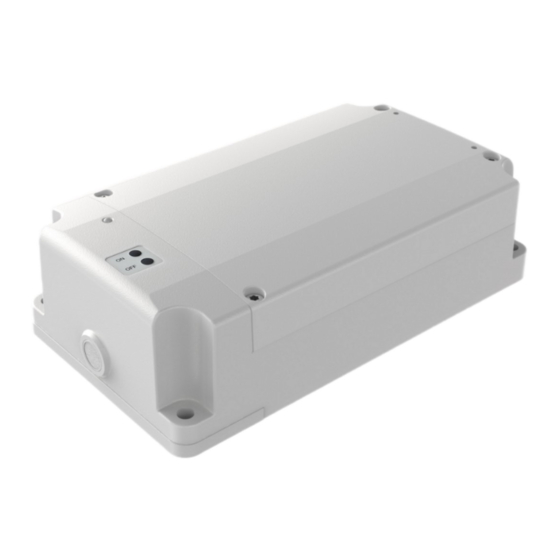

- Page 1 VERSION: B 20190313 TBB5 USER MANUAL...
-
Page 2: Table Of Contents
TBB5 User Manual Contents Contents ..................................2 1. Warning ................................3 2. Specifications ..............................4 3. Button Operation ..............................5 4. Capacity Status and LED Indications ........................5 Remarks ....................................6 Under Protection ..................................6 5. Protect & Maintenance ............................6 Storage ...................................... -
Page 3: Warning
TBB5 User Manual 1. Warning Must follow the rated input voltage Don’t discard or expose the products into water or heat source Recycle with certified depots Need to be repaired by original manufacturer or authorized maintenance centers... -
Page 4: Specifications
TBB5 User Manual 2. Specifications Model name TBB5 Battery capacity 4.0Ah (0.1C-discharge by 400mA) Input 30VDC (29-45VDC) Output 25.6VDC, 4.0A (Max. 10A) Duty cycle 10% (2 min on / 18 min off) Operation temperature 0 - 40 IP rating Up to IP66W (optional) -
Page 5: Button Operation
Note 2: When TBB5 is under protection mode, the LED indication is continuously off. Note 3: If the orange light shines continually, it means disconnection of TBB5 or electrical circuit failure. If any related condition occurs, please contact our authorized sales agent or TiMOTION. -
Page 6: Remarks
0.1 sec Standby - Low voltage protection Voltage <25.2VDC 5 min 5. Protect & Maintenance It is highly recommended that TBB5 should be charged continuously at least 24hrs+ in the following situations: First operation Before long time storage (long period of time when disconnected to AC power) First operation after long time storage (long period of time when disconnected to AC power) ... -
Page 7: Repair
TBB5 User Manual 5.2 Repair If the battery in TBB5 is defective, please use equivalent LiFePO4 battery for replacement or contact original manufacturer for battery replacements. 5.3 Transportation By land, sea or air is allowed. Please contact TiMOTION for the related safety report. -
Page 8: Appendix
This figure represents theoretical values which are only for reference. The battery life varies upon the actual charging and discharging currents. TBB5 discharge voltage - current curve Output Voltage 0A 0.5 1A 1.5 2A 2.5 3A 3.5 4A 4.5 5A 5.5 6A 6.5 7A 7.5 8A 8.5 9A 9.5 10A... -
Page 9: Discharge Voltage - Time Curve
Discharging time (h) Y axis Discharging voltage (V) Remark This figure represents theoretical values which are only for reference. The battery life varies upon the actual charging and discharging currents. TBB5 discharge voltage-time curve(1C) 28.00 27.50 26.00 24.50 24.00 22.00 22.00...
