CONNECTING REMOTE RECEIVER
THESE INSTRUCTIONS SUPERCEDE THE
SECTION EN-TITLED "HEARTH MOUNT" THE
MILLIVOLT HAND-HELD REMOTE
INSTRUCTIONS SUPPLIED WITH THE
REMOTE.
1. Cut cable to length (approximately 12") for
placement in the fireplace.
2. Strip back 1/4" of the insulation from both ends
of each wire.
3. Connect two .25 female connectors to the wires
at one end of the cable.
4. Insert the opposite ends of the wires into the
receiver wire terminals and tighten the screws.
5. Connect the connectors to the two .25" male con-
nectors located on the left side when facing the
unit (See Figure 17, page 12). Do not let wire
touch grate or burner.

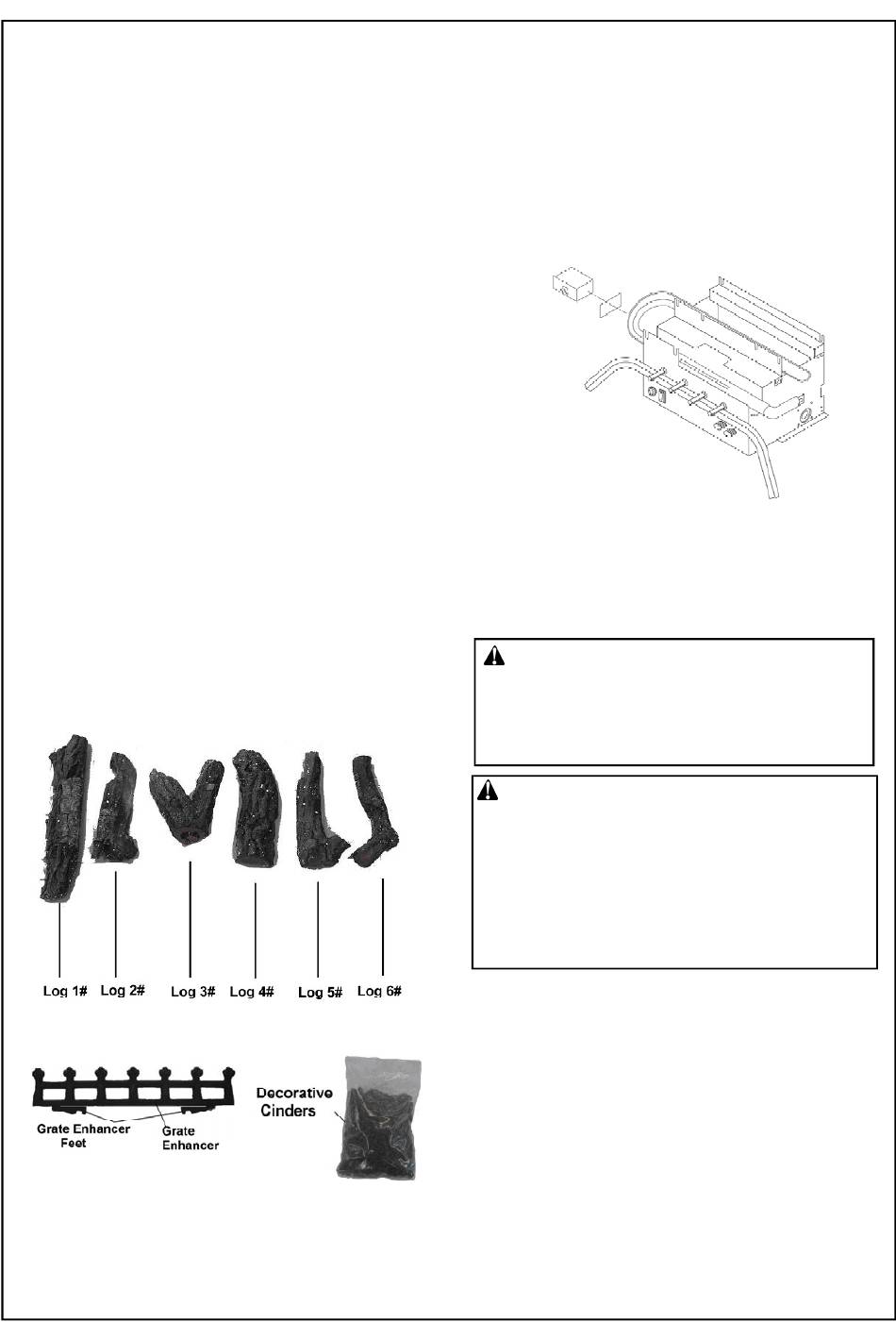

Provided Log: 6
Grate Enhancer Assembly: 1
Decorative cinders: 1
6. Stick velcro pads with self-adhesive backing to bot-
tom of remote receiver and to the left side of the
unit. See Figure 18.
7. Attach remote receiver with velcro pads. Control
switch must face forward.
NOTE: Heat reduces battery life. You can pro-
tect the receiver and extend battery life by
mounting the receiver in a wall or other location
outside the fireplace
Figure 18 - Installing Remote

INSTALLING LOGS

accordance with these diagrams or failure to
use only parts specifically approved with this
heater may result in property damage or
personal injury.
periodically thereafter, check to ensure that no
flame comes in contact with any log. With the
heater set to high, check to see if flames
contact any log. If so, reposition logs according
to the log installation instructions in this
manual. Flames contacting logs will create
soot.
Each log is marked with a number. This number will
help you to identify the logs when installing. It is very
important to install these logs exactly as instructed.
Do not modify logs. Only use logs supplied with
heater.
1.
2. Insert the pins on the back of log #1 into the hole
13
.
Receiver
WARNING: Failure to position the parts in
CAUTION: After installation installation and
Attach the nick of the grate enhancer feet onto
the front bracket, centering it from left to right
(see Figure 19).
on the log bracket on the back of grate base,
and tighten the screws (see Figure 20).
