eHOME BeON
INSTRUCTION & INSTALLATION MANUAL

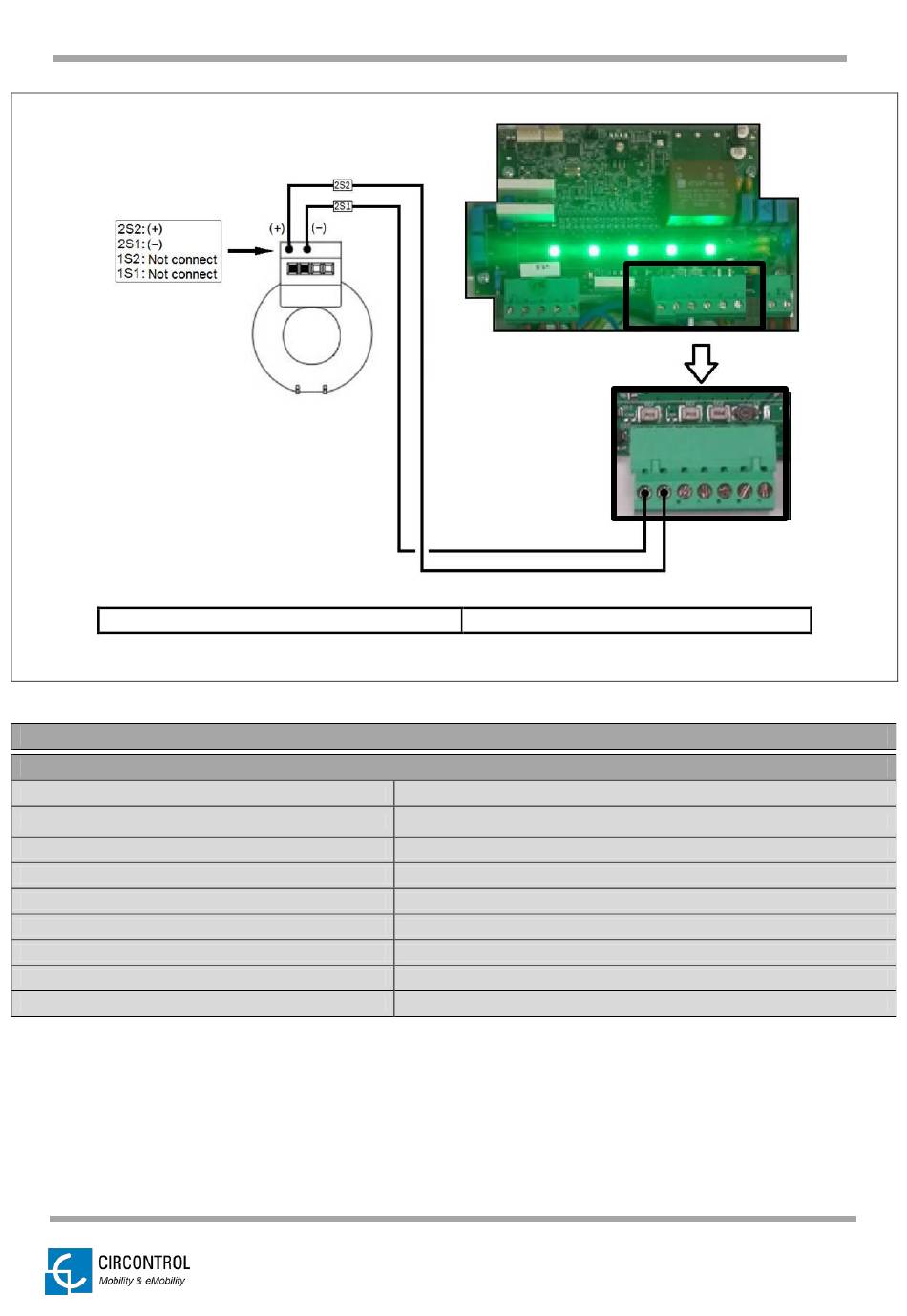

1. eHOME BeON Positive / Pin 2S2 (+)
2. eHOME BeON Negative / Pin 2S1 (-)
eHOME BeON
PRODUCT SPECIFICATION
Type Current Transformer
Ring Core Current Transformer
Material
Polyester
Dimensions
30 x 15 mm
Rated Insulation Level
0.72 / 3 /- kV
Connection
2S1 (-) / 2S2 (+)
Relation
25/0.05 A - 30/0.05 A - 35/0.05 A - 40/0.05 A - 50/0.5 A - 63/0.05 A
Accuracy
Class I
Direction of the current
P1↓
Index of Protection
IP20
NOTICE: Device available for the WallBox range: eHOME & eHOME + Series and eBasic Series
