Spraying Systems Co TeeJet TECHNOLOGIES BoomPilot Installation Manual page 5

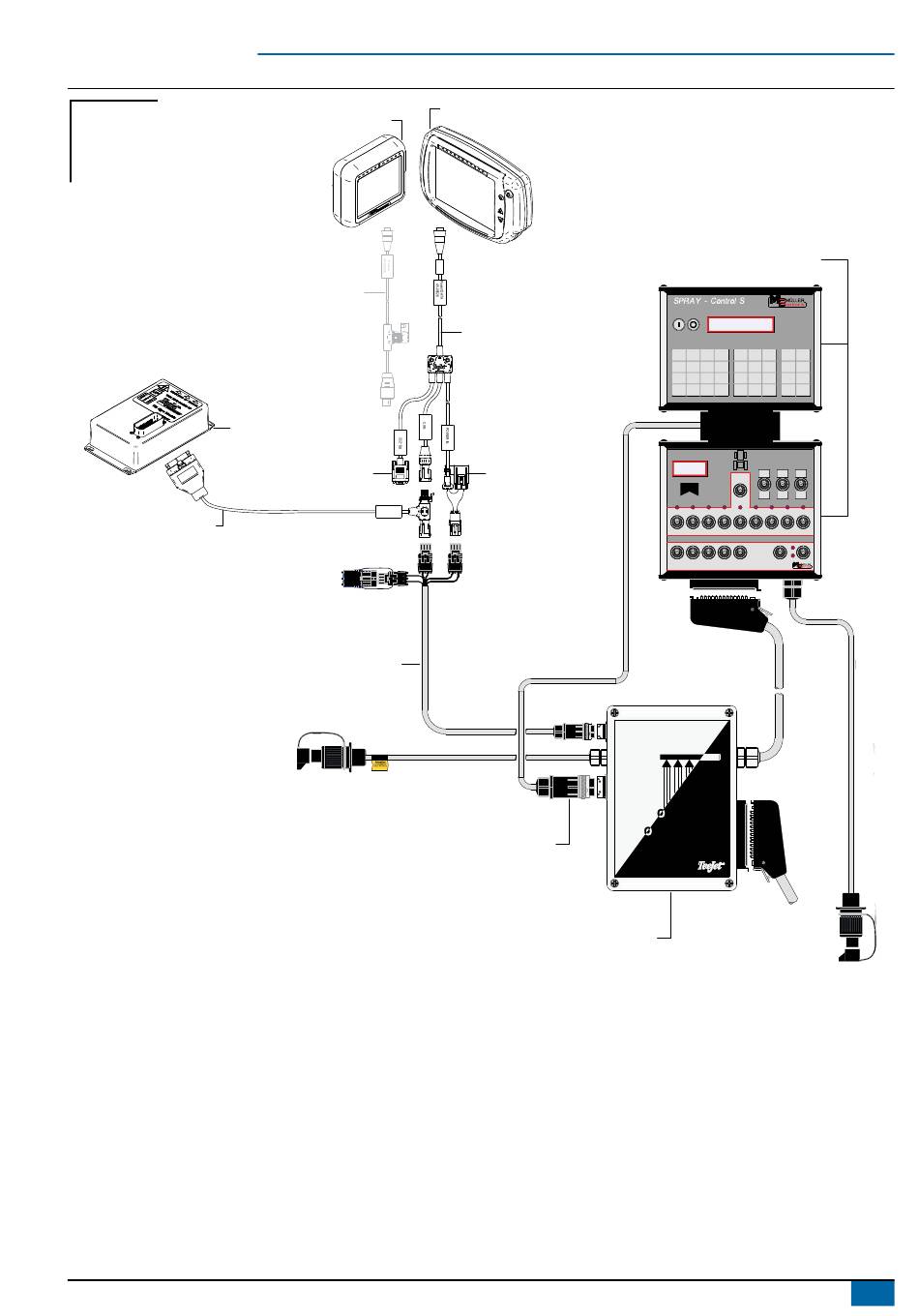

Figure 1: System diagram
Existing system
Not needed
BoomPilot
Optional accessory
45-05625 Power cable, COBO
(included with Matrix Pro kits)
NOT NEEDED WITH BOOMPILOT
Tilt gyro
module (TGM)
TGM harness
Power connector
ABSC adapter box
Matrix Pro 840
Matrix Pro 570
to RS-232
CAN
A B B A
199-263
BoomPilot adapter cable
Müller Spray Control - S adapter cable
45-05845 3.3 m
Power/CAN/data cable
(included with FieldPilot
and BoomPilot kits)
10A fuse
AUT
B
198-094
CONTROL
902-361
ABSC adapter box
BoomPilot
Spray - Control S controller
Müller standard switch box
DUBEX
Machine connector
(from ABSC box)
MATIC
OM SECTION
Machine connector
(from sprayer)
Power connector
Müller SPRAY CONTROL-S switch box
020-043-UK R4
®
3
