Technical Parameters
ANSI/ PLATO FL1
Output
30 minutes *
Runtime
Distance
Intensity
Impact Resistance
Submersible
Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix
through its laboratory testing using a 5000mAh battery under the temperature of 21±3°C and humidity of 50% ‐
80%. The true performance of this product may vary according to different working environments and actual
battery status.

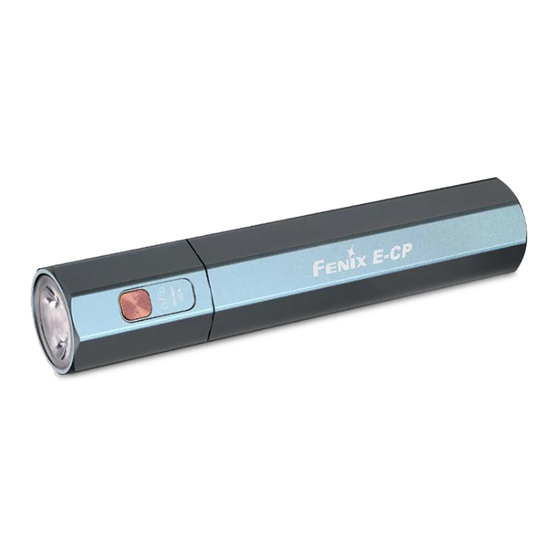

Fenix E‐CP Flashlight
Turbo
High
1600
350
lumens
lumens
8 hours
2 hours
30 minutes
222
105
meters
meters
12400
2750
candela
candela
Med
Low
150
30
lumens
lumens
20
84
hours
hours
33
69 meters
meters
1200
270
candela
candela
1 meter
IP68
Eco
Strobe
3
1600
lumens
lumens
504
/
hours
10
/
meters
25
/
candela
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fenix E-CP
Summary of Contents for Fenix E-CP
- Page 1 Fenix E‐CP Flashlight Technical Parameters ANSI/ PLATO FL1 Turbo High Med Low Eco Strobe 1600 350 3 150 30 1600 lumens lumens lumens lumens lumens lumens Output 8 hours 20 84 504 2 hours ...
- Page 2 *The Turbo output is measured in a total of runtime including output at reduced levels due to temperature or protection mechanism in the design. Warning Do place this light out of the reach of children! Do NOT shine the light directly into the eyes of anyone! Do NOT shine flammable objects at close range, to avoid burning objects or causing danger due to high temperature! Do NOT use the light in inappropriate ways such as biting in the mouth, to avoid personal injury or life threats when the light or internal battery fails! This light will accumulate a lot of heat while working, resulting in a high temperature of the flashlight shell. Pay attention to safe use to avoid scalding. Turn off and lock the light or remove the battery from the light to prevent accidental activation when the light is placed in a closed and flammable environment such as pockets ...
- Page 3 Boot‐up battery level indication and low‐voltage warning. Made of durable A6061‐T6 aluminum. Premium type HAIII hard‐anodized anti‐abrasive finish. 5.43’’ x 1.10’’ / 138 x 28 mm. 6.00 oz / 170 g (including battery). Operating Instruction On/off With the light unlocked, press and hold the side switch for 0.5 seconds to turn on/off the light. Instant Strobe With the light unlocked, press and hold the side switch for 1.2 seconds to enter Strobe mode, single click again to return to the previously used output of General mode. Output Selection In General mode, single click the side switch to cycle through Eco→Low→Med→High→Turbo. ...
- Page 4 Intelligent Memory Circuit The light memorizes the last selected output excluding Strobe mode. When turned on again the previously used mode will be recalled. * The High mode will be activated when turned on again if the light is turned off on Turbo mode. Charging 1. Open the anti‐dust cap, plug the USB Type‐C socket of the charging cable into the light and the other end of the charging cable into an electrical outlet. 2. When charging, the charging indicators will flash from left to right to display charging status. The four indicators will be constant‐on after charging is complete. 3. A 5V/2A or higher‐power adapter must be used for charging this light. The normal charging time is approximately 2 hours from depletion to full charging, with the 18W or higher‐power fast charging adapter, and the charging time is approximately 3.5 hours with a 5V/2A adapter. 4. Only Eco, Low and Med modes are available when charging, but the charging time will be prolonged. ...
- Page 5 2. Properly connect the light and the device to be charged via the charging cable to begin discharging, the indicators will recede from right to left to display the status. Only Eco, Low and Med modes are available when discharging. 3. Be sure to close the anti‐dust cover once discharging is completed. Note: 1. The USB‐A port of the light ONLY supports discharging and the USB Type‐C port of the light supports ...
- Page 6 Intelligent Overheat Protection The light will accumulate a lot of heat when used on High or Turbo modes for extended periods. When the light reaches a temperature of 50°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 50°C, it will then allow the user for the reselection of High or Turbo modes. Low‐voltage Warning When the voltage level drops below the preset level, the flashlight is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output mode, the light blinks 3 times every 5 minutes to remind you to timely recharge the battery. Usage and Maintenance Disassembling the sealed head can cause damage to the light and will void the warranty. Lock the light to prevent accidental activation during storage or transportation. ...
- Page 7 Included Fenix E‐CP flashlight, USB Type‐C charging cable, Lanyard, User manual, Warranty card IMPORTANT SAFETY INSTRUCTIONS WARNING ‐ When using this product, basic precautions should always be followed, including the following: Read all the instructions before using the product. To reduce the risk of injury, close supervision is necessary when the product is used near children. Do not put fingers or hands into the product. Do not expose power bank to rain or snow. Use of a power supply or charger not recommended or sold by power pack manufacturer ...
