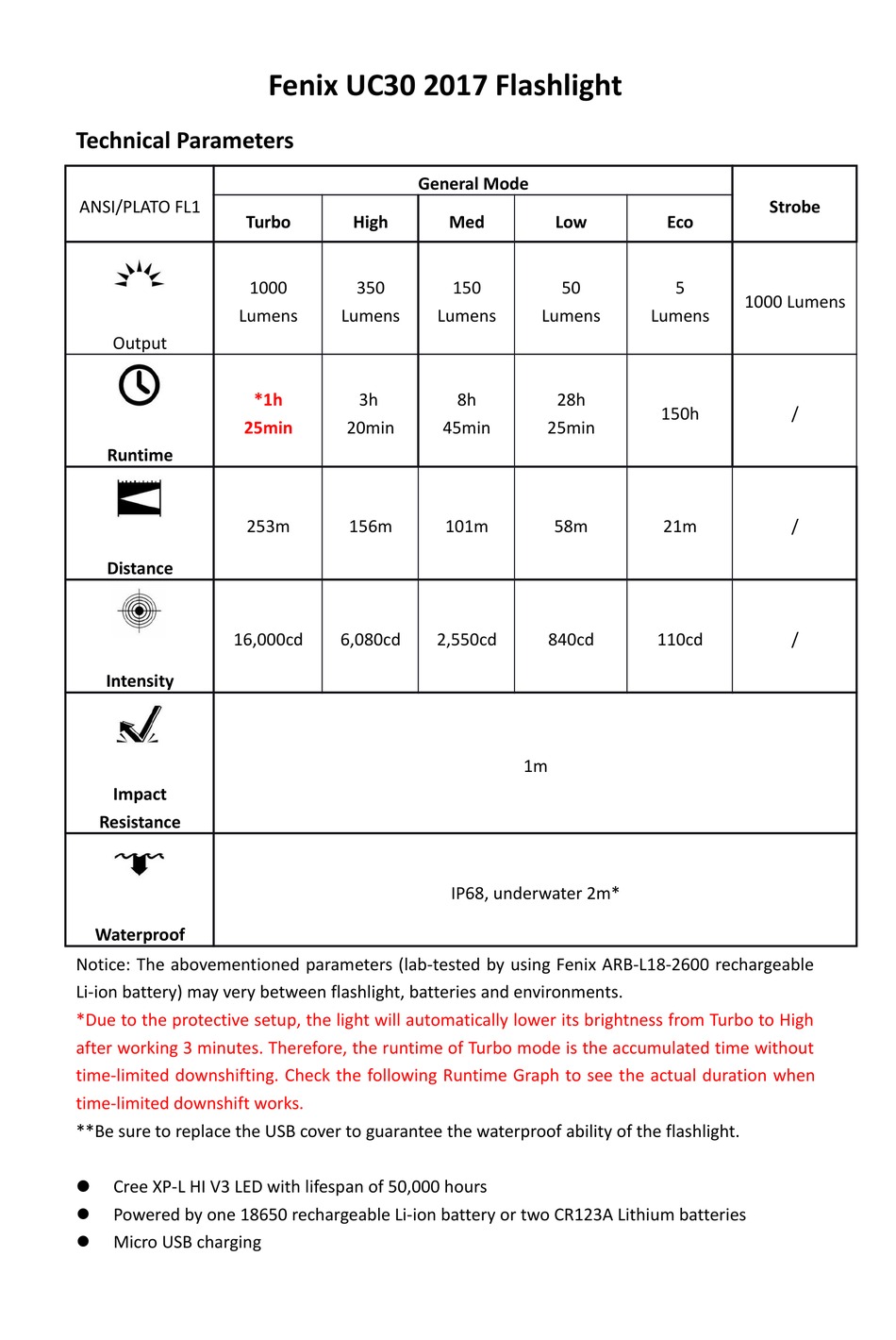

Technical Parameters
ANSI/PLATO FL1
Lumens
Output
25min
Runtime
Distance
16,000cd
Intensity
Impact
Resistance
Waterproof
Notice: The abovementioned parameters (lab-tested by using Fenix ARB-L18-2600 rechargeable
Li-ion battery) may very between flashlight, batteries and environments.
*Due to the protective setup, the light will automatically lower its brightness from Turbo to High
after working 3 minutes. Therefore, the runtime of Turbo mode is the accumulated time without
time-limited downshifting. Check the following Runtime Graph to see the actual duration when
time-limited downshift works.
**Be sure to replace the USB cover to guarantee the waterproof ability of the flashlight.
Cree XP-L HI V3 LED with lifespan of 50,000 hours
Powered by one 18650 rechargeable Li-ion battery or two CR123A Lithium batteries
Micro USB charging

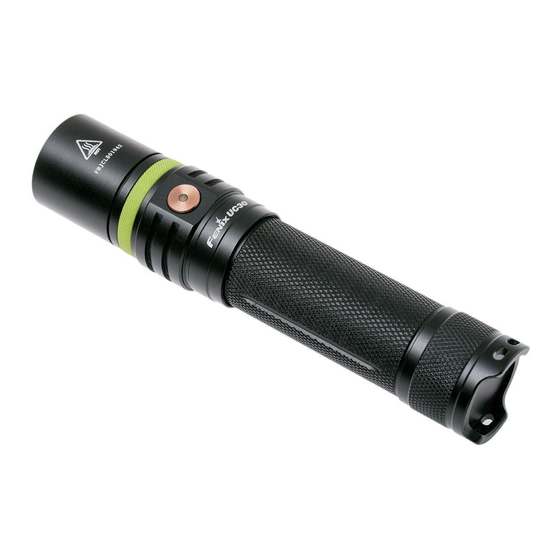

Fenix UC30 2017 Flashlight
Turbo
High
1000
350
Lumens
*1h
3h
20min
253m
156m
6,080cd
General Mode
Med
Low
150
50
Lumens
Lumens
8h
28h
45min
25min
101m
58m
2,550cd
840cd
1m
IP68, underwater 2m*
Strobe
Eco
5
1000 Lumens
Lumens
150h
/
21m
/
110cd
/

Advertisement

loading

Related Manuals for Fenix UC30 2017

Summary of Contents for Fenix UC30 2017

  • Page 1 Resistance IP68, underwater 2m* Waterproof Notice: The abovementioned parameters (lab-tested by using Fenix ARB-L18-2600 rechargeable Li-ion battery) may very between flashlight, batteries and environments. *Due to the protective setup, the light will automatically lower its brightness from Turbo to High after working 3 minutes.
  • Page 2 130mm Length x 25.4mm Head diameter x 23.4mm Body diameter (5.1*1*0.9’’)  77 grams (excluding battery)  Lockout function  Battery level indication  Stainless steel side switch for output selection  Luminous USB rubber switch boot  Digitally regulated output maintains constant brightness ...
  • Page 3 Or the charging indicator will display red while charging, and will turn to green when fully charged. The normal charging time of the built-in Fenix ARB-L18 2600 is approximately 3 hours from out of power to fully charged with the light off.

  • Page 4: Battery Replacement

    Disassembling the sealed head can cause damage to the light and will void the warranty.  Fenix recommends using excellent quality battery.  If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
