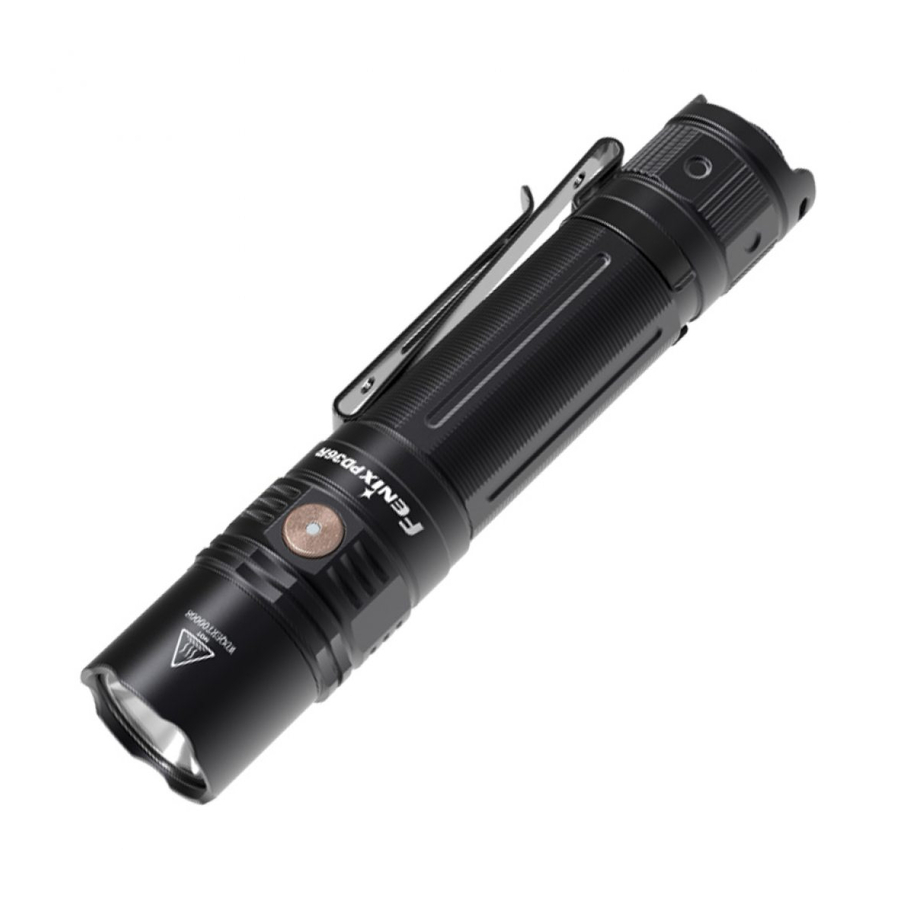

Rechargeable flashlight

Advertisement

Quick Links

PD36R Switches

The tail switch is the tactical switch, and the side switch is the functional switch.

PD36R ON/OFF

Tap
Slightly tap the tactical switch to momentarily turn on the light, release it the light will go out.
Fully press
Fully press the tactical switch to constantly turn on the light, press once again to turn off the light.

PD36R Output Selection

With the light switched on, single click the functional switch to cycle through Turbo→Eco→Low→Med→High.

Strobe

With the light switched on, press and hold the functional switch for 0.5 seconds to enter strobe, click once again to
return back to General mode.

Intelligent Memory Circuit

The light memorizes the last selected output excluding strobe. When turned on again the previously used output will be
recalled.

Battery Replacement

Unscrew the light head to insert the battery with the anode side (+) towards the light head, then screw the light head
back on.

Boot-up Battery Level Indication

Each time the light is turned on, the battery level indicator in the middle of the switch will automatically display the
battery status for 3 seconds.
Green constant on: 85% – 100%, saturated
Green flashes: 50% – 85%, sufficient
Red constant on: 25% – 50%, poor
Red flashes: 1% – 25%, critical
Note: This only works with Fenix ARB-L21-5000 21700 rechargeable Li-ion battery.
FENIX PD36R RECHARGEABLE FLASHLIGHT
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD36R and is the answer not in the manual?

Questions and answers

Summary of Contents for Fenix PD36R

  • Page 1 Green constant on: 85% – 100%, saturated • Green flashes: 50% – 85%, sufficient • Red constant on: 25% – 50%, poor • Red flashes: 1% – 25%, critical Note: This only works with Fenix ARB-L21-5000 21700 rechargeable Li-ion battery.
  • Page 2 2. The indicator in the middle of the switch will be on and display red to indicate charging status, when the indicator turns green, the charging is completed. The normal charging time of the included Fenix ARB-L21-5000 rechargeable Li-ion battery is about 4 hours.
  • Page 3 • Periodic cleaning of the battery contacts improves the light’s performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons: A. The battery needs replacing. a. Solution: Replace battery (Ensure battery is inserted according to the manufacturer’s specifications). B.
