Fenix TK26R Quick Start Manual

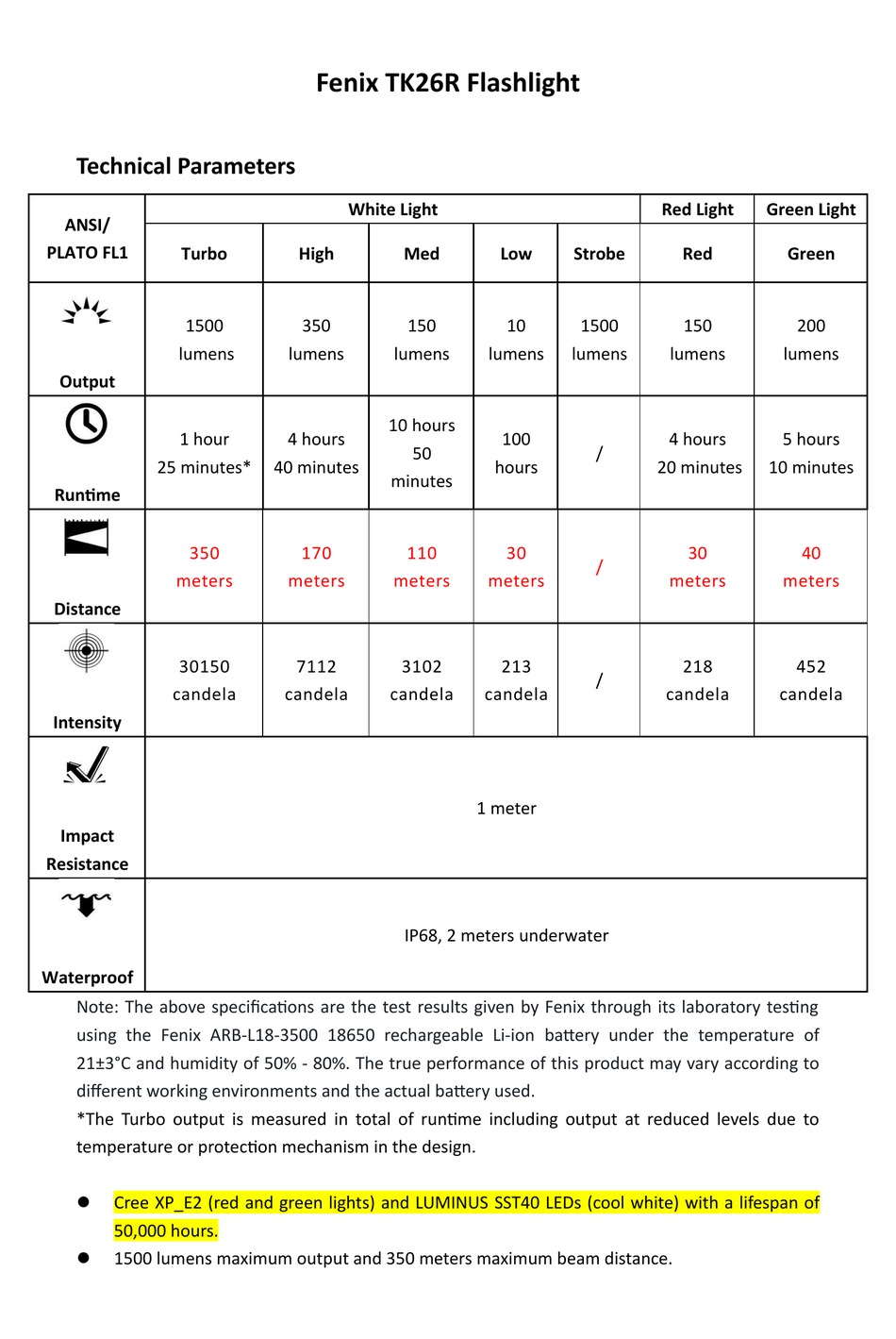

Technical Parameters
ANSI/
PLATO FL1
Turbo
1500
lumens
Output
1 hour
25 minutes*
Runtime
350
meters
Distance
30150
candela
Intensity
Impact
Resistance
Waterproof
Note: The above specifications are the test results given by Fenix through its laboratory testing
using the Fenix ARB-L18-3500 18650 rechargeable Li-ion battery under the temperature of
21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to
different working environments and the actual battery used.
*The Turbo output is measured in total of runtime including output at reduced levels due to
temperature or protection mechanism in the design.
Cree XP_E2 (red and green lights) and LUMINUS SST40 LEDs (cool white) with a lifespan of

50,000 hours.
1500 lumens maximum output and 350 meters maximum beam distance.


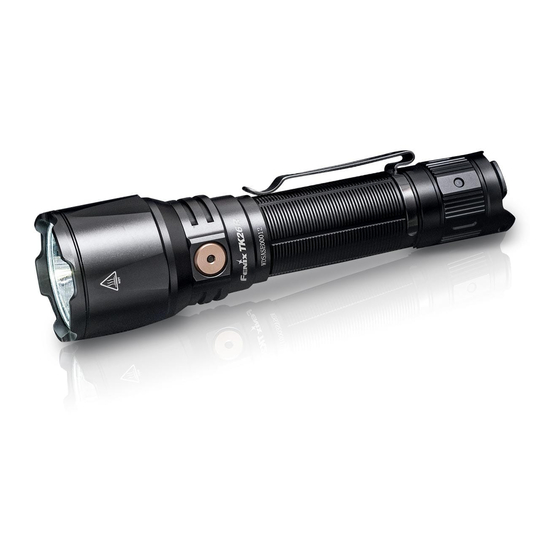

Fenix TK26R Flashlight
White Light
High Med
350 150
lumens lumens
10 hours
4 hours
50
40 minutes
minutes
170 110
meters meters
7112 3102
candela candela
IP68, 2 meters underwater
Low Strobe
10 1500
lumens lumens
100
/
hours
30
/
meters
213
/
candela
1 meter
Red Light Green Light
Red Green
150 200
lumens lumens
4 hours 5 hours
20 minutes 10 minutes
30 40
meters meters
218 452
candela candela
