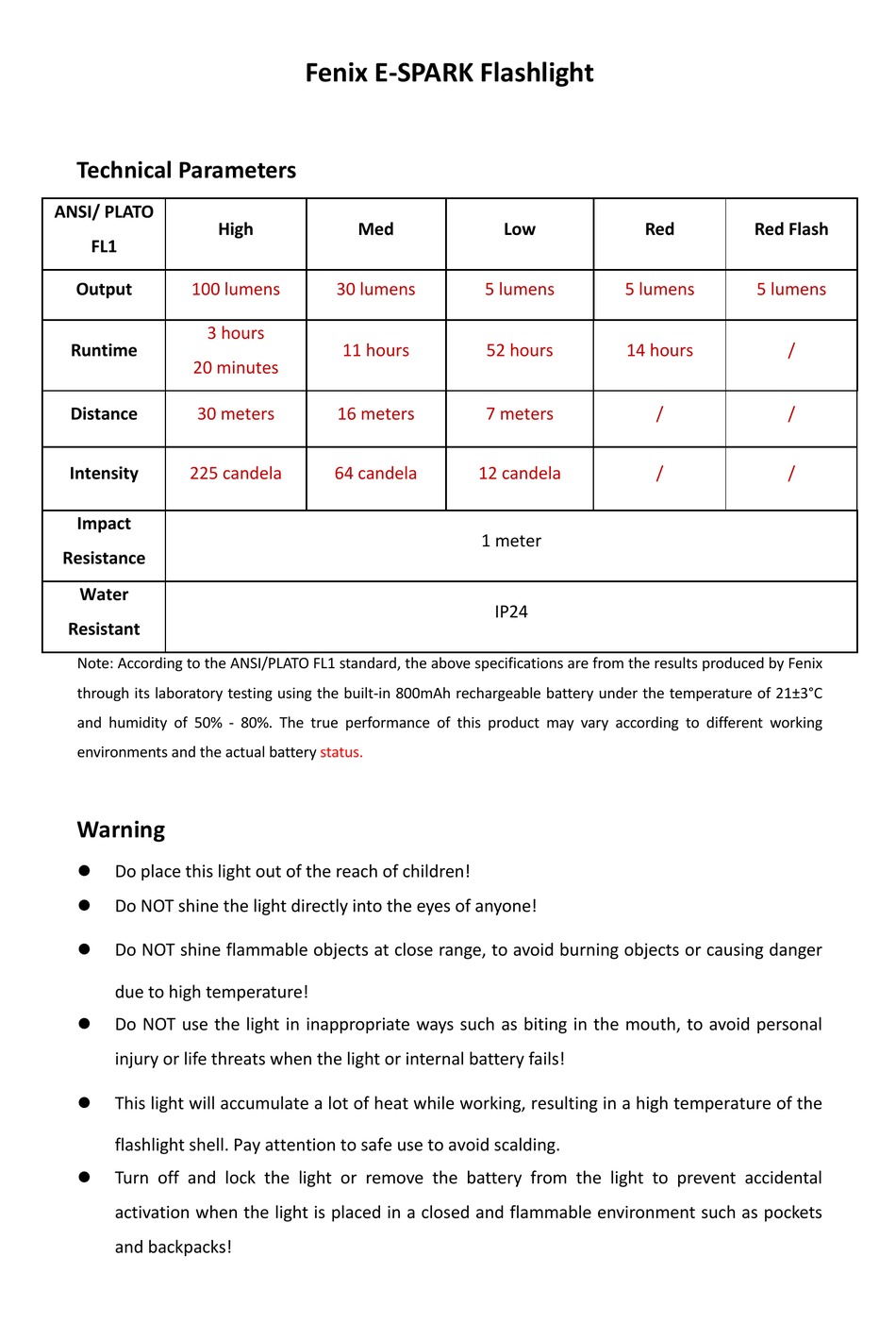

Technical Parameters
ANSI/ PLATO
High
FL1
Output
100 lumens
3 hours
Runtime
20 minutes
Distance
30 meters
Intensity
225 candela
Impact
Resistance
Water
Resistant
Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix
through its laboratory testing using the built-in 800mAh rechargeable battery under the temperature of 21±3°C
and humidity of 50% - 80%. The true performance of this product may vary according to different working
environments and the actual battery
Warning
Do place this light out of the reach of children!
l
Do NOT shine the light directly into the eyes of anyone!
l
Do NOT shine flammable objects at close range, to avoid burning objects or causing danger
l
due to high temperature!
Do NOT use the light in inappropriate ways such as biting in the mouth, to avoid personal
l
injury or life threats when the light or internal battery fails!
This light will accumulate a lot of heat while working, resulting in a high temperature of the
l
flashlight shell. Pay attention to safe use to avoid scalding.
Turn off and lock the light or remove the battery from the light to prevent accidental
l
activation when the light is placed in a closed and flammable environment such as pockets
and backpacks!
Fenix E-SPARK Flashlight
Med
30 lumens
11 hours
16 meters
64 candela
status.
Low
Red
5 lumens
5 lumens
52 hours
14 hours
7 meters
12 candela
1 meter
IP24
Red Flash
5 lumens
/
/
/
/
/
Advertisement
Table of Contents
Related Manuals for Fenix E-SPARK
Summary of Contents for Fenix E-SPARK
- Page 1 IP24 Resistant Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using the built-in 800mAh rechargeable battery under the temperature of 21±3°C and humidity of 50% - 80%. The true performance of this product may vary according to different working environments and the actual battery status.
- Page 2 The LED of this flashlight is not replaceable; so the whole light should be replaced when the LED reaches the end of its life. Product Features lumens maximum output and meters maximum beam distance. Four quality LEDs with a lifespan of 50,000 hours. Built-in 800 mAh large-capacity Li-Polymer battery.
- Page 3 indicate locked status. Intelligent Memory Circuit The light memorizes the last selected mode. When turned on again the previously used mode will be recalled. Charging Remove the tail protection cover to reveal the male Type-C port for discharging and the female Type-C port for charging the light.
- Page 4 2. Timely charge the light to ensure the normal life of the battery. 3. Recharge a stored light every four months to maintain the optimum performance of the battery. 4. The light may not be able to charge some mobile phones that require special charging protocols, such as Samsung, Sony and other brands of mobile phones.
- Page 5 Included Fenix E-SPARK Keychain flashlight, USB Type-C charging cable, Key chain, Lanyard, User manual, Warranty card IMPORTANT SAFETY INSTRUCTIONS WARNING - When using this product, basic precautions should always be followed, including the following: Read all the instructions before using the product.
