Technical Parameters
ANSI/PLATO
High
FL1
150 lumens
Output
1 hour
40 minutes *
Runtime
40meters
Distance
410
candela
Intensity
Impact
Resistance
Water
Resistant
Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results
produced by Fenix through its laboratory testing using the built‐in 275mAh Li‐polymer battery,
under the temperature of 21±3°C and humidity of 50% ‐ 80%. The true performance of this product
may vary according to different working environments.

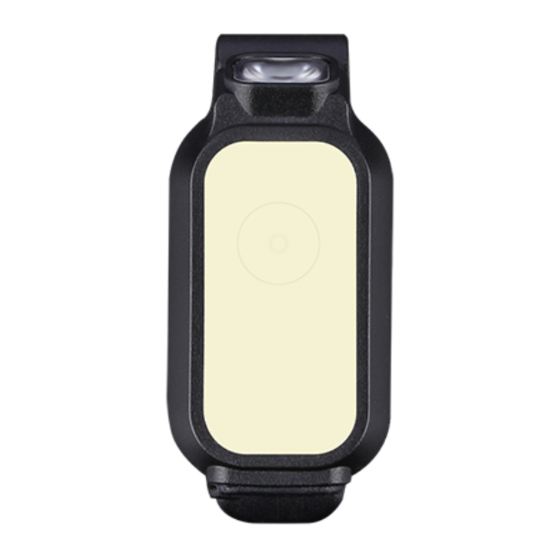

Fenix E‐LITE Flashlight
Med
Low
45 lumens
5 lumens
4 hours
20 hours
20 minutes
22meters
9meters
121
20
candela
candela
Red
Red Flash
3 lumens
3 lumens
8 hours
22 hours
7meters
7meters
/
/
1 meter
IP66
Blue
Blue Flash
3 lumens
3 lumens
8 hours
22 hours
7meters
7meters
/
/
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fenix E LITE
Summary of Contents for Fenix E LITE
- Page 1 / / / candela candela candela Intensity 1 meter Impact Resistance IP66 Water Resistant Note: According to the ANSI/PLATO FL1 standard, the above specifications are from the results produced by Fenix through its laboratory testing using the built‐in 275mAh Li‐polymer battery, under the temperature of 21±3°C and humidity of 50% ‐ 80%. The true performance of this product may vary according to different working environments. ...
- Page 2 * The High output is measured in total of runtime including output at reduced levels due to temperature or protection mechanism in the design. Product Features 150 lumens maximum lumens; 40 meters maximum beam distance. MATCH CA18 white light LED and Everlight 2835 red and blue lights LED, with a lifespan of 50,000 hours. Built‐in 275 mAh Li‐polymer battery. Multipurpose EDC and signal light for a variety of situations. Mini size and ultralight weight. Red and blue signal and warning lights. Electronic lockout function avoids accidental activation. Size: 2.05" x 0.91" x 0.79" / 52 x 23 x 20 mm Weight: 0.63 oz / 18 g. ...
- Page 3 twice on Low to indicate locked status. Unlock With the light locked, double click the switch the light will be unlocked and activated on Low. *In locked status, clicking or pressing the switch will activate 2 one‐second blinks on Low to indicate locked status. Charging 1. First switch off the light and plug the USB A socket of the charging cable into an electrical outlet, then connect the USB Type‐C socket of the charging cable to the light. 2.The indicator will display red while charging, and will turn to green when fully charged. 3. Be sure to close the anti‐dust cover once charging is completed. Note: 1.The normal charging time is approximately 1 hour and 30 minutes from depletion to full charging. 2.Recharge a stored light every four months to maintain optimum performance of the battery. Battery Level Indication With the light switched off, single click the switch to check the battery status, which will last for 3 seconds. Green light on: saturated 100% ‐ 80% Green light flashes: sufficient 80% ‐ 50% Red light on: poor 50% ‐ 20% Red light flashes: critical 20% ‐ 0% Intelligent Overheat Protection The light will accumulate a lot of heat when used on High mode for extended periods. When the light reaches a temperature of 60°C or above, the light will automatically step down a few lumens to reduce the temperature. When the temperature drops below 60°C, it will then allow the user for the reselection of High mode. ...
- Page 4 Low output is reached. When this happens in Low output, the indicator blinks red to remind you to recharge the battery. Usage and Maintenance Disassembling the sealed head can cause damage to the light and will void the warranty. Lock the light to prevent accidental activation during storage or transportation. Included Fenix E‐LITE flashlight, USB Type‐C charging cable, Key chain, Information leaflet, User manual, Warranty card Warning This flashlight is a high‐intensity lighting device capable of causing eye damage to the user or others. Avoid shining the flashlight directly into anyone's eyes. This flashlight will accumulate a lot of heat when used for extended periods, resulting in high temperature of the flashlight shell. Pay attention to safe use to avoid scalding. ...
