OCTAGON ARM REVERSE/LED EDGE INSTALLATION
This kit is designed for a 1601 barrier gate operator WITHOUT convenience open OR 1603 auto-spikes barrier operator. It CANNOT
be used with a 1602 operator. The kit provides a reversing edge with OR /without Red/Green LEDs for a octagon arm. When the arm
is raised, LEDs turn GREEN, and turns RED when lowered and remains RED in the down position. Arm will reverse if lowering and a
obstruction is encountered.
Note: DO NOT operate arm with a malfunctioning reverse edge.
Installation

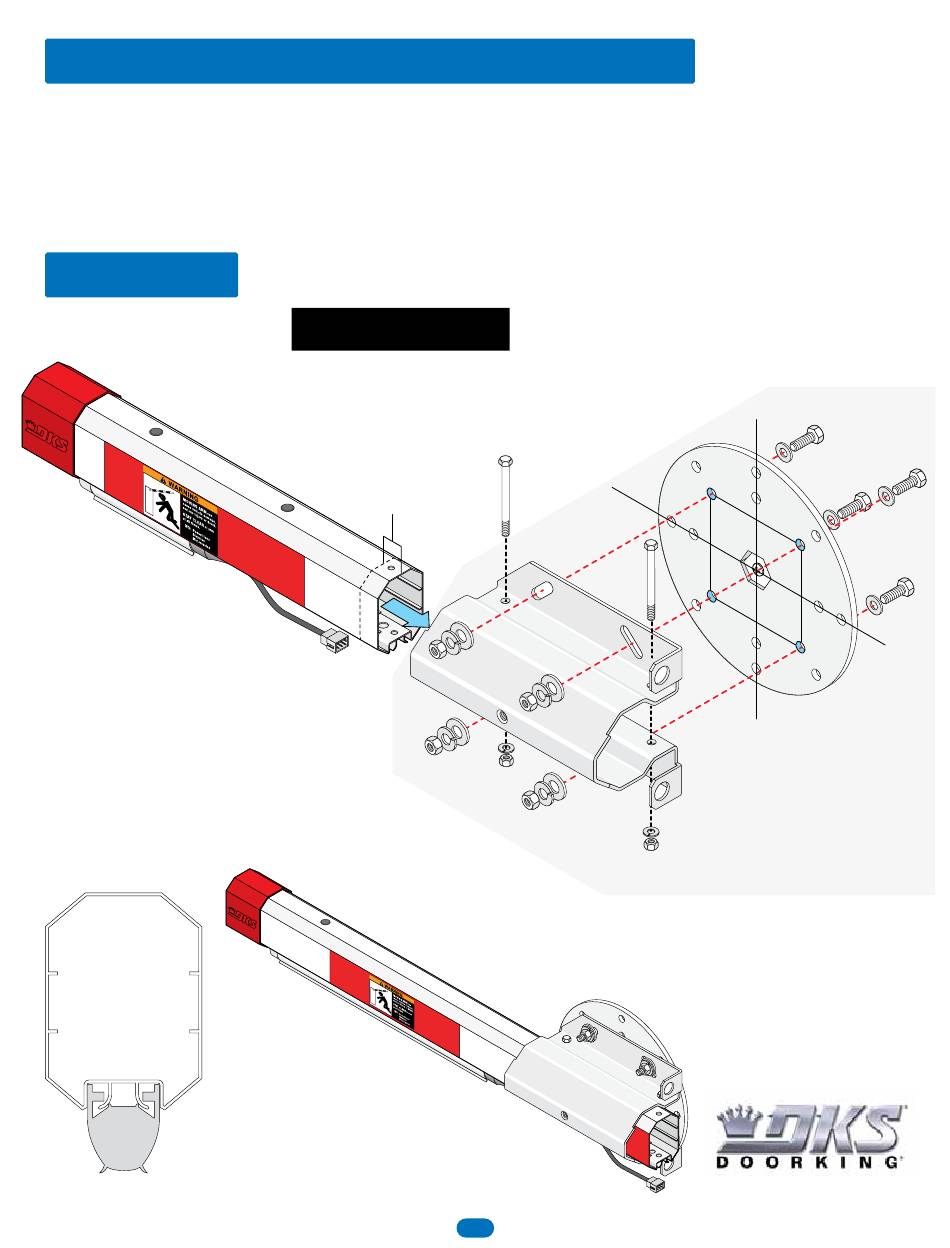

Install Bracket
A r m
R e
v e r
s e
E d
g e
Arm and Reverse Edge Note:
Arm (sold separately) has already been assembled when
using 2-piece arm. See page 5 for more information.
Reverse edge with/without LEDs (sold separately) has already
been installed on arm. See page 6 for more information.
Octagon Arm
Reverse/LED Edge
1601-268-B-12-19
Test hub UP and DOWN position
before installing bracket.
Allow arm to protrude
about 1" past the end
of arm bracket. Make
sure arm cover fits
over arm.
®
Copyright 2019 DoorKing
1
Hub MUST already be installed on gate operator.
See 1601 Installation/Owner's manual for correct hub installation.
A r m
B r a
c k e
t
, Inc. All rights reserved.
DoorKing Part Number
1601-235
Octagon Arm Hardware Kit
Drawings NOT to scale
H u
b
DoorKing Part Number
1601-242
Arm Hardware Kit
When installing a octagon
arm ONLY.
120 S. Glasgow Avenue
Inglewood, California 90301
U.S.A.
