OCTAGON ARM REVERSE/LED EDGE INSTALLATION
This kit is designed for a 1601 barrier gate operator WITHOUT convenience open OR 1603 auto-spikes barrier operator. It CANNOT
be used with a 1602 operator. The kit provides a reversing edge with OR /without Red/Green LEDs for a octagon arm. When the arm
is raised, LEDs turn GREEN, and turns RED when lowered and remains RED in the down position. Arm will reverse if lowering and a
obstruction is encountered.
Note: DO NOT operate arm with a malfunctioning reverse edge.
Installation

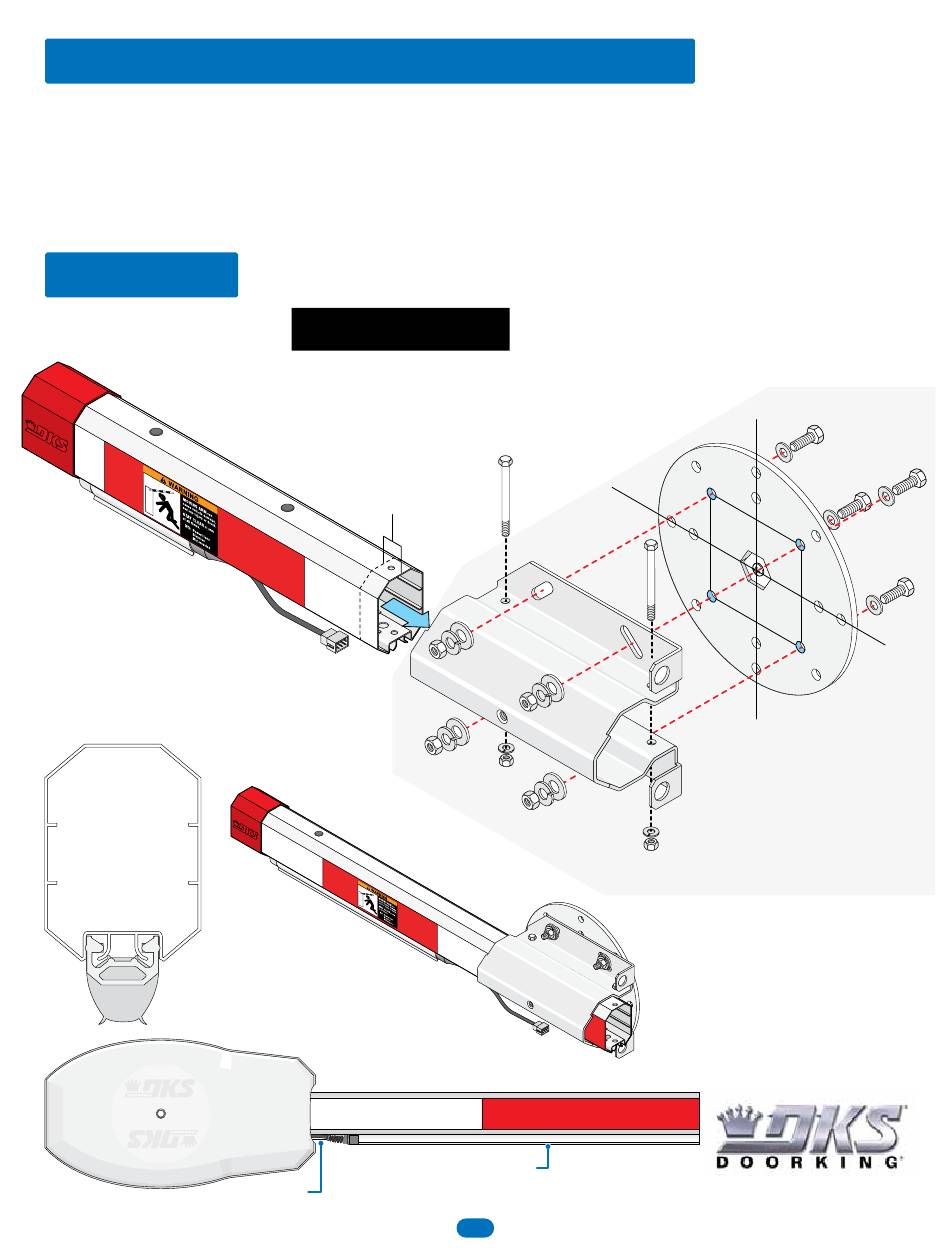

Install Bracket
A r m
R e
v e r
s e
E d
g e
Arm and Reverse Edge Note:
Arm (sold separately) has already been assembled when
using 2-piece arm. See page 5 for more information.
Reverse edge with/without LEDs (sold separately) has already
been installed on arm. See page 6 for more information.
Octagon Arm
Spacer
Optional Reverse/LED Edge
1601-268-E-6-20
Test hub UP and DOWN position
before installing bracket.
Allow arm to protrude
about 1" past the end
of arm bracket. Make
sure arm cover fits
over arm.
Cover
Optional Reverse/LED Edge
Spacer
Copyright 2020 DoorKing
See 1601 Installation/Owner's manual for correct hub installation.
A r m
B r a
c k e
t
®
, Inc. All rights reserved.
1
DoorKing Part Number
1601-235
Octagon Arm Hardware Kit
Drawings NOT to scale
Hub MUST already be installed on gate operator.
H u
b
DoorKing Part Number
1601-242
Arm Hardware Kit
When installing a octagon
arm ONLY.
120 S. Glasgow Avenue
Inglewood, California 90301
U.S.A.
Advertisement
Related Manuals for DoorKing 1601-235
Summary of Contents for DoorKing 1601-235
- Page 1 DoorKing Part Number OCTAGON ARM REVERSE/LED EDGE INSTALLATION 1601-235 Octagon Arm Hardware Kit This kit is designed for a 1601 barrier gate operator WITHOUT convenience open OR 1603 auto-spikes barrier operator. It CANNOT be used with a 1602 operator. The kit provides a reversing edge with OR /without Red/Green LEDs for a octagon arm. When the arm is raised, LEDs turn GREEN, and turns RED when lowered and remains RED in the down position.
- Page 2 Run Wire Harness (1601-345) Choose which side of the operator the arm is mounted on, remove knock-out and run wire harness accordingly as shown. b l e G r i F a r S i d t i o n b l e G r i o c k...
- Page 3 Wiring MAKE SURE ALL POWER IS TURNED OFF TO OPERATOR! TIME DELAY LOOP SW 1 POWER SW 2 Keep wire (1601-345) harness clear of REVERSE SENSITIVITY all moving 1601 operators WITH DOWN parts. LOOP convenience open CANNOT be USED. Arm Relay NC NO Contacts 1 2 3 4 5 6 7 8...
- Page 4 Older Arm Cover Older arm cover will need to have the reverse edge cut out of the existing cover. Only one side of the cover will need to be cut out depending on which side of the operator the arm is mounted on. Use this template as a guide to remove material from the cover.
- Page 5 DoorKing Part Number 14 FT 2-PIECE OCTAGON ARM ASSEMBLY 1601-567 14 Ft 2-Piece Octagon Arm Kit This kit is designed for use on a 1601 or 1603 barrier gate operators ONLY. It has 2-7 ft arm sections that assemble into a 14 ft arm.
- Page 6 DoorKing Part Numbers REVERSE EDGE / RED GREEN LED INSTALLATION 8080-080 Reverse Edge This kit is designed to install on a 14 ft aluminum octagon arm for a 1601 barrier gate operator or 8080-096 a 1603 auto spikes operator. It CANNOT be used with a 1602 operator.
- Page 7 DoorKing Part Number RUBBER BUMPER INSTALLATION 8080-089 This rubber bumper is designed to install on a 14 ft aluminum octagon arm (not included) for a 1601 barrier gate operator or a 1603 auto spikes operator. It CANNOT be used with a 1602 operator.
