OCTAGON ARM REVERSE/LED EDGE INSTALLATION
This kit is designed for a 1601 barrier gate operator OR 1603 auto-spikes barrier operator. It CANNOT be used with a 1602 operator.
The kit provides a reversing edge with OR /without Red/Green LEDs for a octagon arm. When the arm is raised, LEDs turn GREEN,
and turns RED when lowered and remains RED in the down position. Arm will reverse if lowering and a obstruction is encountered.
Note: DO NOT operate arm with a malfunctioning reverse edge.
Installation

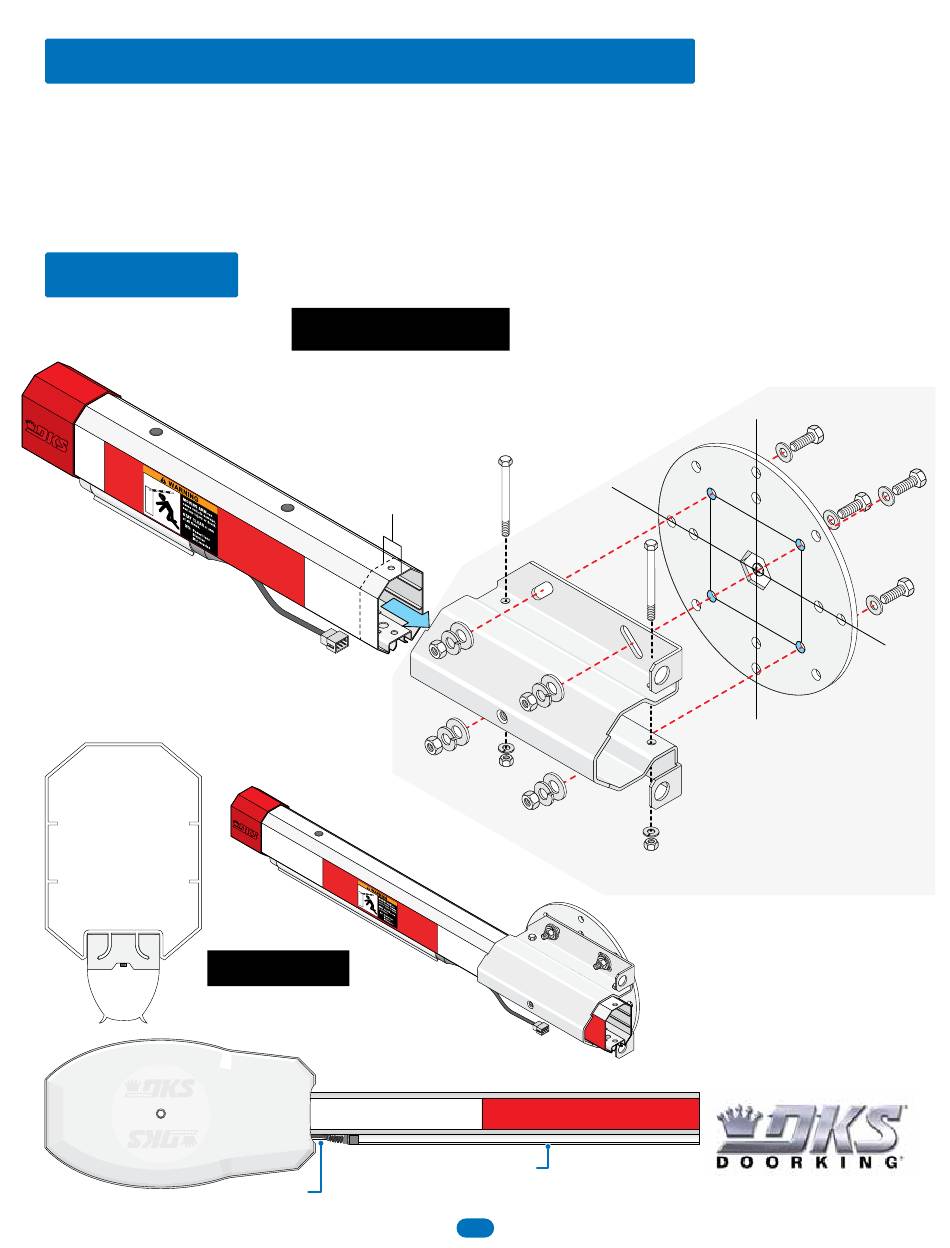

Install Bracket
A r m
R e
v e r
s e
E d
g e
Arm and Reverse Edge Note:
Arm (sold separately) has already been assembled when
using 2-piece arm. See page 5 for more information.
Reverse edge with/without LEDs (sold separately) has already
been installed on arm. See page 6 for more information.
Octagon Arm
Stopper MUST be used
Stopper
or edge will slide in slot.
Optional Reverse/LED Edge
1601-268-L-5-24
Test hub UP and DOWN position
before installing bracket.
Allow arm to protrude
about 1" past the end
of arm bracket. Make
sure arm cover fits
over arm.
Cover
Optional Reverse/LED Edge
Stopper
Copyright 2024 DoorKing
See 1601 Installation/Owner's manual for correct hub installation.
A r m
B r a
c k e
t
®
, Inc. All rights reserved.
1
DoorKing Part Number
1601-235
Octagon Arm Hardware Kit
Drawings NOT to scale
Hub MUST already be installed on gate operator.
H u
b
DoorKing Part Number
1601-242
Arm Hardware Kit
When installing a octagon
arm ONLY.
120 S. Glasgow Avenue
Inglewood, California 90301
U.S.A.
