- Page 1 GB Instructions manual 1 - 16 pages DRIVE 700 Underground oil-hydraulic automation with separate motor-pump assembly for swinging gates EN 13241 EN 12453 EN 12445 the gate opener...
-
Page 2: Installation
CE DECLARATION OF CONFORMITY of the manufacturer: Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: DRIVE 700 complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company. - Page 3 700 kg. The shaft has a square design and is made of hardened steel to achieve the utmost in reliability and long life. For Drive 700 to operate a gate system automatically, it is required that an electronic control board be connected to it and precisely Elpro 27.
- Page 4 9 - Post with photocell transmitter 10 - Post with photocell receiver 11 - Electric lock (for Drive 700 Estru reversible motor-pump unit or in case of gate leaves wider than 2 meters) 12 - Photocell transmitter 13 - Keyswitch...
- Page 5 Underground oil-hydraulic operator with separate motor-pump GATE PREPARATORY WORKS It is required that the gate bottom hinge be removed, being replaced by the rotation shaft/pivot of Drive 700. IMPORTANT: the gate must be allowed to swing open and close perfectly leveled.

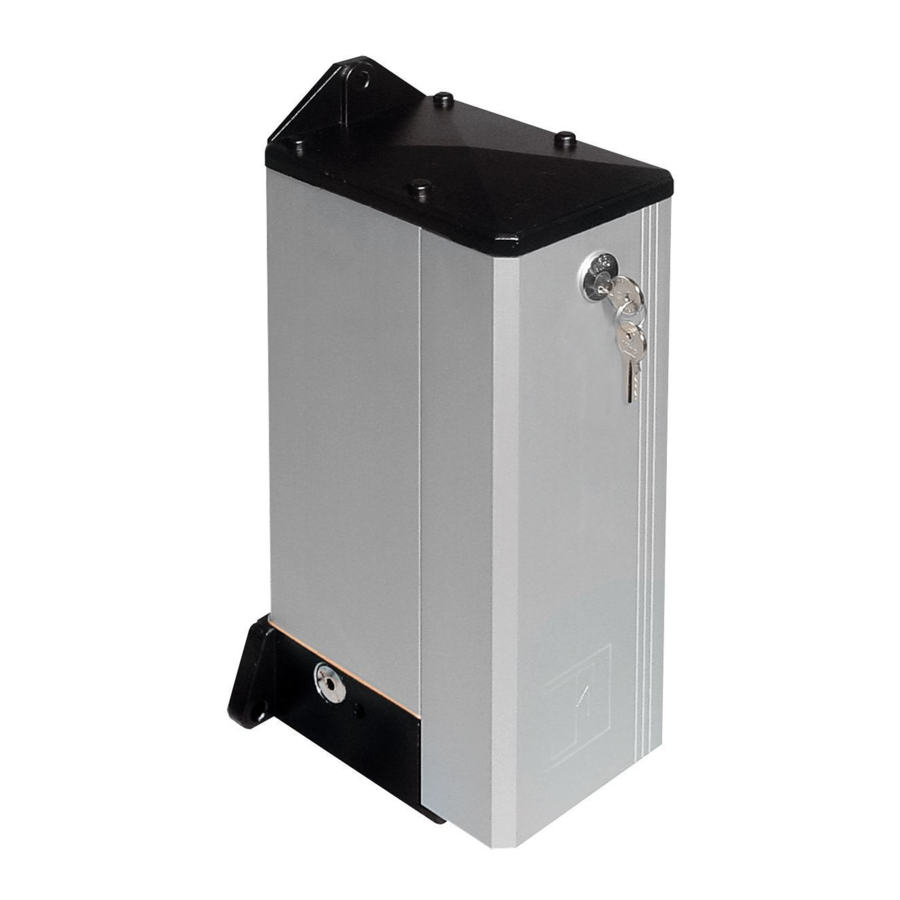

- Page 6 Underground oil-hydraulic operator with separate motor-pump Lay one or more connection tubes into the digging to the motor-pump Drive 700 Estru: it is advisable that the motor pump be installed as near as possible to the jack (fixing by expanding bolts) to facilitate the hydraulic connections.
- Page 7 DRIVE 700 Underground oil-hydraulic operator with separate motor-pump CONNECTING GATE LEAF TO THE JACK AND SETTING INTO OPERATION Once satisfied that corner fixing and jack positioning at the foot of the gate have been completed, next step to carry out is fixing the gate to the jack square shaft by means of the ferrule supplied with the equipment and a plate to weld (not included as it depends on gate type and thickness).
- Page 8 First remove the screws and bring the foundation box fully apart to facilitate next step, that is opening the inlets provided in the casing for the ducts, one to lead oil pipes to Drive 700 Estru motor pump and a duct to drain fluids away.
-
Page 9: Filling With Oil
FILLING WITH OIL Drive 700 motor pump and jack come without oil inside, which is to be poured into the unit after piping has been completed. To fill the motor pump with oil, pull the funnel out and turn it upwards as described in Pic. 13. -
Page 10: Electrical Connections
RELEASING FOR MANUAL OPERATIONS Drive 700 Estru motor pump, double locking version, is designed to allow for jack overriding and in this way it is possible to open and close the gate by hand. Tighten the knob again to bring back locking feature. On the other way, with the non locking, reversible version, only the gate lock is to be opened first by its key and then the gate can be moved by hand. - Page 11 • Turning clockwise = speed is decreased in slowdown (more slowdown). • Turning anticlockwise = speed is increased in slowdown (less slowdown). IMPORTANT: it is recommended that ground gate stops be always installed, in opening and closing, with all the versions of Drive 700. - slowdown + slowdown...
-
Page 12: Maintenance Record
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/officers, and a copy of it must be handed over the end user/s. - Page 13 DRIVE 700 Underground oil-hydraulic operator with separate motor-pump...
- Page 14 DRIVE 700 Underground oil-hydraulic operator with separate motor-pump...
- Page 15 0,85 l/1' Service cycle opening ~ 28 s Working temperature -20 °C +80 °C dwell 20 s Oil type Oil Fadini - Item 708L chiusura ~ 28 s Gate rotation 110°/175° dwell 20 s Max. rated torque 235 Nm Complete cycle time...
- Page 16 DRIVE 700 Underground oil-hydraulic operator with separate motor-pump JACK OIL-HYDRAULIC MOTOR PUMP 356 mm FOUNDATION BOX ø 46 460 mm Pic. 18 MAX. GATE WIDTH PER LEAF (m) The gate structure, design (solid, in-filled), height and strong wind pressure may affect and decrease the indicated values.
