fadini Hindi 880 Instruction Manual

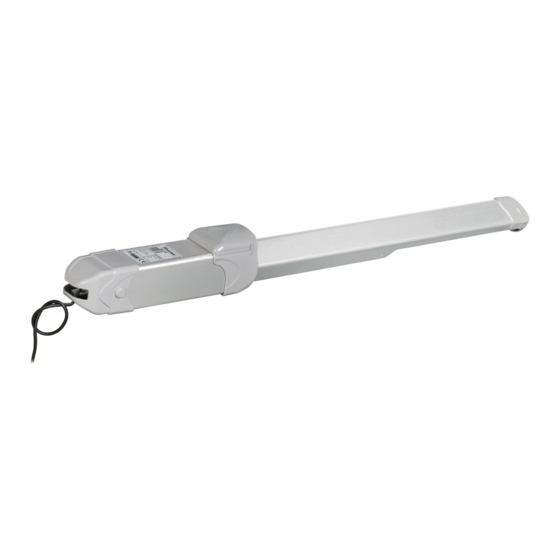

Oil-hydraulic actuator to operate swinging gates up to 4 meters
Hide thumbs
Also See for Hindi 880:
- Installation manual (12 pages) ,
- Instruction manual (8 pages) ,
- Installation manual (12 pages)
Related Manuals for fadini Hindi 880
Summary of Contents for fadini Hindi 880

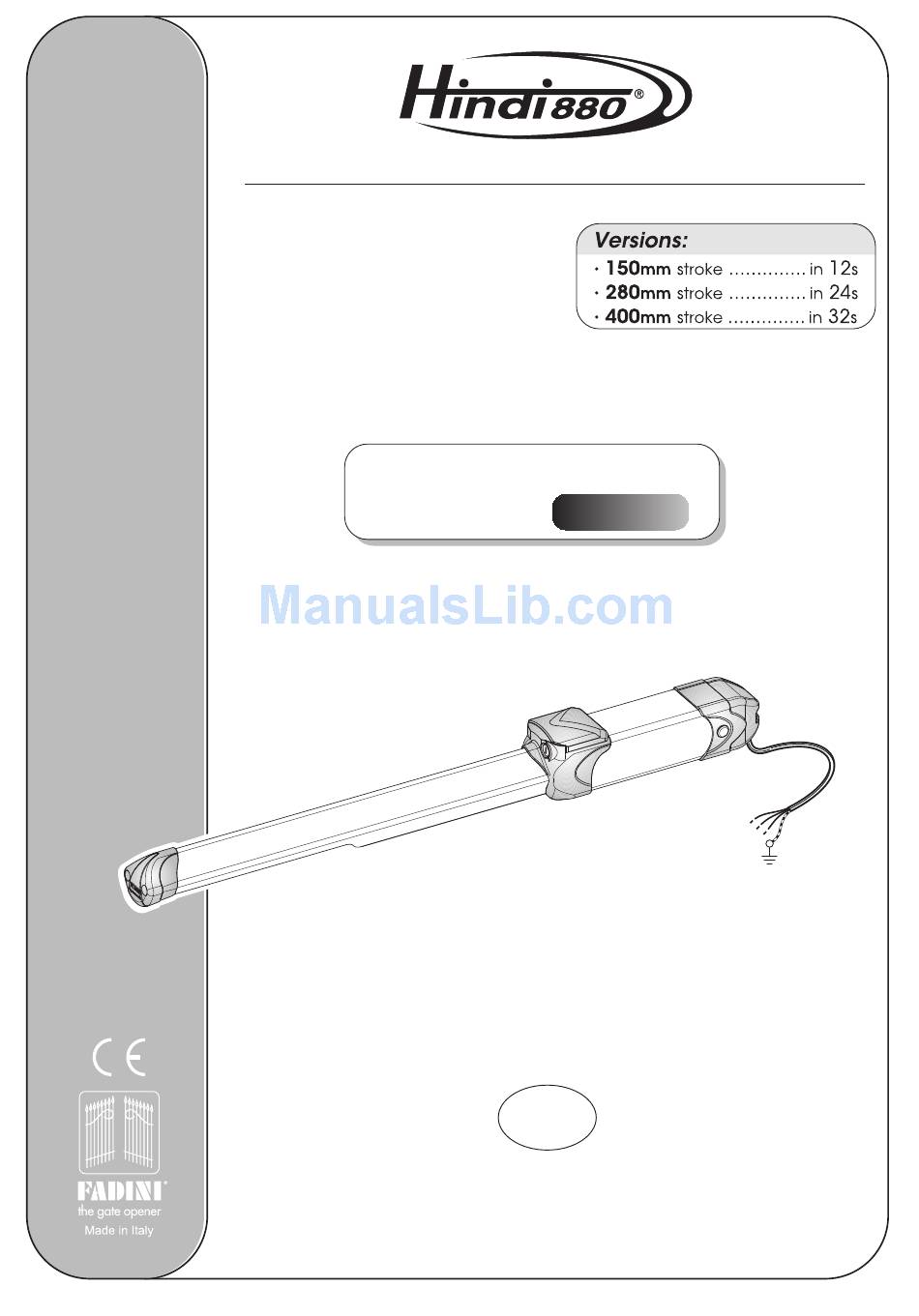

- Page 1 Oil-hydraulic actuator to operate swinging gates up to 4 meters Instructions manual 13-24 pages...
- Page 2 - In case parts or accessories are needed as replacements, use only Fadini originals as recommended by the manufacturer. - Meccanica Fadini is not liable for damages caused by the incorrect use of the equipment, or for applications not included in this manual or for malfunctioning resulting from the use of materials or accessories not recommended by the manufacturer.
-
Page 3: General Information
It is operated by an electronic control box, installed outside in a protected place; operations can be fully automatic or semi-automatic, depending on the application requirements. A variety of accessories complete the system to ensure safety and full control of it at your finger tips, making Hindi 880 suitable for any installation requirements in either commercial, industrial or residential applications. - Page 4 5 - HINDI 880 oil-hydraulic actuator 6 - Gate stop in closed gate position (NOT included) PIC. 3 7 - Electric lock for Hindi 880 Non-locking (**) (**) and for gates wider than 2.0m each code 7083 8 - Photocell projector FIT 55 recess mount...
-
Page 5: Manual Test
It is most important to tighten the lock nut very well (a special spanner is supplied and a wrench x 19 to be provided for this job - Pic.9). Fix Hindi 880 on to the rear bracket by the screw and to the front bracket by the circlip, both incuded in the equipment (Pic.9 - 10). - Page 6 4 5 6 7 8 2s - 100s Flasher fuse F3= 630mA Elpro 13 exp FADINI Elpro 13 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 NEUTRAL...
-
Page 7: Terminal Board
Switch setting 1= ON 1 pair Photocells. Stop in Opening cycle 2= ON Radio. No reverse in Opening cycle DIP-SWITCH: 3= ON Automatic Closing 4= ON Pre-flasing 5= ON Radio. Step by step, stop in between 4 5 6 7 8 6= ON Pedestrian opening of one gate, gate in closed position 7= ON Stroke Reversing Mode on pulsing to Open, gate closed 8= ON No Gate Delay on Opening. -
Page 8: Power Connections
POWER CONNECTIONS TERMINAL BOARD - electronic board DIP-SWITCH 8: 16 17 18 19 20 21 22 23 24 25 voltage connections Gate delay on Opening out of service. Terminal boards - Elpro 13 exp - Both motors start together OFF: Gate delay on Opening in service Electric motors: Once connections to the electric motors have been completed,... - Page 9 1-2 turns anti-clockwise The manual release of Hindi 880 system allows to manually operate gates fitted with actuators, locking type. The coded key is supplied with the equipment and must be inserted in the casing lock and turned by 90° anti clockwise in order to be able to slide the hatch cover to open.
-
Page 10: Fitting The Protection Cap
BLUE YELLOW/GREEN PIC. 18 FITTING THE COVER AND THE REAR CAP Rear fixing plate Right-hand opening Left-hand Opening Hindi 880 installed Hindi 880 installed CUT to get CUT to get CURVE the electric a suitable opening a suitable opening cable through... -
Page 11: Declaration Of Conformity
IS IN COMPLIANCE WITH THE NORMS ..2006/42/CE AND THAT: Hindi 880 is to be sold and installed as a comprehensive "Automatic System", including the accessories and the components as recommended by the Manufacturing Company. In observance of the current directives, any automation is to be regarded as a "machinery". Therefore it is required that all the applicable safety norms are strictly complied with by the installation agents, who are also required to issue a Declaration of Conformity. -
Page 12: Overall Dimensions
The entire installation must be executed by qualified technicians following the guidelines of the Safety Norms handbook available on The growth of MECCANICA FADINI has always been based on high request, and to be filled in, where required: quality products and on a TOTAL QUALITY CONTROL SYSTEM - Oil-hydraulic equipment: inspection and maintenance at least every 6 months.
