- Page 1 NYOTA 115 Electro-mechanical sliding gate operator Instruction manual...

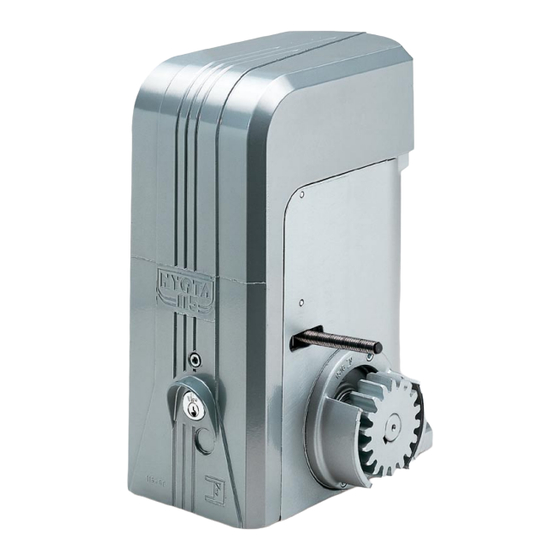

- Page 2 MANUAL AND KEEP TO THE DIAGRAMS. Nyota 115 is an extremely versatile system for sliding gates up to 1˙200 Kg gate weight. It is available in 0.37 KW (0.5 HP) single- and three- phase versions and 0.73 KW (1.0 HP) single and three-phase versions.
- Page 3 TO RELEASE - This explains how to fix the rack. Release the system by the provided E 13 spanner so that the driving gear of NYOTA 115 can run idle (pic. 4). (The gate can be freely moved by hand, the operator Nyota 115 standing in idle position).
-
Page 4: Electrical Connections
LIMIT SWITCH STRIKING PLATES. FITTING INSTRUCTIONS - Fix the limit switch striking plates as shown in the diagram: the distance between NYOTA 115 and the striking plate front surface line must be 15 - 20 mm approx. (pic. 5). IMPORTANT: the gate must stop before hitting the gate post or special gate stops to prevent any damage to its structure. - Page 5 SINGLE- AND THREE-PHASE FOR SLIDING GATES 10 PLUS CEI AND AUTOMATIONS FITTED WITH LIMIT SWITCHES 230/400V ELPRO 10 PLUS CEI F6=630mA 24V protection PULIN 3 TRANSFORMER EXT TIME (electric lock and courtesy light) from 2 to 255s DIP-SWITCH F4=630mA Transformer PEDESTRIAN protection OPENING TIME...
- Page 6 SINGLE- AND THREE-PHASE FOR SLIDING GATES 10 PLUS CEI AND AUTOMATIONS FITTED WITH LIMIT SWITCHES LOW VOLTAGE ELECTRICAL CONNECTIONS Photocells and Safety Edge: DIP-SWITCH 1: ON: Photocells stop gate while opening, 12 13 reverse it on closing once obstacle is removed 24V OUTPUT (MAX.
-
Page 7: Operating Modes
SINGLE- AND THREE-PHASE FOR SLIDING GATES 10 PLUS CEI AND AUTOMATIONS FITTED WITH LIMIT SWITCHES OPERATING MODES Automatic / Semiautomatic: DIP-SWITCH 3 Automatic Operation: any pulse opens the gate, the gate stays open as long as the Dwell time expires ON= Automatic Closing as set by T2 trimmer, then it closes automatically, no pulsing is required. - Page 8 PIC. 11 General description: the electronic control panel Elpro 12 Plus, new generation, is designed to operate the sliding gate operator Nyota 115. Power supply is 230V 50Hz single-phase. Built in full compliance with BT 93/68/CE Low Voltage and EMC 93/68/CE Electro-Magnetic Compatibility Regulations. Fitting operations are recommended by a qualified technician in conformity to the existing safety standards.
-
Page 9: Electrical Power Connections
12 PLUS SINGLE-PHASE FOR NYOTA 115 SLIDING GATE OPERATOR LOW VOLTAGE ELECTRICAL CONNECTIONS Photocells and Safety Edge: DIP-SWITCH 1: ON: Photocells stop gate while opening, 12 13 reverse it on closing once obstacle is removed 24V OUTPUT (500 mA) (MAX. LOAD:... -
Page 10: Pedestrian Opening
12 PLUS SINGLE-PHASE FOR NYOTA 115 SLIDING GATE OPERATOR OPERATING MODES Automatic / Semiautomatic: DIP-SWITCH 3 Trimmer R64 Automatic Operation: any pulse opens the gate, the gate stays open as long as the Dwell time expires ON= Automatic Closing as set by R64 trimmer, then it closes automatically, no pulsing is required. - Page 11 14 PLUS 230V-400V SINGLE- /THREE-PHASE CONTROL BOARD DESIGNED FOR AUTOMATIONS TO OPERATE BI-PARTING SLIDING GATES 230/400V 35 34 33 F6=630mA 24V protection TRANSFORMER PULIN 3 F4=630mA EXT TIME (Electric lock and courtesy light) from 2 to 255s transformer protection DIP-SWITCH 230/400V PEDESTRIAN TIME from 3 to 30s...
- Page 12 14 PLUS 230V-400V SINGLE- /THREE-PHASE CONTROL BOARD DESIGNED FOR AUTOMATIONS TO OPERATE BI-PARTING SLIDING GATES OPERATING MODES LOW VOLTAGE ELECTRICAL CONNECTIONS 11 12 13 Photocells and Safety Edge: DIP-SWITCH 1: 12 13 ON: Photocells stop gate on Opening and reverse it on Closing once obstacle is removed OFF: Photocells do not stop gate on Opening CONTACT FOR 24V OUTPUT (MAX LOAD:...
- Page 13 14 PLUS 230V-400V SINGLE- /THREE-PHASE CONTROL BOARD DESIGNED FOR AUTOMATIONS TO OPERATE BI-PARTING SLIDING GATES ELECTRIC POWER CONNECTIONS Single- and three-phase motors: Trimmer T1 Trimmer T2 MOTOR RUN TIME OPEN / Motor for DWELL TIME from 5 to 128s CLOSE FROM 5 TO 128s pedestrian 230/400V opening...
- Page 14 (pic. 13). 9 is in series with the voltage cut off microswitch No.1 (pic.9). LIMIT SWITCH EXTERNAL VOLTAGE When Nyota 115 is on the first running test, and it is realized that MICROSWITCH CUT OFF the gate is operated in the wrong direction (for instance the gate...
-
Page 15: Electric Motor
TECHNICAL SPECIFICATIONS NYOTA 115 ELECTRIC MOTOR SINGLE-PHASE THREE-PHASE SINGLE-PHASE THREE-PHASE Power output 0.37 KW (0.5 HP) 0.37 KW (0.5 HP) 0.73 KW (1 HP) 0.73 KW (1 HP) Supply voltage 230 V 230/400 V 230 V 230/400 V Frequency 50 Hz... - Page 16 FITTING ACCESSORIES FOR INSTALLING NYOTA 115 NYOTA 115 ELECTRO-MECHANICAL TORQUE CONTROL IN OIL BATH BRONZE-STEEL COUPLING STEEL GEAR RACK 22 x 22 mm THICKNESS E 13 RELEASE SPANNER M8x40 NYLON GEAR RACK 8 mm THICKNESS M8 GEAR RACK FIXING SET...
- Page 17 PIC. 17 ELPRO 12 PLUS The magnetic limit switch is fitted to the Nyota 115, and the permanent magnets are fitted to the gear rack moving along with the gate to the respective limit position on Opening and Closing cycles.
- Page 18 SETTING UP AND FIXING THE MAGNETIC LIMIT SWITCH ONTO NYOTA 115- Item No. 123 30x12 GEAR RACK C/W FIXING EYES PIC. 18 MAGNET FIXING IS BY CLAMP 5mm - Recommended distance LIVE COMMON LIVE 28x20 NYLON GEAR RACK MAGNET FIXING IS BY SCREWS...
- Page 19 NYOTA 115 OVERALL DIMENSIONS PIC. 19 ®...
-
Page 20: Checking And Maintenance
- It is recommended to carefully read the regulations, advice and remarks in the book “Safety Norms”. The growth of MECCANICA FADINI has always been based on the development of guaranteed products thanks to our “TOTAL QUALITY CONTROL” system which ensures constant quality standards, updated knowledge of the European Standards and compliance with their requirements, in view of an ever increasing process of improvement.
