fadini HINDI 880 Installation Manual

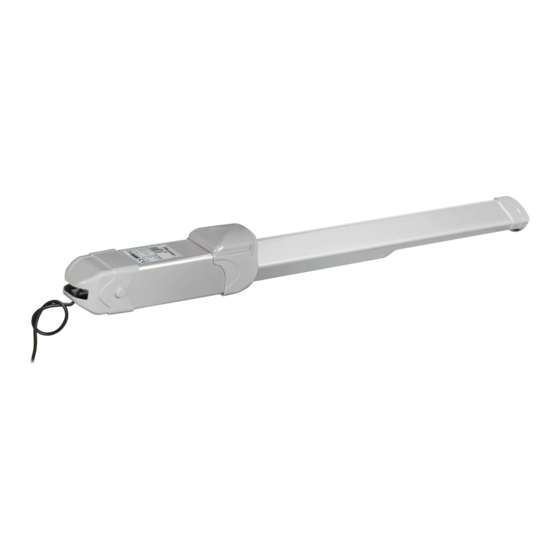

Electro-hydraulic operator, two-way hydraulic locking
Hide thumbs
Also See for HINDI 880:
- Instruction manual (13 pages) ,
- Installation manual (12 pages) ,
- Instruction manual (9 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for fadini HINDI 880
Summary of Contents for fadini HINDI 880

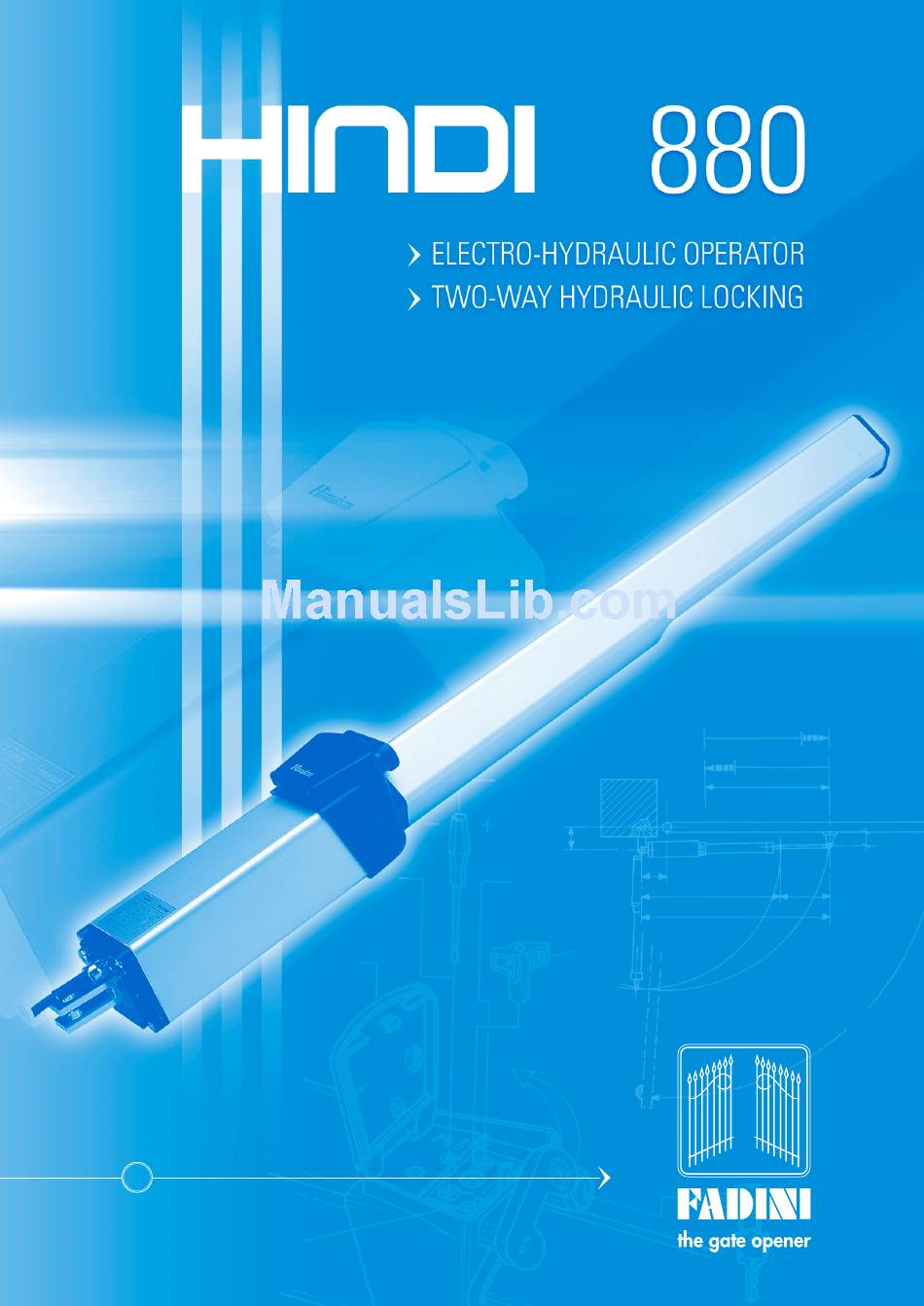

- Page 1 INSTALLATION MANUAL ®...
- Page 2 ELECTRIC MOTOR VALVE BODY ELECTRIC OIL RESERVOIR ASSEMBLY CABLE CUTAWAY GENERAL VIEW...
-
Page 3: Piston Assembly
OIL-HYDRAULIC OPERATOR FOR SWINGING GATES. ABOVE GROUND Two-way locking in “Open/Close” gate position PISTON ASSEMBLY PIC. 1... -
Page 4: Specifications
Keep to the following to achieve a perfectly working system. HINDI 880, strong, functional and easy to install, is designed to be fitted to swinging gates by means of two plates, one is to be fixed to the gate and the other one to the gate post, pillar or brick pier. Check parts as in picture No. 2. - Page 5 In events like power failure, HINDI 880 two- or one-way locking is designed to be released so that the gates can be pushed open by hand. Picture No. 4 shows how to do it. Lift the flap cover that protects the lock and open the top lid. Inside you will find the special release key part No.
- Page 6 REAR END BLOCK WITH FIXING PARTS RELEASE KEY REMOVABLE FOR EXTRA SECURITY REF. No. 1625 TWO-WAY LOCKING DEVICE SAFETY PRESSURE VALVE PROTECTION SPECIAL KEY AND LOCK BALL BEARING JOINT VALVE ENCLOSURE PLUG PIC. 7 Make sure that the distances A and B are A 130 mm and B 130 mm, the centre of the gate hinge and the centre of the rear bracket of the operator to be referred to respectively.
- Page 7 Fit the gates with an electric lock in case it is installed the non locking operator. With the two-way locking operator it is recommended that the gates are not wider than two meters each. Should they be more than two meters an electric lock is to be installed to help the gates to be firmly held in the close position.
-
Page 8: Junction Box
0.03A (beyond 100m use cables with 2.5mm Ø) 7 - Post with photocell projector POLO 44 8 - Electro-hydraulic operator HINDI 880 JUNCTION BOX 9 - Electric lock 10 - Post with photocell receiver POLO 44... - Page 9 PEDESTRIAN MODE ONE PULSE OPENS NOTE WELL: THIS PANEL IS TESTED TO OPERATE GATES ONLY ONE GATE LEAF ONLY THROUGH FADINI ACCESSORIES. NO WARRANTY IS ACKNOWLEDGED BY THE MANUFACTURER IN CASE THAT OTHER ACCESSORIES ARE USED OR NON CONFORMING ALL OPERATIONS PULSE TWICE CONSECUTIVELY APPLICATIONS ARE MADE WITHOUT THE MANUFACTURER’S...
- Page 10 PIC. 20 95° This page specifically refers to the special operators in the Hindi 880 range, ie. drwg. No. 1990 - 150 mm, drwg. No. 0987 - 400 mm stroke and drwg. No. 2552 braking in open/close cycles. Drwg. No. 1990...
-
Page 11: Technical Specifications
Max pressure ..................3 MPa (30 bars) Intermittent service..............S 3 Oil make...................Fadini A 15 by AGIP Temperature ..................... _ 25°C + 80°C Weight of HINDI 880 complete ................11 Kg Max. gate weight ...................150/180 Kg I.P. standards complete..................IP 553 Dimensions (L.xW.xH.) ..............1˙085x92x110 mm Duty cycle..........25 sec. -
Page 12: Mains Switch
The manufacturers reserve the right to change the products without any previous notice AUTOMATIC GATE MANUFACTURERS Via Mantova, 177/A - 37053 Cerea (Verona) Italy - Tel. +39 0442 330422 r.a. - Fax +39 0442 331054 - e-mail: info@fadini.net - www.fadini.net...
