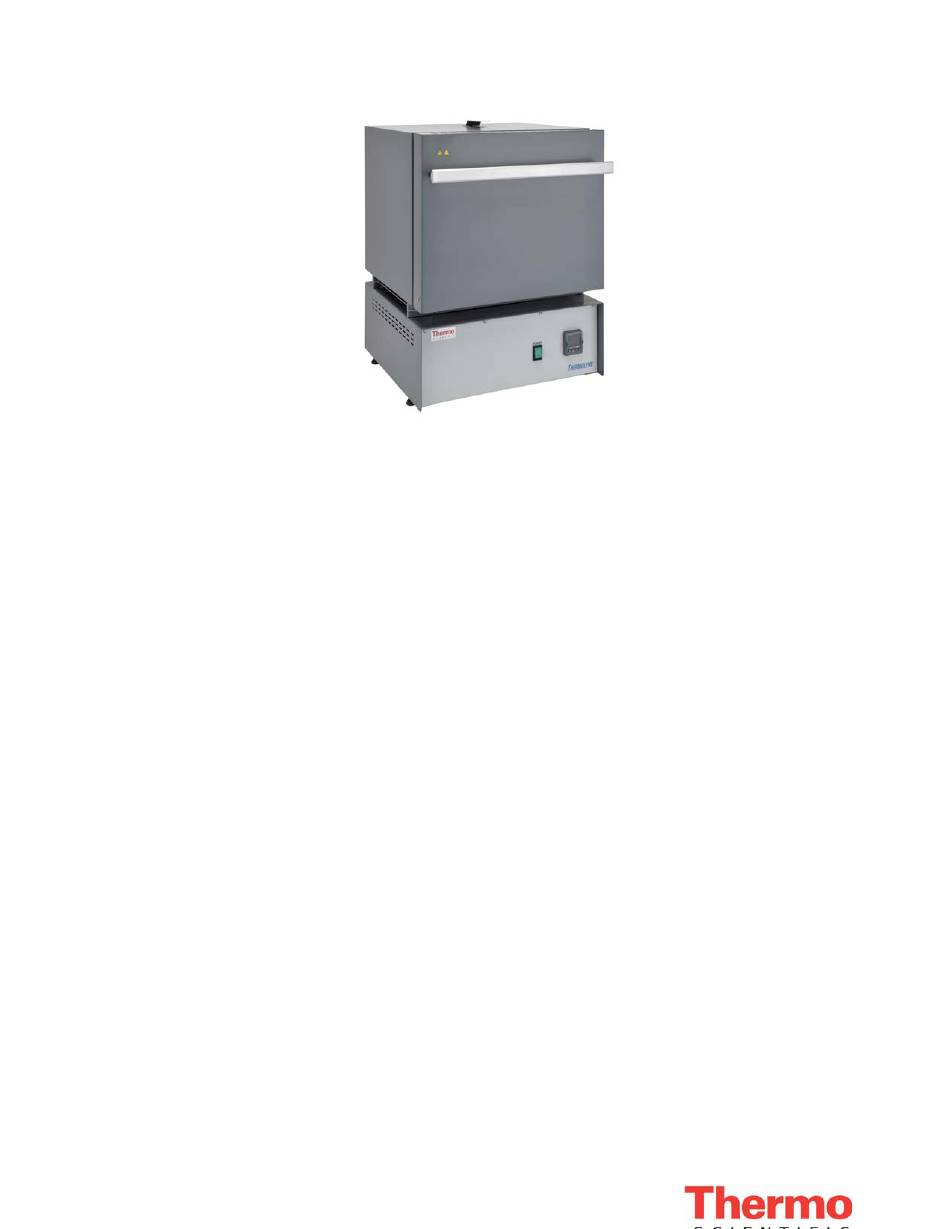

- Page 1 Thermo Scientific Thermolyne Furnace Premium Large Muffle/ Atmosphere Controlled Ashing Model Type: F6000 Installation and Operation Manual LT1249X1 Revision G October 2018...
- Page 2 © 2018 Thermo Fisher Scientific Inc. All rights reserved. Thermo Fisher Scientific Inc. provides this document to its customers with a product purchase to use in the product operation. This document is copyright protected and any reproduction of the whole or any part of this document is strictly prohibited, except with the written authorization of Thermo Fisher Scientific Inc.
- Page 3 Type F6000 Furnace OPERATION MANUAL AND PARTS LIST Series 1249 Single Setpoint Models F6010, F6010CN, F6018 Single Setpoint Models with OTP F6020C, F6020C-33, F6020C-33-60, F6020C-60, F6028C, F6028C-60 8 Segment Programmable Models with F6020C-33-60-80, F6020C-33-80, F6020C-60-80, F6020C-80, F6028C-60-80, F6028C-80 4 X 16 Segment Programmable Models F6030CM, F6030CM-33, F6030CM-33-60, with OTP &...
-
Page 4: Table Of Contents
Contents Chapter 1 Safety Information ..........5 Alert Signals. - Page 5 Contents Chapter 8 Single Ramp & Dwell ......... . 27 Functions.
- Page 6 Contents Chapter 11 Furnace Loading ..........51 Chapter 12 Preventive Maintenance .
- Page 7 Contents...
-
Page 8: Safety Information
Safety Information Contents • “Alert Signals” on page 6 • “Important Information” on page 6 • “Warnings” on page 6 • “Warning” on page 7... -
Page 9: Alert Signals
Important Information Your Thermo Scientific Thermolyne Type F6000 Model Furnace has been designed with function, reliability and safety in mind. It is your responsibility to install it in conformance with local electrical codes. -
Page 10: Warning
Safety Information Warning 3. Always wear safety glasses or a safety shield and high temperature gloves when loading or unloading the furnace. Long sleeved, fire retardant clothing and a fire retardant apron is also recommended. Warning This warning is presented for compliance with California Proposition 65 and other regulatory agencies and only applies to the insulation in this product. - Page 11 Safety Information Warning...
-
Page 12: Introduction
Introduction Contents • “Intended Use” on page 10 • “General Usage” on page 10 • “Principles of Operation” on page 10... -
Page 13: Intended Use
11.” Exceeding these limits will result in severely reduced element life. Intended Use The Type F6000 furnaces are general purpose laboratory and heat treating furnaces. For optimum element life, we recommend observing these temperature ranges: from 100°C (212°F) to 1093°C (2000°F) continuous use or from 1093°C (2000°F) to 1200°C (2192°F) for intermittent use. -
Page 14: General Specification
General Specification For F6000 Furnace Model # F6020C F6028C F6010 F6018 F6020C-33 F6028C-60 F6010CN F6020C-33-60 F6028C-60-80 F6020C-33-60-80 F6038CM F6020C-33-80 F6038CM-60 F6020C-60 F6020C-60-80 F6020C-80 F6030CM F6030CM-33-60 F6030CM-60 Dimensions Overall Width 19.25(48.9) 19.25(48.9) 19.25(48.9) 19.25(48.9) in (cm) Height 21 (53.3) 21 (53.3) 21 (53.3) -
Page 15: Environmental Conditions
General Specification Environmental Conditions Model # Oper. °F (°C) 212-2192°F 212-2192°F 212-2192°F 212-2192°F Temp.Range (100-1200°C) (100-1200°C) (100-1200°C) (100-1200°C) *212-1787°F *212-1787°F (*100-975°C) (*100-975°C) The maximum ramp rates for this furnace for heat up are: 12°C (22°F) per min. from 25°C-537°C (75°F-1000°F), 10°C (18°F) per min. from 537°C-1093°C (1000°F-2000°F). -
Page 16: Unpacking
Unpacking (-60) models are supplied with two stainless steel trays, handle and porcelain pegs. The Type 6000 furnaces do not come with a power cord because current requirements are too great to be handled by ordinary power cords and standard wall supply. - Page 17 Unpacking...
-
Page 18: Installation
Installation Contents • “Site Selection” on page 16 • “Electrical Connections” on page 16 • “Electrical Conditions in the EU” on page 17... -
Page 19: Site Selection
Installation Site Selection Be sure ambient temperature does not exceed 40°C (104°F). Ambient above this level may result in damage to the controller. Allow at least six inches of space between the furnace, at least 40 inches above the furnace and any combustible surface. This permits the heat from the furnace case to escape so as not to create a possible fire hazard. -
Page 20: Electrical Conditions In The Eu
Installation Electrical Conditions in the EU Electrical Conditions in the EU Electrical Conditions for operating the furnaces in the EU: The furnaces are intended for use at a network supply with a maximum system impedance of Zmax = 0.0325 Ohmat the point of connection, according to EN 61000-3-11 clause 6.2.2. The user has to ensure that the device is operated on a network supply that meets these requirements. - Page 21 Installation Electrical Conditions in the EU...
-
Page 22: Operation, All Models
Operation, All Models Contents • “Power Switch” on page 20 • “Cycle Light shown on the display” on page 20 • “Door Safety Switch” on page 20... -
Page 23: Power Switch
Operation, All Models Power Switch To avoid personal injury do not use in the presence of flammable or combustible chemicals; fire or explosion may result. This device contains components which may ignite such materials. Caution: Avoid Contact. To avoid burns, this furnace must not be touched on the exterior or interior surfaces during use or for a period of time after use. -
Page 24: Single Setpoint Models And Single Setpoint Models W/Otp
Single Setpoint Models and Single Setpoint Models w/OTP Contents • “Basic Operation” on page 22 • “Buttons and Indicators” on page 23 • “To View or change the Setpoint” on page 23 • “To View the Display Units” on page 23 •... -
Page 25: Basic Operation
Single Setpoint Models and Single Setpoint Models w/OTP The single setpoint model w/OTP furnace controller is a single setpoint controller, which provides a single digital display to indicate the current chamber temperature or setpoint temperature. This temperature controller features sensor break protection, self-tuning capability and over temperature protection (OTP) with an additional OTP relay device. -
Page 26: Buttons And Indicators
Single Setpoint Models and Single Setpoint Models w/OTP Buttons and Indicators Buttons and Indicators OP1 (Output 1): Illuminates when the output is ON (normally heating). The cycle light on the display will turn on and off as the furnace reaches the setpoint. OP2 (Output 2): Illuminates when the output is ON (normally cooling). -
Page 27: Alarms
Single Setpoint Models and Single Setpoint Models w/OTP Alarms TM.CFG: Timer configuration. TM.RES: Timer Resolution (minutes and hours). THRES: Timer start threshold (default is OFF). END.T: Timer End Type (default is DWELL). Pid List Pb: Proportional band (in display units). ti: Integral time in seconds.... -
Page 28: Tuning
Single Setpoint Models and Single Setpoint Models w/OTP Tuning Tuning This controller incorporates a self-tuning feature, which determines the optimum control parameters for the best temperature accuracy with your load and setpoint. Use this feature the first time you use your furnace and each time you change either your setpoint or the type of load you are heating. - Page 29 Single Setpoint Models and Single Setpoint Models w/OTP Tuning...
-
Page 30: Single Ramp & Dwell
Single Ramp & Dwell Contents • “Functions” on page 28 • “Program Overview” on page 29 • “SetPoint Rate Limit Setup” on page 30 • “Running the Program” on page 30 • “Holding the Program” on page 30 • “Stopping the Program” on page 30 •... -
Page 31: Functions
Single Ramp & Dwell Functions Functions This type of controller has two step ramp and dwell programming capabilities. The Ramp and Dwell can be configured to three different modes. 1. Mode 1 (DWELL) The dwell time begins once the setpoint reaches the set threshold. The END TYPE action is executed when the dwell timer reaches the end. -
Page 32: Program Overview
Single Ramp & Dwell Program Overview 3. Mode 3 (SF.ST) Starts automatically on power up. This is a soft-start function. If the PV is below the Soft Start Threshold, then the power is limited to the Soft Start Limit until the threshold is met. -
Page 33: Setpoint Rate Limit Setup
Single Ramp & Dwell SetPoint Rate Limit Setup The above four options is to set what is expected of the unit to do once the program is complete. For example, if it is desired for the controller to stop doing anything at all once the timer is finished, set End.T to OFF. -
Page 34: Verifying A Running Program
Single Ramp & Dwell Verifying a Running Program Verifying a Running Program Press the SCROLL button until “T.SAT” is displayed. The display will show “run” if the program is running, “hold” if it is paused or “res” if it is not running. Press the PAGE button to display Actual temperature. - Page 35 Single Ramp & Dwell Verifying a Running Program...
-
Page 36: Segment & 4X16 Segment Programmable Models W/Otp
8 Segment & 4x16 Segment Programmable Models w/OTP Contents • “Basic Operation” page 35 • “To Change the Setpoint” page 35 • “To View Display Units” page 35 • “To View the % Output Power” page 35 • “Buttons and Indicators” page 35 •... - Page 37 8 Segment & 4x16 Segment Programmable Models w/OTP Display Window Output 1 AUTO/MAN Button Upper Display Lower Display RUN/HOLD Button UP ARROW Button PAGE Button SCROLL Button DOWN ARROW Button 4x16 & 8 Segment Programmable Models with OTP The 8 segment programmable controller consists of a microprocessor based three-mode PID (Proportional, Integral, and Derivative), programmable temperature controller with over-temperature protection and appropriate output switching devices to control the furnace.
-
Page 38: Basic Operation
8 Segment & 4x16 Segment Programmable Models w/OTP Basic Operation Basic Operation When the controller is turned ON, it will perform a short self-test and then change to the HOME DISPLAY. The HOME DISPLAY shows the measured temperature (process value) in the upper display and the desired value (setpoint) in the lower display. -
Page 39: Controller Parameters
8 Segment & 4x16 Segment Programmable Models w/OTP Controller Parameters Controller Parameters Home Display °C: measured temperature in Celsius. Temperature units cannot be changed without entering the configuration. Contact Customer Service if a different temperature unit is required. OP: % output power demand; displayed in lower display (cannot be changed). C.id: Controller identification number. -
Page 40: Alarms
8 Segment & 4x16 Segment Programmable Models w/OTP Alarms tYPE: Press the UP or DOWN ARROW to select the segment type [End (end of program), rmP.r = ramp rate (ramp to a specified setpoint at a set rate), rmp.t = ramp time (ramp to a specified temperature in a set time), dwEll (to maintain a constant temperature for a set time), StEP (climb instantaneously from current to specified temperature), cALL (to call a program as a subroutine, available only on 4x16 programmable models)]. -
Page 41: Sensor Break Protection
8 Segment & 4x16 Segment Programmable Models w/OTP Sensor Break Protection S.br: Sensor break: check that sensor is connected correctly. L.br: Loop Break: Check that the heating circuits are working properly. Ld.F: Heater Circuit Fault: indication of either an open or short solid sate relay, a blown fuse, missing supply or open circuit heater. -
Page 42: Programming The Controller
8 Segment & 4x16 Segment Programmable Models w/OTP Programming the Controller Programming the Controller The controller is capable of varying temperature or process value with time through programming. A program is stored as a series of segments and can be run once, repeated a set number of times or run continuously. -
Page 43: Rmp.u: Setting Ramp Units
8 Segment & 4x16 Segment Programmable Models w/OTP Programming the Controller 2. Press the SCROLL button until display reads, “Hb.U.” 3. Press the UP or DOWN button to enter a holdback value. rmP.U: Setting Ramp Units Ramp units are time units which are used in “rmP.r” segments (ramp to a setpoint at degrees per second, minute or hour) and “rmP.t”... - Page 44 8 Segment & 4x16 Segment Programmable Models w/OTP Programming the Controller rmP.r (Ramp) To ramp linearly at a set rate to a specified temperature: 1. Press the PAGE button until you reach the program list (ProG LiSt). 2. Press the SCROLL button until display reads,”tYPE.” 3.
- Page 45 8 Segment & 4x16 Segment Programmable Models w/OTP Programming the Controller StEP To climb instantaneously from the current temperature to a specified temperature. 1. Press the PAGE button until you reach the program list (ProG LiSt). 2. Press the SCROLL button until display reads, tYPE.” 3.
-
Page 46: Setting The Target Setpoint
8 Segment & 4x16 Segment Programmable Models w/OTP Running a Program (8 Segment Programmable Models) To end or repeat a program: 1. Press the PAGE button until you reach the program list (ProG LiSt). 2. Press the SCROLL button until display reads, “tYPE.” 3. -
Page 47: Tuning Your Furnace
8 Segment & 4x16 Segment Programmable Models w/OTP Tuning your Furnace Tuning your Furnace The purpose of tuning your furnace is to match the characteristics of your controller to the characteristics of the process being controlled. Good control is evidenced by: stable, straight-line control of the setpoint temperature with no fluctuations;... -
Page 48: Autotuning
8 Segment & 4x16 Segment Programmable Models w/OTP Gain Scheduling Tuning The two sets of PID values can be manually set or automatically tuned. To tune automatically you must tune above and below the transfer point G.SP. If the process value is below the transfer point G.SP, the calculated values will automatically be inserted into the (SEt 1) set and if the process value is above G.SP, the calculated values will automatically be inserted into the (SEt 2). - Page 49 8 Segment & 4x16 Segment Programmable Models w/OTP Gain Scheduling...
-
Page 50: Chapter 10 Installation And Operation Of Air Control
Installation and Operation of Air Control Installation Compressed Air Hook-Up 1. A 0.250 inch tube fitting is located at the rear of the furnace. 2. Using 0.250 inch I.D. rubber tubing, connect a piece of tubing from this input fitting to a corresponding 0.250 inch fitting located on the regulated side of a pressurized air service line. -
Page 51: Operation
Installation and Operation of Air Control Operation Target SP value is 750°C (Dwell 2) value is 120 minute (Ramp 3) value is END (4 program models) Cycles value is 1 Included with this furnace are two stainless steel trays which will hold crucibles of quartz jars. Use the appropriate side for the type of crucible you are using. - Page 52 Installation and Operation of Air Control Operation A flow rate of 40 to 45 liters per minute will provide three air exchanges of the chamber per minute. Appropriate exhaust must be provided to remove smoke and gases produced in an ashing procedure.
- Page 53 Installation and Operation of Air Control Operation...
-
Page 54: Chapter 11 Furnace Loading
Furnace Loading For best results, use only the center two-thirds of the furnace chamber. Do not overload your furnace chamber. If the load is to be heated uniformly, it should not occupy more than two-thirds of the furnace chamber. Failure to observe this caution could result in damage to furnace components. - Page 55 Furnace Loading...
-
Page 56: Chapter 12 Preventive Maintenance
Preventive Maintenance Disconnect from the power supply prior to maintenance and servicing. This unit is equipped with a venting system on the top of the furnace. This is for the removal of fumes from the chamber of the unit. Contamination is a major cause of element failure, therefore, removes all fume forming material before heating. - Page 57 Preventive Maintenance General Cleaning Instructions...
-
Page 58: Chapter 13 Maintenance And Servicing
Maintenance and Servicing Contents • “To Replace a Heating Element” on page 56 • “To Replace a Platinel II Thermocouple” on page 56 • “To Replace a Chromel/Alumel Thermocouple” on page 56 • “To Replace Solid State Relay” on page 57 •... -
Page 59: To Replace A Heating Element
Maintenance and Servicing To Replace a Heating Element To Replace a Heating Element Replace fuses with same type and rating. Perform only maintenance described in this manual. Contact an authorized dealer or our factory for parts and assistance. 1. Disconnect furnace from power supply. 2. -
Page 60: To Replace Solid State Relay
Maintenance and Servicing To Replace Solid State Relay 3. Remove clip holding thermocouple in place (1 screw) and remove the two screws on the thermocouple terminals. 4. Remove the thermocouple. Pull thermocouple straight out of hole in the chamber first to avoid damage to the insulation. -
Page 61: To Realign Door Switch
Maintenance and Servicing To Realign Door Switch 8. To realign door switch see “To Realign Door Switch” section. 9. Slide control section back in and replace the screws described in Step 2. 10. Reconnect to power supply. 11. Test operation of door switch. (See “To Realign Door Switch” section.) To Realign Door Switch 1. -
Page 62: Chapter 14 Troubleshooting
Troubleshooting The Troubleshooting section is intended to aid in defining and correcting possible service problems. When using the chart, select the problem category that resembles the malfunction. Then proceed to the possible cause’s category and take necessary corrective action. PROBLEM PROBABLE CAUSE CORRECTIVE ACTION Check furnace connection to power... - Page 63 Troubleshooting One or two heating elements are burned out. Replace burned out elements. Lighten load in chamber to allow heat to Heavy load in chamber. circulate. Slow heat-up. Install line of sufficient size and proper Low line voltage. voltage (isolate furnace from other electrical loads).
-
Page 64: Chapter 15 Replacement Parts List
Replacement Parts List Listed below is the common replacement parts for all models of the 6000 furnace. The far left column contains the letter designation found on the circuit diagrams. Be sure to identify the correct part number with respect to the exact model number found on your furnace. REPLACEMENT PART DESCRIPTION MODELS USED ON... - Page 65 Replacement Parts List REPLACEMENT PART DESCRIPTION MODELS USED ON RYX57 Relay All models except F6010, F6010CN, F6010-33, F6018 RYX34 Solid State Relay All models SWX144 Power Switch All models SW1172X1 Micro Switch All models except F6010, F6010CN, F6018 SWX163 Micro Switch (2) F6010, F6010CN, F6018 TC1249X1 Thermocouple, Type K...
-
Page 66: Chapter 16 Ordering Procedures
All parts listed herein may be ordered from the Thermo Scientific dealer from whom you purchased this unit or can be obtained promptly from the factory. When service or replacement parts are needed we ask that you check first with your dealer. - Page 67 Ordering Procedures...
-
Page 68: Chapter 17 Wiring Diagrams
Wiring Diagrams Contents • “Single Setpoint Control w/OTP” on page 66 • “Single Setpoint Control w/OTP” on page 67 • “8 Segment Programmable Control” on page 68 • “4 X 16 Segment Programmable Control” on page 69... -
Page 69: Single Setpoint Control W/Otp
Wiring Diagrams Single Setpoint Control w/OTP Single Setpoint Control w/OTP... -
Page 70: Single Setpoint Control W/Otp
Wiring Diagrams Single Setpoint Control w/OTP Single Setpoint Control w/OTP LINE LOAD... -
Page 71: Segment Programmable Control
Wiring Diagrams 8 Segment Programmable Control 8 Segment Programmable Control LINE LOAD... -
Page 72: 4 X 16 Segment Programmable Control
Wiring Diagrams 4 X 16 Segment Programmable Control 4 X 16 Segment Programmable Control LINE LOAD... - Page 73 Wiring Diagrams 4 X 16 Segment Programmable Control...
- Page 74 Important For your future reference and when contacting the factory, please have the following information readily available: Model Number: Serial Number: Date Purchased: The above information can be found on the dataplate attached to the equipment. If available, please provide the date purchased, the source of purchase (manufacturer or specific agent/rep organization), and purchase order number.
- Page 75 LT1249X1 Rev.G thermoscientific.com © 2018 Thermo Fisher Scientific Inc. All rights reserved. All trademarks are the property of Thermo Fisher Scientific Inc. and its subsidiaries. Specifications, terms and pricing are subject to change. Not all products are available in all countries. Please consult your local sales representative for details. Thermo Fisher Scientific Inc.
