Finnpipette
COLOUR
®
FIXED VOLUME
INSTRUCTIONS FOR USE
Thermo Electron Oy
P.O.Box 100, Fin-01621 Vantaa, Finland
Tel. +358-9-329 100, fax -358-9-3291 0414
www.thermo.com/finnpipette

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Finnpipette and is the answer not in the manual?

Questions and answers

Related Manuals for Thermo Scientific Finnpipette

Summary of Contents for Thermo Scientific Finnpipette

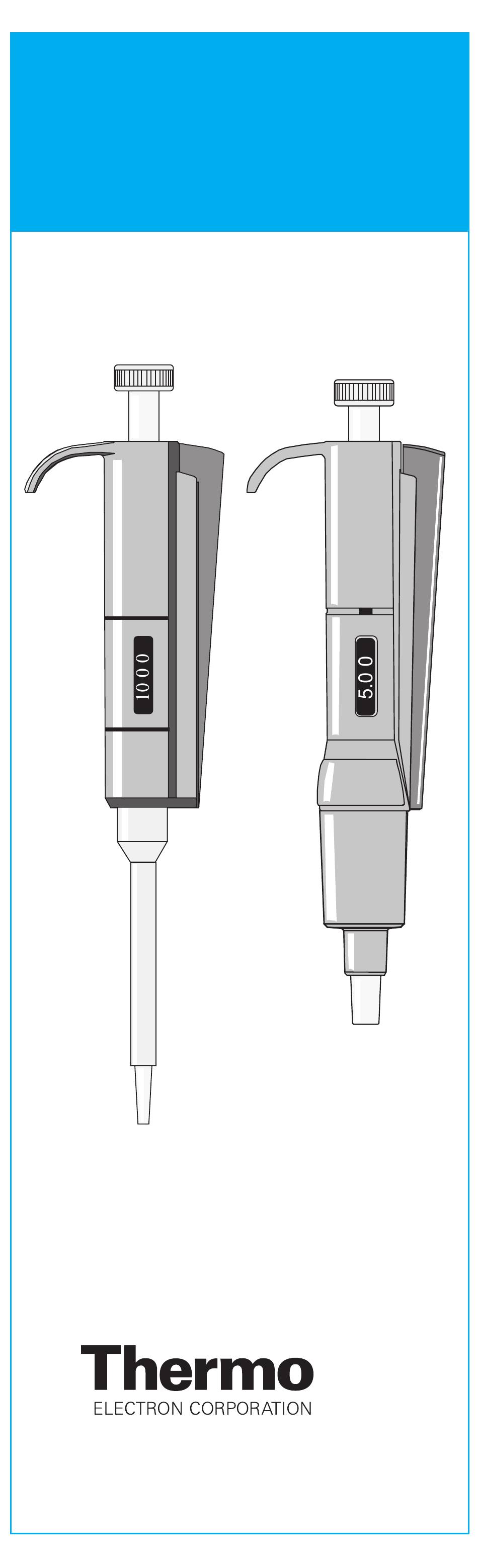

  • Page 1 Finnpipette COLOUR ® FIXED VOLUME INSTRUCTIONS FOR USE Thermo Electron Oy P.O.Box 100, Fin-01621 Vantaa, Finland Tel. +358-9-329 100, fax -358-9-3291 0414 www.thermo.com/finnpipette...
  • Page 2 PRODUCT DESCRIPTION The FINNPIPETTE COLOUR FIXED VOLUME is a general purpose micropipette for sampling and dispensing accurate amounts of liquids. It operates on an air displacement principle (i.e. an air interface) and uses detachable, disposable tips. FINNPIPETTE COLOUR FIXED VOLUME pipettes cover a volume range of 5-5000 µl.
  • Page 3 PIPETTING TECHNIQUES FIGURES 2-5: A = READY POSITION B = FIRST STOP C = SECOND STOP FORWARD TECHNIQUE (Fig.2) 1. Depress the operating button to the first stop. 2. Immerse the tip slightly about 1 cm below the surface of the solution and release the operating button slowly.
  • Page 4 REPETITIVE TECHNIQUE (Fig.4) The repetitive technique offers a rapid and simple procedure for repeated delivery of the same liquid with the same volume. 1. Depress the operating button all the way down to the second stop. 2. Immerse the tip slightly about 1 cm below the surface of the solution and release the operating button slowly.
  • Page 5 MAINTENANCE SHORT TERM CHECKING The pipette should be checked at the beginning of each day for any dust or dirt on the outside surfaces of the pipette. Particular attention should be paid to the tip cone. Solvents should not be used for cleaning the pipette.
  • Page 6 CALIBRATION All Finnpipettes are factory calibrated and adjusted to give the volumes as specified with distilled or deionized water. Normally, the pipettes do not need adjustment, but they are constructed to permit recalibration (Fig.8) and adjustment for liquids of different temperature and viscosity.
  • Page 7 Volume Accuracy Precision µl µl s.d.* µl ±0.04 ±4.0 0.04 ±0.05 ±2.5 0.04 ±0.07 ±1.4 0.07 ±0.09 ±0.9 0.08 ±0.12 ±0.6 0.10 ±0.15 ±0.6 0.13 ±0.3 ±0.6 ±0.4 ±0.4 ±0.8 ±0.4 ±1.0 ±0.4 ±1.5 ±0.3 1000 ±3.0 ±0.3 2000 ±6.0 ±0.3 3000 ±9.0...
  • Page 8 3. Sample of Finntip 4. Tube grease 5. Instruction Manual CAUTION! The Finnpipette is designed to allow easy in-lab service. If you, however, want to send the pipette to us or to our local representative for service, please enclose a list of any infectious, radioactive or otherwise hazardous materials that have been pipetted.
  • Page 9 TROUBLE SHOOTING The accompanying table is a guide to possible problems and their solutions. Defect Possible Solution reason Leakage Tip incorrectly Attach firmly attached Foreign bodies Clean tip between tip cones attach and tip cone new tips Foreign bodies Clean and between the grease O-ring piston, the O-...
  • Page 10 CONVERSION TABLE Value of the conversion factor Z (µl/mg), as a function of temperature and pressure, for distilled water. Temper- Air pressure ature °C hPA (mbar) 1013 1067 1.0018 1.0018 1.0019 1.0019 1.0020 1.0020 15.5 1.0018 1.0018 1.0019 1.0020 1.0020 1.0021 1.0019 1.0020 1.0020 1.0021 1.0021 1.0022 16.5 1.0020 1.0020 1.0021 1.0022 1.0022 1.0023...
  • Page 11 1 2 3 4 1 2 3 4 1 2 3 4 1 2 3 4 5 -11-...
  • Page 12 -12-...
  • Page 13 2900510 -13-...
  • Page 14 201- 11-40µl 0,5-10µl 41-200µl 10589070 1000µl Tip ejector 2201520 10589450 1130570 1053840 2202310 1131380 1056630 1130560 1053870 1130510 1131090 1130550 1053860 1053860 1054260 1090610 1030160 10589940 Gray 1030020 2x1030170 10588800 2x1030060 10588810 10588800 10588820 10588790 2204780 5 µl 2204790 10 µl 2204800 20 µl 2204810...
  • Page 15 10589070 10590531 1130570 1056630 2205500 10590580 10590561 1030230 10590520 10590540 2205490 10590600 SPARE PARTS 1- 5 ml -15-...
  • Page 16 TIP ORDERING INFORMATION Code Finntip Volume 9400310 0,2 - 10 µl 1000/bag 9400300 0,2 - 10 µl 10x96/rack 9400130 200 Ext 5 - 200 µl 10x96/rack 9400260 250 Univ. 0,5 - 300 µl 10x96/rack 9401250 5 -300 µl 10x96/rack 9401070 1000 100 -1000 µl 200/box...
