Creality BL Touch Manual

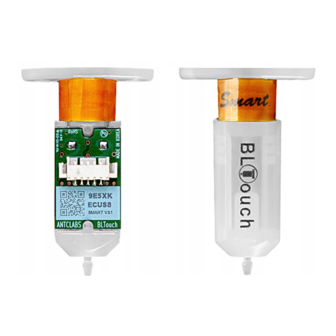

Auto bed leveling sensor for 3d printer, apply to 32-bit motherboards
Hide thumbs Also See for BL Touch:

Advertisement

Quick Links

Download this manual
Manual
AUTO BED LEVELING SENSOR FOR 3D PRINTER
Apply to 32-bit motherboards

Advertisement

loading
Need help?

Need help?

Do you have a question about the BL Touch and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Creality BL Touch

Summary of Contents for Creality BL Touch

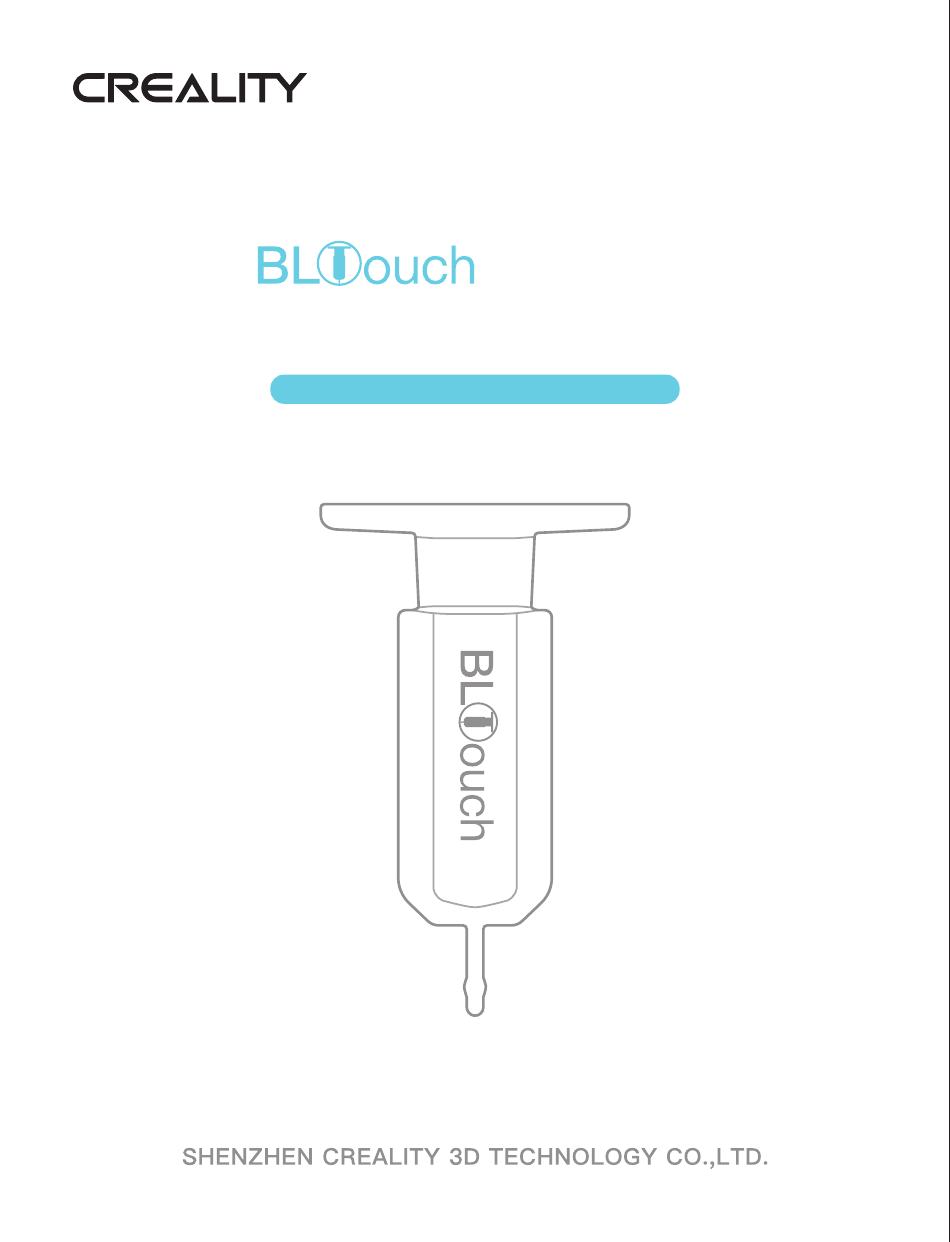

  • Page 1 Manual AUTO BED LEVELING SENSOR FOR 3D PRINTER Apply to 32-bit motherboards...

  • Page 2: Packing List

    1. Packing List Note: During BL Touch installation, remember to pull out the Z endstop switch for auto leveling. Otherwise it won't work. Connectors*1Pcs BL Touch*1Pcs Tie*3Pcs Application: Ender-3 | Ender-3s | CR-10 Ender-3Pro | Ender-5/5S/5Pro Application: Application: Ender-3 MAX...

  • Page 3: Circuit Principle

    2. Circuit Principle Application: Ender-3 Series | Ender-5/5S/5Pro | CR-10 | Ender-6 (No rack)
  • Page 4 3. Update Firmware （To make surethe firmware can be flashed successfully, please format the SD card before flashing the firmware）...
  • Page 5 Ender-x configuration-whether it comes with xxxxxx ... filament sensor or not). Ender-x xxxxxx-vxxx-BLTOUCH Each printer model corresponds to the BL Touch firmware, please check appendix 1. Note: Every machine has different firmware files. File download website: https: www.creality.com/download/ 3. Copy the firmware to the SD card.
  • Page 6 4. Insert SD card. 5. Insert the power cord and press the switch. Note: Every machine has its own operation interface. 6. Wait for the firmware to complete upgrade. (about 10 seconds).
  • Page 7 4. Install BL Touch 1. Insert connectors into 5 Pin Port. 2. Install BL Touch on the rack with 2 M3*6 screws.
  • Page 8 3. Loosen all fan cover screws, install the BL Touch rack on the corresponding position with 2 M3*8 screws. 4. Tie the BL Touch cable together with other printer cables like the above picture shown.

  • Page 9: Circuit Wiring

    5. Circuit Wiring Note: Unplug the cable from Z endstop/limit switch.
  • Page 10 6. Steps 0.1mm...
  • Page 11 Info Screen Main Prepare Move Axis Control Auto Home No TF Card Set Home Offsets About Printer Disable Steppers Main Motion Move Axis Move X Auto Home Move Y Set Home Offsets Move Z Disable Steppers Extruder Move Z: -003.0...
  • Page 12 Auto Home No TF Card Set Home Offsets About Printer Disable Steppers Info Screen Main Prepare Temperature Control Motion No TF Card Bed Leveling About Printer Filament BL Touch Bed Leveling Probe Z Offset: Filament -0.300 Store Settings Load Settings...
  • Page 13 3. Select Bed Leveling, then choose Level Bed. O p e r a t i o n ： C o n t r o l → B e d L e v e l i n g → L e v e l B e d . （Different 3D printers may have different numbers of touching points for automatic leveling.
  • Page 14 4. Model Printing After the automatic leveling, user can do a trial print to verify the leveling. Operation：Print from SD Card→Model Test (Name and file of the testing model shall be prepared by user.） Example: Info Screen Main Prepare Ender3 Bed Level Test Control meilanz j-29h-107g.gc Print from TF...
  • Page 15 Main Info Screen Temperature Prepare Motion Control Bed Leveling No TF Card Filament About Printer BL Touch Bed Leveling Probe Z Offset: Filament -3.100 Store Settings Load Settings Note: Every machine has its own operation interface.

  • Page 16: Software Settings

    7. Software Settings 1. Open Slicer. 2. Settings → Printer → Manage Printers. 3. Machine Settings.
  • Page 17 4. Change “G28” to “G28G29”...
  • Page 18 Appendix 1: Condition 1 Model Condition 2 Firmware Version BLTouch without Ender-3-Marlin2.0.1-V1.1.2-BLTouch Adapter Board 4.2.2 32- BLTouch with Ender-3-Marlin2.0.1-V1.3.1-BLTouch bit Mothe- Adapter Board rboard Firmware BLTouch with Ender-3-Marlin2.0.1-V1.4.1-BLTouch-Filament Adapter Board + Filament Sensor Ender-3 BLTouch without Ender-3-Marlin2.0.1-V1.1.2-BLTouch- Adapter Board TMC2225 4.2.7 32- bit Mothe- BLTouch with...
  • Page 19 BLTouch without Ender-3 V2-Marlin-2.0.1-V1.1.1-BLTouch(1) Adapter Board 4.2.2 32- Ender-3 V2-Marlin-2.0.1-V1.3.1-BLTouch bit Mothe- BLTouch with rboard Adapter Board Firmware BLTouch with Ender-3 V2-Marlin-2.0.1-HW-4.2.2- Adapter Board + mainboard-V1.1.2-Compatible with BLTouch Filament Sensor and filament detection Ender- 3 V2 BLTouch without Ender-3 V2-Marlin-2.0.1-V1.1.1-LTouch- Adapter Board TMC2225 4.2.7 32-...
  • Page 20 HW-V4.2.7-SW-V1.1.1 BL touch- Mother- ter Board English board） Firmware Ender- BLTouch BLTouch Ender-5PlusBLTouch_0904_ Firmware Firmware V1.70.2 BL.hex 5plus BLTouch BLTouch Ender-6 Ender-6-V1.0.4.9-BLTouch Firmware Firmware Note: Creality will launch the newest firmware version on www.creality.com/download. Please download the corresponding firmware on official website.
  • Page 21 Appendix 2: Frequently Asked Questions Resolution Red LED(Red Led Duty 100%)is on, but I can’ t see A Signal line(orange) is unconnected. Please the Blue LED. check the Orange one. 1).Message indicating poor wiring on the power line (red). Please check the wiring status. You may need to repair or reinstall the cable;...
