- Page 1 User Manual POC-W243 Series 23.8" TFT LCD Point-of-Care Terminal with Intel® Core™ i7 Processor...
- Page 2 Note! A NOTE provides additional optional information intended to avoid inconvenience during operation. Part No. 2008CW2400 Edition 1 Printed in Taiwan September 2021 POC-W243 Series User Manual...
- Page 3 The equipment should only be repaired or maintained by qualified service per- sonnel. We recommend that a service contract be obtained with Advantech Customer Service in order for all repairs to be carried out by Advantech. Other- wise, the correct functioning of the equipment may be compromised.
- Page 4 Mount installation instructions are provided in Appendix A. Caution! When servicing the device, always use replacement parts that are quali- fied to Advantech standards. Advantech Medical cannot warrant or endorse the safe performance of third-party replacement parts for use with our medical device.
- Page 5 IEC 60601-1-certified equipment in the patient environment and IEC 60XXX-certified equipment outside of the patient environ- ment. If in doubt, consult Advantech’s technical services department or your local sales representative. Caution! Use suitable mounting apparatus to avoid risk of injury.
- Page 6 The equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the user manual, it may cause harmful interference to radio commu- nications. POC-W243 Series User Manual...
- Page 7 Otherwise, the correct func- tioning of the device may be compromised. Additional Information and Assistance Contact your distributor, sales representative, or Advantech's customer service cen- ter for technical support if you require additional assistance. Please have the follow- ing information ready before calling: Product name and serial number ...
- Page 8 No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei, Taiwan 114, R.O.C. TEL: (02) 2792-7818 Distributed in Europe by Advantech Europe GmbH Kolberger Straße 7 D-40599 Düsseldorf, Germany Tel: 49-211-97477350 Fax: 49-211-97477300 Visit Advantech at www.advantech.com or www.advantech.com.tw if you require more information. POC-W243 Series User Manual viii...
-
Page 9: Table Of Contents
Operation and Safety ......17 General Safety Guide................18 Protect the Optical Drive ................. 18 Thermal Management ................18 Disconnect the Power ................19 Appendix A VESA Mounting........21 VESA Mount Installation ................. 22 Figure A.1 VESA Mount Bracket..........22 POC-W243 Series User Manual... - Page 10 POC-W243 Series User Manual...
-
Page 11: Chapter 1 General Information
Chapter General Information... -
Page 12: Introduction
Introduction The POC-W243 series of point-of-care (POC) terminals feature an Intel® Core™ i7 processor, 23.8" widescreen TFT LCD panel, 1 x VGA, 1 x HDMI-out, 1 x LAN, 2 x COM, 4 x USB 2.0, 1 x 24-bit stereo audio controller, and 2 x onboard 10/100/1000 PCI-e Ethernet controllers. - Page 13 100x100, 75x75 Windows 7/Windows 8.1 Industry Pro/Windows Operating System 10 IoT Memory Up to 2 x 32GB DDR4 SODIMM Storage 2.5” SATA3 SSD 128GB, 5V/1.5A Optional Configuration Bluetooth RTC Battery Panasonic BR2032 Touch Panel 23.8'” PCTSP POC-W243 Series User Manual...
-
Page 14: System Diagram
Dimensions: 583 x 386 x 69 mm/22.95 x 15.19 x 2.71 in VESA Mount: 75x75, 100x100 Screw Type: M4 x 12L max. Figure 1.2 VESA Mount Installation Warning! Use suitable mounting apparatus to avoid risk of injury. POC-W243 Series User Manual... -
Page 15: Optional Modules
CPU and output to the LCD panel, accessories, and/or peripheral devices. Addi- tionally, data can be stored in system memory, which ensures all data and system configuration settings are retained even when the system is powered off. POC-W243 Series User Manual... -
Page 16: Intended User Profile
Mild vision impairment or vision corrected to logMAR 0,2 (6/10 or 20/32) – One arm/hand capable of holding and operating the device – Average degree of aging-related short-term memory impairment – Up to 40% hearing impairment; or 60% hearing capability at 500 ~ 2 kHz POC-W243 Series User Manual... -
Page 17: Chapter 2 System Setup
Chapter System Setup... -
Page 18: Quick System Tour

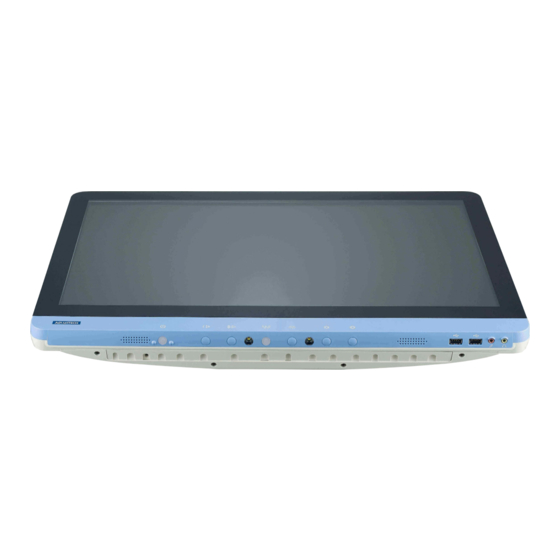

When placed upright, the front panel of the POC-W243 terminal appears as shown in Figure 2.1. 2.1.1 Front View Figure 2.1 POC-W243 Front View Front View LCD panel with touchscreen Power symbol with LED indicator POC-W243 Series User Manual... -
Page 19: Rear View
VGA, Ethernet, and USB ports. Figure 2.2 POC-W243 Rear View Figure 2.3 I/O Layout View Note! The equipotential terminal must be linked to the hospital grounding/ earthing mechanism before system boot up to protect the operator and device. POC-W243 Series User Manual... -
Page 20: Installation Procedures
Warning! POC-W243 is supplied by a 100-watt power adapter, as shown in Figure 2.4. If the POC-W243 terminal is connected to a medical-grade power adapter, customers must ensure legal and regulatory compliance and that the device meets the standards compliance requirements for this hardware. POC-W243 Series User Manual... -
Page 21: Ground Pin Connection
(POST). If a discrepancy is identified, an error message will be displayed onscreen, and users will be prompted to run the setup program. POC-W243 Series User Manual... -
Page 22: Software Installation
AC power is connected and the switches are on, but the system will not bootup If the POC-W243 terminal does not operate according to the user manual or is func- tioning abnormally, contact your distributor, local sales representative, or Advantech’s customer service center for technical support. POC-W243 Series User Manual... - Page 23 Guidance and Manufacturer’s Declaration – Electromagnetic Emissions POC-W243 series terminals are intended for use in the electromagnetic environment spec- ified below. The customer or user of the POC-W243 series should assure that it is used in such an environment. Electromagnetic environment –...
- Page 24 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity POC-W243 series terminals are intended for use in the electromagnetic environment spec- ified below. The customer or user of the POC-W243 series should assure that it is used in such an environment. IEC 60601 test...
- Page 25 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The POC-W243 series terminals are intended for use in the electromagnetic environment specified below. The customer or user of the POC-W243 series should assure that it is used in such an environment. Immunity...
- Page 26 If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the POC-W243 terminal. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m. POC-W243 Series User Manual...
-
Page 27: Chapter 3 Operation And Safety
Chapter Operation and Safety... -
Page 28: General Safety Guide
Do not block the heatsink with any material. Warning! Do not place the POC-W243 terminal on a pillow or other soft material when powered on because the material may block airflow and cause the device to overheat. POC-W243 Series User Manual... -
Page 29: Disconnect The Power
Never place anything on the case before powering off the device. Never power on the device if any internal or external components have been removed. Operating the device when the case is open or compo- nents are missing can be dangerous and damage the hardware. POC-W243 Series User Manual... - Page 30 POC-W243 Series User Manual...
-
Page 31: Appendix Avesa Mounting
Appendix VESA Mounting... -
Page 32: Vesa Mount Installation
VESA Mount Installation The POC-W243 series terminals support VESA mounting, which allows system inte- grators to conveniently integrate the device into various computing infrastructures. To prevent unreliable and dangerous mounting, only use mount brackets provided by Advantech. Mount installation should be conducted by a qualified service technician. Contact Advantech Customer Service or your sales representative if you need this service. - Page 33 POC-W243 Series User Manual...
- Page 34 No part of this publication may be reproduced in any form or by any means, such as electronically, by photocopying, recording, or otherwise, without prior written permission from the publisher. All brand and product names are trademarks or registered trademarks of their respective companies. © Advantech Co., Ltd. 2021...
