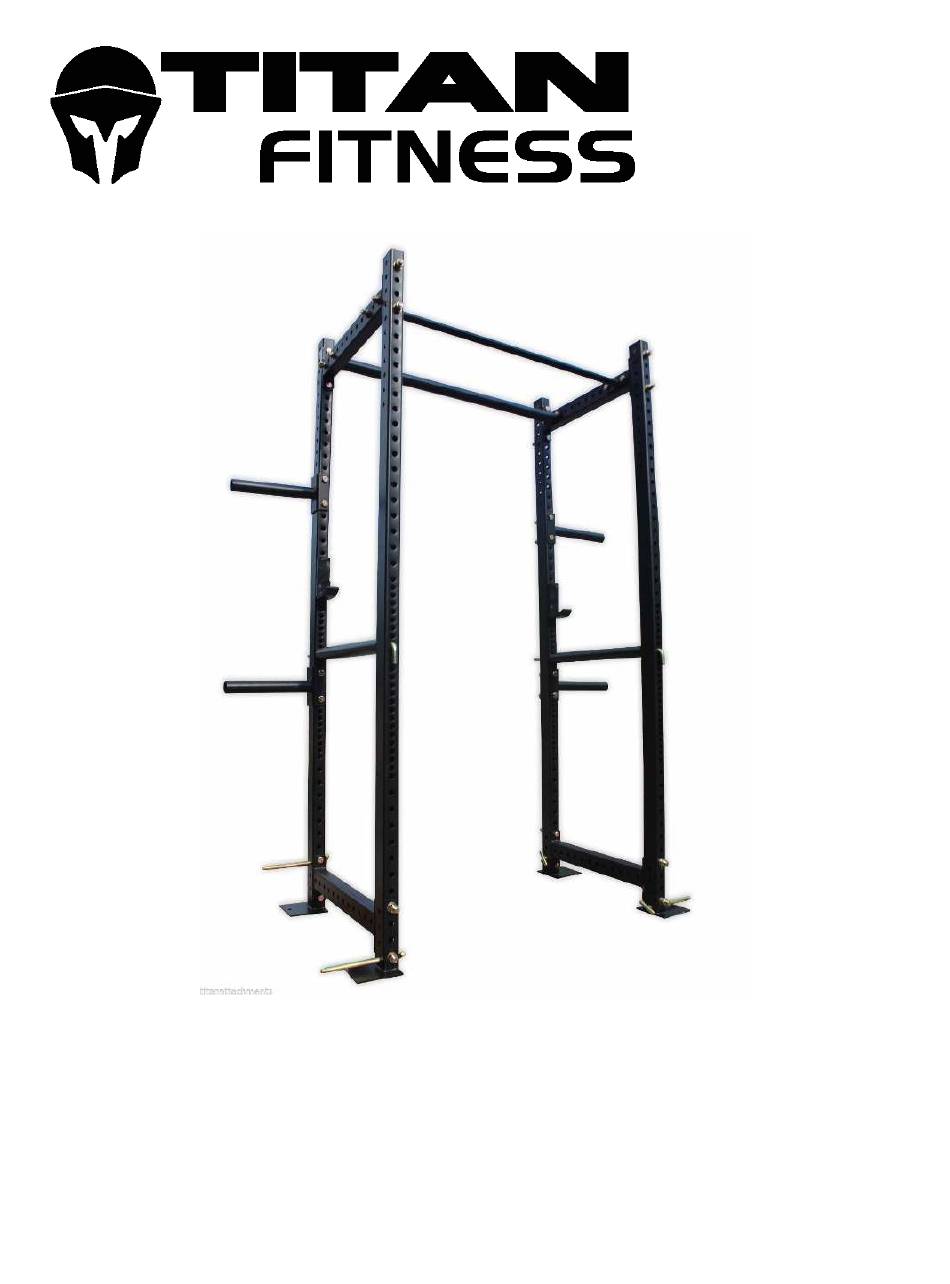

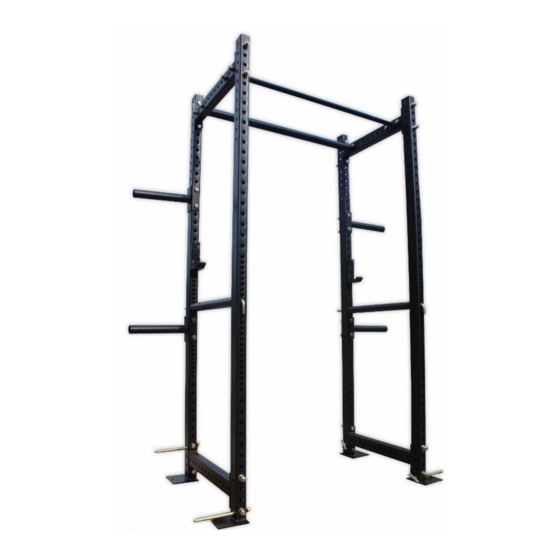

- Page 1 Owner’s Manual HEAVY DUTY POWER RACK This Product is Distributed Exclusively by Titan Distributors Inc 141 Eastley St. Ste. 113 Collierville, TN 38017 Customer Service 800 - 605 - 8241 www.titan.fitness...
- Page 2 HEAVY DUTY POWER RACK PARTS LIST Before beginning assembly, please be sure to match up all the parts that you have received with the following parts diagrams: BOX 1 (8) Hex Bolt M16x80 (32) M16 Nut (16) Hex Bolt M16x110...
- Page 3 HEAVY DUTY POWER RACK ASSEMBLY OVERALL NOTES: Build on a flat and level surface. Avoid tightening bolts down completely until the rack is fully assembled. STEP 1 Lay the four UPRIGHT POLES (11) on a flat surface. Attach the UPPER SIDE BRACINGS (1) using 16 of the HEX ...
- Page 4 HEAVY DUTY POWER RACK ASSEMBLY STEP 2 Mount the 2” PULL-UP BAR (2) to the top of the two frames using four HEX BOLTS M16x80 (5), four FLAT WASHERS (6), four SPRING WASHERS (7), and four HEX NUTS M16 (8).
- Page 5 HEAVY DUTY POWER RACK ASSEMBLY STEP 3 Mount the WEIGHT HOLDERS (12) in desired position using eight HEX BOLTS M16x120 (13), eight FLAT WASHERS (6), eight SPRING WASHERS (7), and eight HEX NUTS M16 (8). Mount the SPOTTING BAR (10), and SPOTTING BAR SLEEVE ...
- Page 6 HEAVY DUTY POWER RACK SPECS Features Capacity: 1,000 lbs HD J-Hooks w/ UHMW Liners 2"x3" steel tubes (#1) pull up bar: 1 1/4" (#2) pull up bar: 2" Westside Hole Pattern Specifications Weight: 230 lbs ...
