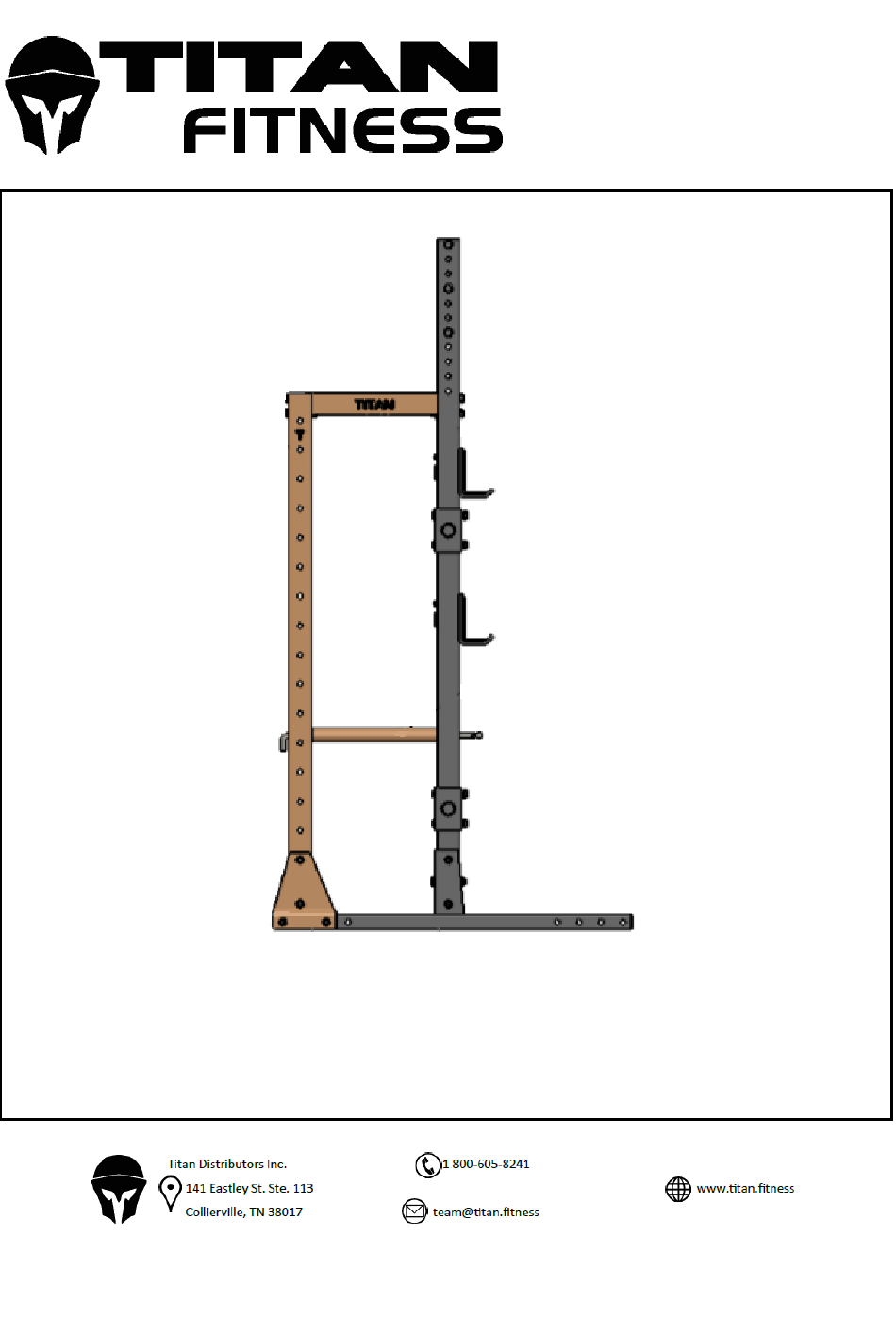

- Page 1 Half Rack for T-3 Squat Stand Owner’s Manual MPN: T3HALF SKU: 400409 UPC: 719318366967...
- Page 2 ASSEMBLY INSTRUCTION 1. Attach the Left Gusset Plate (3) to the Upright Tube (1): Attach the Left Gusset Plate (3) to the Upright Tube (1) using M16x80 Hex Bolt (9), M16 Flat Washer (6), M16 Spring Washer (7), and M16 Hex Nut (8). The order for assembly is M16x80 Hex Bolt (9), M16 Flat Washer (6), then push the bolt through the Left Gusset Plate (3) and Upright Tube (1), M16 Spring Washer (7), and then place the M16 Hex Nut (8) onto the end of the bolt.
- Page 3 3. Attach the Top Braces (2) to the Upright Tubes (1): Attach the Top Braces (2) to the Upright Tubes (1) using M16x100 Hex Bolt (5), M16 Flat Washer (6), M16 Spring Washer (7), and M16 Hex Nut (8). The order for assembly is M16x100 Hex Bolt (5), M16 Flat Washer (6), then push the bolt through the Upright Tube (1) and Top Brace (2), M16 Spring Washer (7), and then place the M16 Hex Nut (8) onto the end of the bolt.
- Page 4 PARTS DIAGRAM Part Number Part Description Quantity Upright Tube Top Brace Let Gusset Plate Right Gusset Plate M16x100 Hex Bolt M16 Flat Washer M16 Spring Washer M16 Hex Nut M16x80 Hex Bolt...
- Page 5 NEED HELP? CONTACT US FIRST 1(800)-605-8241 team@titan.fitness / www.titan.fitness Business hours: Monday - Friday • 8am - 5pm Central...
