Backup Key
Touchscreen Assembly
Backplate
Bolt
Strike
Reinforcement Plate
Set Screw
Reinforcement Screws
Inside Assembly Screw
Backplate Screws
Bolt/Strike Screws
Phillips screwdriver
Don't use a power drill!
U.S.A.: 888-805-9837
Canada: 800-900-4734
Mexico: 018005067866
For an improved installation experience, follow the link below or scan the QR code for online interactive instructions, warranty, and reference information.
https://instructions.allegion.com/instr/86/2110
You may have to adjust your bolt length. Make sure the slot in the bolt is centered in the hole.
Need Help?
See "Help with Step 1" in the online instructions. The link is on the back cover of this guide.
If you have a window next to your door, you may not be able to use the longer wood screws to install the reinforcer.
Need Help?
Trouble installing the strike reinforcer? See "Help with Step 2" in online instructions.
Route the cable through the door BELOW the bolt. Align the tailpiece as shown and push the touchscreen onto the door.
Is it hard to install the touchscreen? Is the tailpiece not installing correctly?
If the hole through your door seems too small, you may need to remove the spacer. See the online instructions.

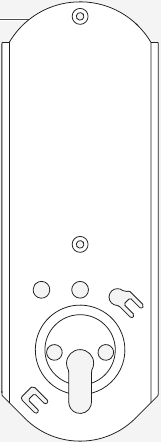

Route the cable below the bolt and through the hole on the bottom of the backplate. Secure the backplate with screws.
Phillips screwdriver
Don't use a power drill!

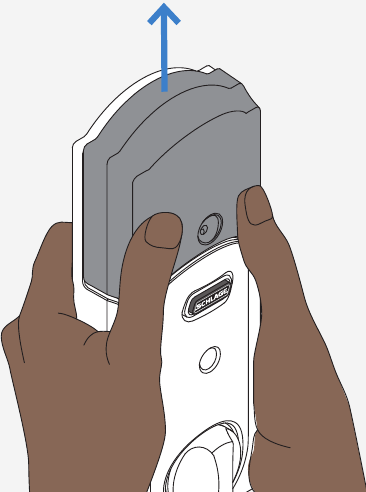

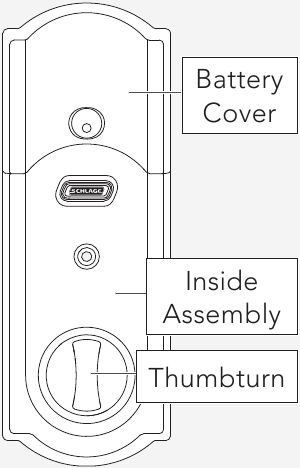

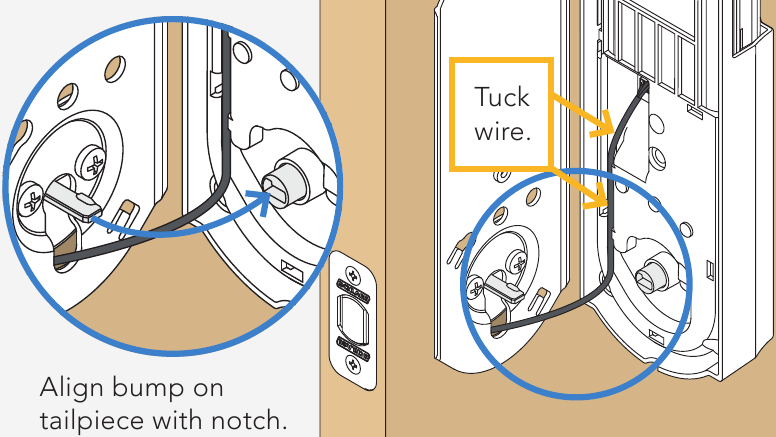

If the bump on the tailpiece doesn't align with the slot in the back of the inside assembly, make sure your thumbturn is vertical (up and down). Tuck the wire into the channel.
Install the lower screw first.
Phillips screwdriver
Don't use a power drill!

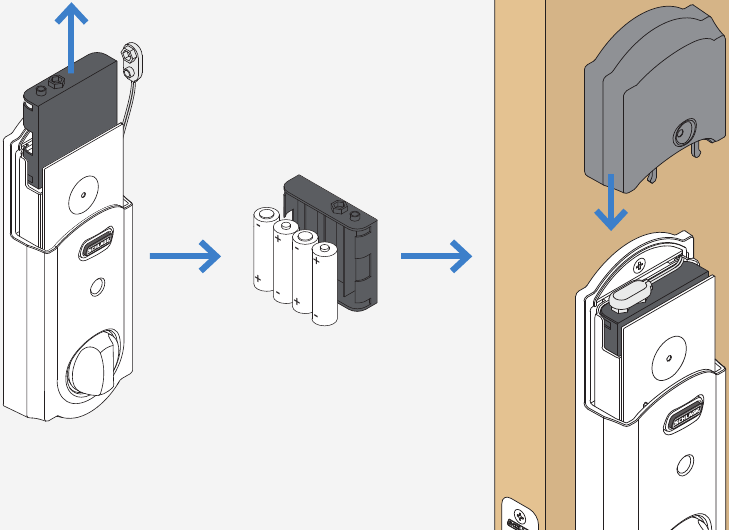

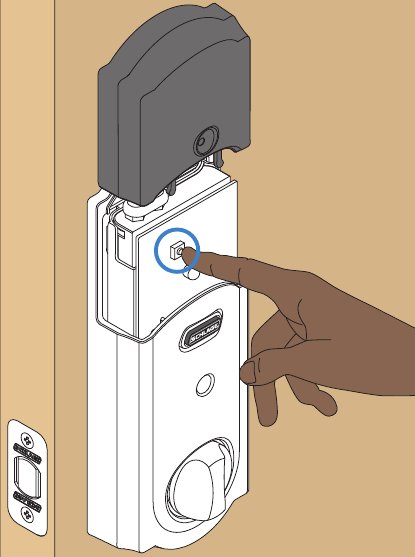

When the bolt stops moving, setup is complete.
Need Help?
If the bolt doesn't extend or retract during testing, see the online instructions and make sure spindle is aligned properly.
A red light indicates an enrollment issue, try repeating steps 1-3.

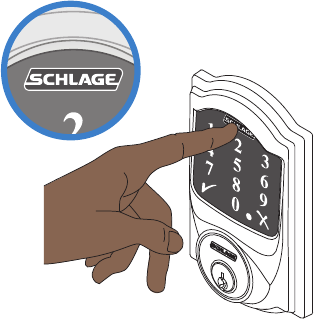

To lock your door just tap the logo.
You can also lock your door by entering a user code while the door is closed or by turning the thumbturn toward the door edge.

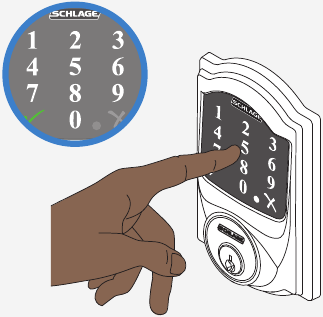

To unlock your door enter a user code.
You can also unlock your door from inside by turning the thumbturn away from the door edge.

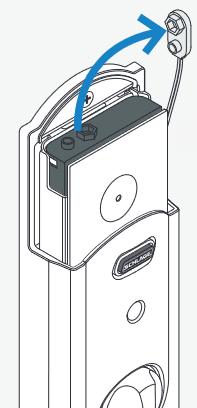

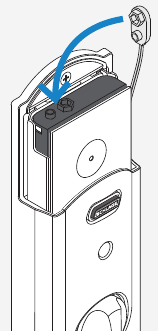

If you have forgotten your programming code, you can restore the default codes. If you want to move the lock to a different door, you need to restore default settings. Move the lock to the new door, and then set it up again.
Save this guide!
Access step-by-step instructions and help.
https://instructions.allegion.com/instr/86/2110
© Allegion 2018
Printed in U.S.A.
P518-669 Rev. 06/18-b
