S - 510
TOUCHPAD DIGITAL
DOOR LOCK
WITH FINGERPRINT READER
USER MANUAL
Notice
Please read this manual before installation and
operation.

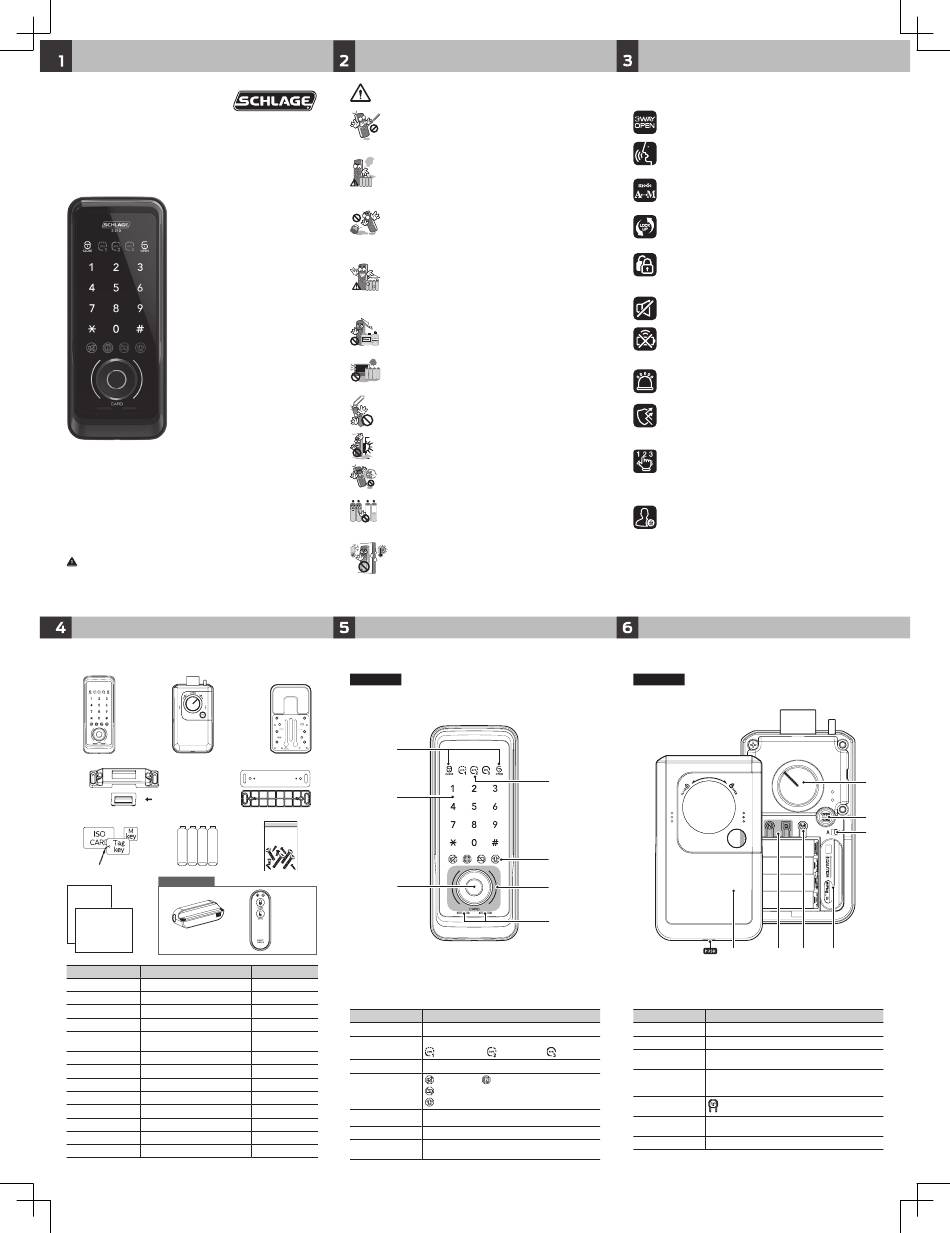

Product composition and components
① ②
④ ⑤
(4-1)
⑥ ⑦ ⑧
Optional parts
⑨ ⑪ ⑫
User
manual
⑩
Installation
template
Communication pack
Name product specification
① Front Ass`y 74mm(W) X 184mm(H) X 20.7mm(D) Including rubber pad
② Back Ass`y
160mm(W) X 93mm(H) X 37mm(D)
③ Back bracket 164mm(W) X 97mm(H) X 4.5mm(D)
④ Strike 30.1mm(W) X 124mm(H) X 28mm(D)
30mm(W) X 124mm(H) X 2mm(D) 1 EA
⑤ Strike housing
30mm(W) X 124mm(H) X 4.7mm(D) 3 EA
⑥ Card / Fob ISO card, Tag key, Mobile tag key
⑦ Battery 1.5V 'AA' Size LR6 4 Alkaline (DC 6V)
⑧ Screws 1 EA
⑨ User manual
Main User manual
⑩ Installation template Using for making hole at the door
⑪ Communication pack Communication pack
⑫ Remote key
Remote key
※ Installation condition Door thickness 40~50mm
(4-1) Dead bolt guider : should remove after finishing installation.
Safety precautions
Do not disassemble or alter the lock.
Disassembling the door lock may damage the product. Damages
to the product caused by unauthorized persons may void the
warranty.
If the product generates harmful gases and
smoke.
Please remove the batteries immediately from the product, if
you do not take this step immediately, the product may suffer
severe damage.
Please keep the product away from water or any
liquids.
If the product is exposed to water or liquids, please wipe the
moisture off with a soft cloth. If moisture or foreign materials
penetrate the product, remove the batteries immediately.
Please check the batteries every 6 months for
leaks/cleanliness.
If leakage is discovered, please wipe out with a dry cloth and
replace with new batteries. In case of exposure to leakage, wash
affected skin area with soap and water immediately.
Do not clean the product with flammable
materials such as alcohol, benzene or thinners.
Such materials may damage the surface of the lock or cause a fire.
Batteries should not be exposed directly to heat
source or submerged in water, because they may
leak or explode, resulting in severe damage.
Do not use damaged batteries.
Do not allow the battery electrodes to contact
metals such as keys, as the battery may
overheat, causing explosion or severe damage.
Please do not close the door with the deadbolt
in the locked position.
It may damage the product or cause a malfunction.
Do not force to pull the front cover.
It may damage the product or cause a malfunction.
Do not mix old and new batteries, or use
different types of batteries.
The battery life is getting shorter and it may cause leaks or
explosion.
It may damage the product when installed on a
heavy dew condensation door.
Dew condensation; small drops of water that form when warm air
touches a cold surface. Please check the environment of installation
area. Heavy dew condensation may damage the product or cause a
malfunction.

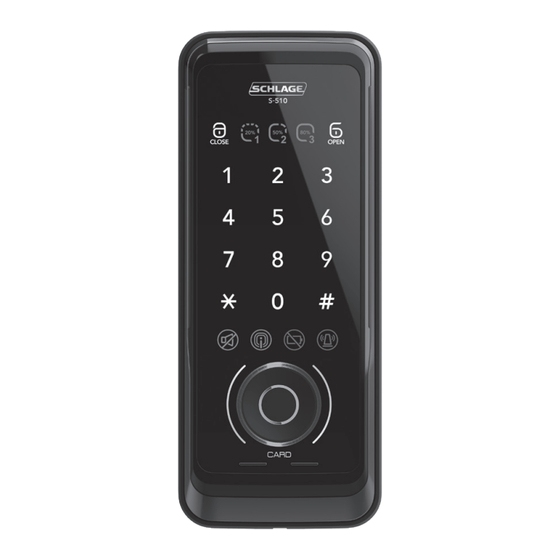

Name and function of each part
③
1. Front Ass`y
①
③
Screws
⑤
Remote key
remark
Name
① Lock / Unlock lamp Indicate lock/unlock status.
Using for height
Indicates operation status and checking battery capacit
of strike
② Status indicator
③ Touch Keypad Touch type Keypad
④ Window icon
Touch the registered fingerprint on the sensor to unlock the
⑤ Fingerprint sensor
door
Optional
⑥ Card / Fob touch plate Touch the registered Card / Fob to unlock the door
Optional
When battery does not operate, product may be operated and
⑦   E xternal power supply
unlocked by contacting a 9V battery on terminal located outside.
②
④
⑥
⑦
Description
20% of Battery 50% of Battery 80% of Battery
: Mute function : Wireless connection indicator(Option)
: Battery replacement indicator lamp
: Trespass alarm function
Product features
Three way solution
(PIN code, Card / Fob, Fingerprint)
Voice guide and 3 step volume control system
Voice guide (operation status, menu selection.) and provide 3 step
volume control system.
A ↔ M automatic / manual locking set function
Automatic and manual locking mode set is possible with simple
switch operation from Inside.
Auto relock function
If users do not open the door after unlocking the device it will
lock itself automatically.
Double lock function
When double lock function is activated, the door cannot be opened
from the outside, even with the registered card, PIN code or
Fingerprint. Override key can still be used.
One touch Mute function
Door will not emit any sound when mute is activated.
Low battery indicator and alarm for battery
replacement
Easy to check battery status with three step level indicator and
alarm when battery replacement is required.
Trespass alarm function
When the door is opened by force an alarm will sound.
Prevent mischief & hacking
After multiple incorrect attempted entries an alarm will sound and
all the functions of the lock will be suspended for three minutes.
The alarm activated after three incorrect PIN/card entries.
Random security coding function
When you enter your home with other people, you may not
want to show PIN code to them. In this case, you may press
any numbers randomly without limitation and then enter your
PIN code at the end.
Normal mode/safety mode
Normal mode is ideal for new users or low security environments
Safety mode provides a higher security level via use of a manager
PIN code. Allows individual register and delete function which is not
provided in normal mode.
2. Back Ass`y
⑭ ⑬ ⑫
button
Name
Description
⑧ Thumb turn Open or close manually with thumb turn
⑨ [Open / Close] button Open or Close door with one touch button
⑩  A uto / Manual  A : Auto mode (It locks automatically when the door is closed)
mode switch M : Manual mode (Does not lock automatically when the door is closed)
⑪  C onnection terminal
for communication Connecting or removing terminal for communication pack
pack
⑫   C ommunication  :  R egistration or deletion of optional RF communication
button pack
Registration/deletion of PIN code , Card / Fob, Fingerprint in
⑬ [N],[S] button
normal mode or safety mode
⑭ Battery cover Push up to open the battery cover
⑧
⑨
⑩
⑪
