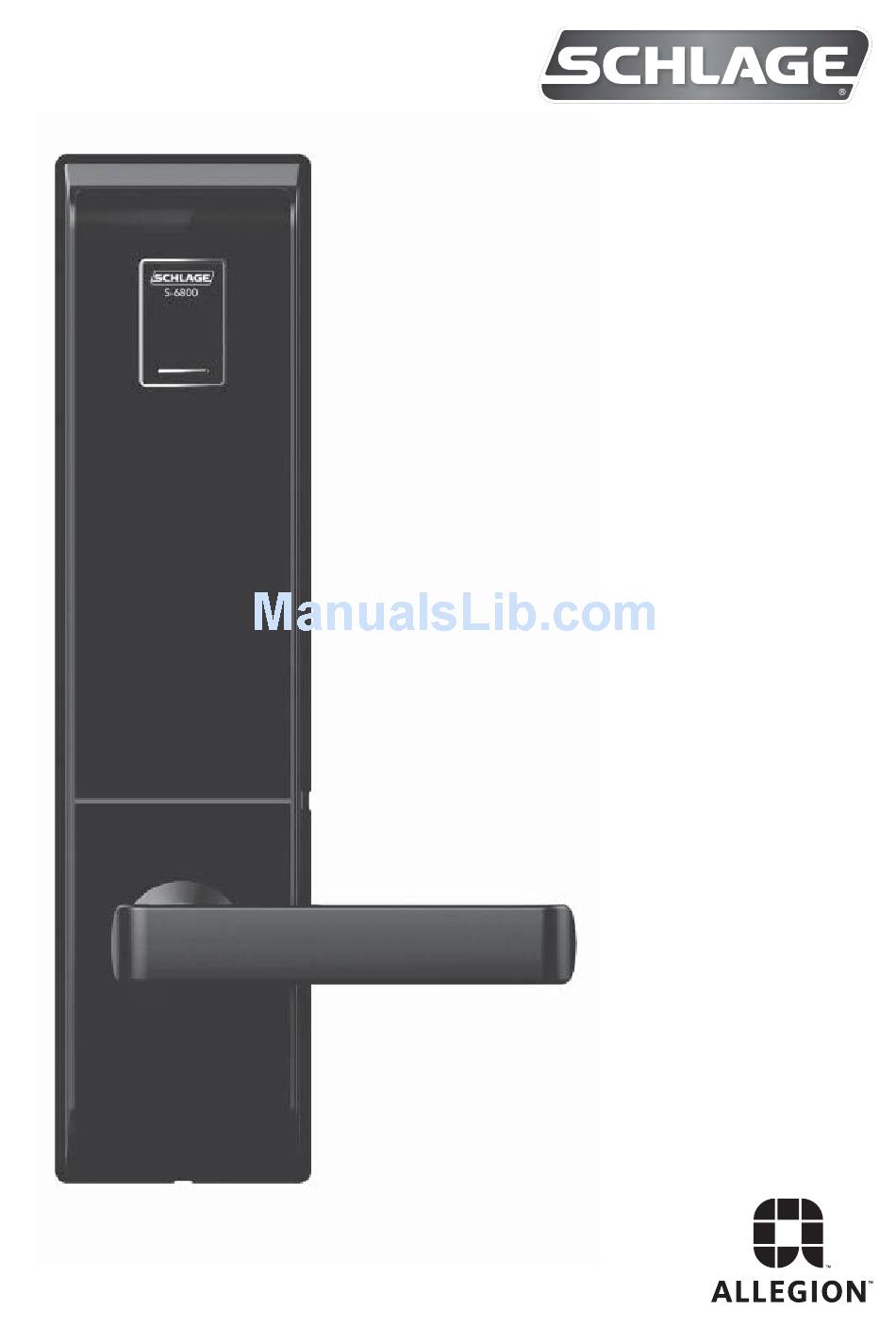

- Page 1 S-6800 TOUCHPAD DIGITAL DOOR LOCK USER MANUAL...
-
Page 2: Product Features
This feature facilitates quick exits, opening the door easily with a simple lever action. Highly Reliable Lock Type The S-6800 features a reliable mechanical mortice lock. Auto lock/Auto re-lock function When the door is closed, the lock engages automatically. If users do not open the door after unlocking it, the lock will re-engage automatically. - Page 3 Safety Precautions Do not disassemble or alter the lock. Disassembling the door lock may damage the product. Damage to the product caused by unauthorised persons may void the warranty. Please keep the product away from water or any liquids. If the product is exposed to water or liquids, please wipe the moisture off with a soft cloth.
-
Page 4: Table Of Contents
User Manual Index Introduction & Basic Functions About Modes | Changing modes Product components Normal mode > safety mode Front of lock (creating system manager) Back of lock Safety mode > normal mode Checking battery status Replacing batteries NORMAL MODE Emergency power Registering entry PINs Manual override... -
Page 5: Product Components
Product Components Name Specifi cation/Detail Front assembly 76mm (W) x306mm (H) x28mm (D) Back assembly 71mm (W) x298.6mm (H) x30.7mm (D) Back cover 76mm (W) x303.6mm (H) x7.9mm (D) Mortice Lock 123mm (W) x 109.5mm (H) x 24.5mm (D) Strike plate 36mm (W) x 106mm (H) x 1.5mm (D) Strike housing 24mm (W) x 102mm (H) x 18mm (D) -
Page 6: Front Of Lock

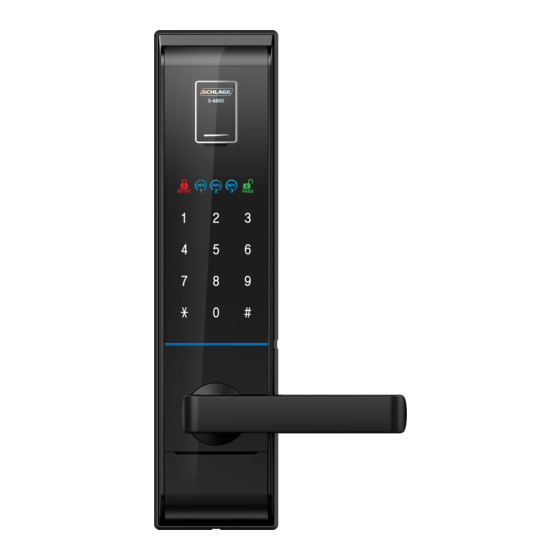

Front of Lock Fingerprint cover Fingerprint sensor Fingerprint sensor lamp Battery replacement indicator - replace batteries when this Status indicator lamp begins to fl icker Touch type numeric pad - enter PIN to operate lock Card/fob touch plate Door handle Mechanical key override External power supply... -
Page 7: Back Of Lock
Back of Lock Battery cover 10 key button Batteries - used to set normal mode - 8 pieces - registration of PIN, - 1.5v, AA, LR6 alkaline card/fob, fi ngerprint R/C button - used to set safety mode - registration of PIN, card/fob, fi... -
Page 8: Checking Battery Status
Battery Status & Replacement Check battery status (door must be closed) Battery Status Replace soon Replace now Touch front pad Press 9 Press # and check to illuminate battery indicator screen lamp Battery replacement If battery lamp is Push battery cover Replace old batteries fl... -
Page 9: Emergency Power
Emergency Power & Manual Override How to apply external power if batteries run out When the batteries are entirely exhausted, a 9V battery can be used on the emergency power terminals to allow access. Once the door lock has been reactivated by the 9V battery, access can be gained via PIN, card/fob or fi... -
Page 10: Random Security Coding
Random Security Coding When you enter your home with other people present, you may not wish to show them your PIN code. If this is the case, you may press any numbers randomly without limitation, and then enter your PIN code as the fi nal sequence. This will prevent others from seeing your PIN code. -
Page 11: Opening Door From Outside
Opening the Door From the Outside Opening the door using a PIN Touch the Enter PIN code Press * Pull down the front pad e.g. 123456 handle and open Opening the door using card/fob Opening the door using the fi ngerprint 1. -
Page 12: Locking Door From Outside
Locking the Door From the Outside Locking the door in auto-locking mode When the door is closed it is locked automatically and the unit will emit a sound to confi rm the door has been locked. If the door is not closed correctly, it will not be able to lock, and an alarm will sound. -
Page 13: Opening Door From Inside
Opening/Locking Door From the Inside Opening the door from the inside Panic Release Feature The door can be opened from the inside at any time by simply pulling down the handle. This feature allows easy escape in case of an emergency. -
Page 14: Privacy Function
Privacy Function Activating privacy mode so lock cannot be unlocked from the outside Green Privacy mode ON Privacy mode OFF Door cannot be unlocked Normal operation. Door from the outside can be unlocked from the outside NOTE • Privacy mode can only be activated when the door is locked. •... -
Page 15: Auto Locking Function
Auto Locking Function Auto locking system When door When door is closed the is locked the unit will emit a unit will emit a noise noise Auto re-locking system Door is After 7 unlocked but seconds the the door is not door will be opened re-locked to... -
Page 16: Alarm & Warning Functions
Alarm & Warning Functions Preventing illegal entry and hacking The unit will emit a strong alarm sound for three minutes in the following situations: 3 incorrect 3 unregistered PIN entries card/fob swipes 10 fi ngerprint 5 unregistered Alarm will cease to sound after cover fi... -
Page 17: System Reset
System Reset The unit can be reset to its factory settings by following these steps Open battery Remove batteries Press open button to cover 1 and 2 remove remaining charge While holding down Input manager code e.g. 456789, or touch manager card both the 10KEY and R/C buttons, insert battery 1, followed by battery 2... -
Page 18: Setting Volume Level
Setting Volume How to control volume level There are eight sound volume levels to choose from, ranging from mute to maximum Touch the Press # front pad Input user PIN Touch card/fob Press # Press 2 - Volume down Press 3 - Volume up Press 1 - Max. -
Page 19: Normal Mode > Safety Mode (Creating System Manager)
About Modes NORMAL MODE Normal Mode is quick and easy to use, and is the standard setting for the lock when new. Instructions for setting up codes, cards, fobs and fi ngerprints in Normal Mode are on pages 20-23. SAFETY MODE Safety Mode has been designed to provide additional security by limiting access to the programming functions of the lock, so that no changes can be made without entering a ‘Manager Code’. -
Page 20: Safety Mode > Normal Mode
Safety Mode > Normal Mode Press # Open the battery Enter manager Enter new PIN cover, and press the code code 10KEY button for approx. 5 seconds Press # Press # Enter new PIN code again NOTE • Manager code and manager card should be controlled by authorised persons only for security reasons. -
Page 21: Registering Entry Pins
Registering Entry PINs Registering entry PINs in normal mode Open battery Enter new entry Press * button cover and press PIN e.g. 123456 - Unit will emit 10KEY sound to confi rm PIN has been set OPTIONAL Press * to add Add additional another PIN, or PIN codes if... -
Page 22: Registering Cards/Fobs
Press 5 Press # NOTE • Previous card/fob memory is deleted automatically after registration of new card(s)/fobs(s). • Max. 50 cards/fobs can be registered. • For higher security, please use cards/fobs which are supplied by Schlage. -
Page 23: Registering Fi Ngerprints
Registering and Deleting Fingerprints Registering fi ngerprints in normal mode Open battery Touch your First LED Touch your cover and press fi nger on scan (unit fi nger on 10KEY sensor (LED will emit sensor again will illuminate) one sound) Second LED Touch your Third LED... - Page 24 Registering and Deleting Fingerprints Registering fi ngerprints without the fi ngerprint cover in place Open battery Touch your fi nger Press 3 Press # cover and press on sensor (LED 10KEY will illuminate) First LED scan Touch your Second LED Touch your (unit will emit fi...
-
Page 25: Registering Entry Pins
Registering Entry PINs Registering entry PINs in safety mode Open battery Enter manager Or swipe Press # cover and press PIN e.g. 456789 manager card R/C key Press 1 Press # Enter new user Press * PIN e.g. 123456 NOTE •... -
Page 26: Registering Cards/Fobs
Registering Cards & Fobs Registering cards and fobs in safety mode Open battery Enter manager Or swipe Press # Press 2 cover and press PIN e.g. 456789 manager card R/C key Repeat previous three steps to enter multiple cards/fobs Press # Enter card Press # Touch the... -
Page 27: Deleting All Card/Fob Data
Deleting Cards & Fobs Deleting ALL card and fob data in safety mode Open battery Enter manager Press # Or swipe cover and press PIN e.g. 456789 manager card R/C key Press 5 Press # Deleting individual card and fob data in safety mode Open battery Press 8 Enter manager... -
Page 28: Registering Fi Ngerprints
Registering Fingerprints Registering fi ngerprints in safety mode Enter manager Or swipe Press 3 Open battery Press # PIN e.g. 456789 manager card cover and press R/C key Press # Select 3 digit Press # Touch your First LED scan card registration fi... -
Page 29: Deleting All Fi Ngerprint Data
Deleting Fingerprints Deleting ALL fi ngerprints in safety mode Open battery Enter manager Or swipe Press # PIN e.g. 456789 manager card cover and press R/C key Press 6 Press # Deleting individual fi ngerprints in safety mode Open battery Press 9 Enter manager Press #... -
Page 30: Creating Temporary User Pins
Creating Temporary User PINs Registering temporary user PINs in safety mode Touch the Press # Enter manager Or swipe Press # front pad PIN e.g. 456789 manager card Press 9 Enter temporary Press # Enter temporary Press # PIN e.g. 123456 PIN e.g. -
Page 31: Changing Manager's Pin
Changing Manager PIN or Card/Fob Changing manager PIN code in safety mode (Note: see page 18 to change from normal mode to safety mode) Open battery Enter manager Press # Press # Press 0 cover and press PIN e.g. 456789 R/C key Re-enter Press #... - Page 32 Allegion (Australia) Pty Ltd Allegion South East Asia Allegion (New Zealand) Limited Phone 1800 098 094 Phone +65 6488 2562 Phone 0800 477 869 www.allegion.com.au www.allegion.com www.allegion.co.nz S-6800 USER MANUAL 03/17...
