Schlage S-5600 User Manual

S-5600
USER MANUAL
Notice
Please read this manual before installation and
operation.

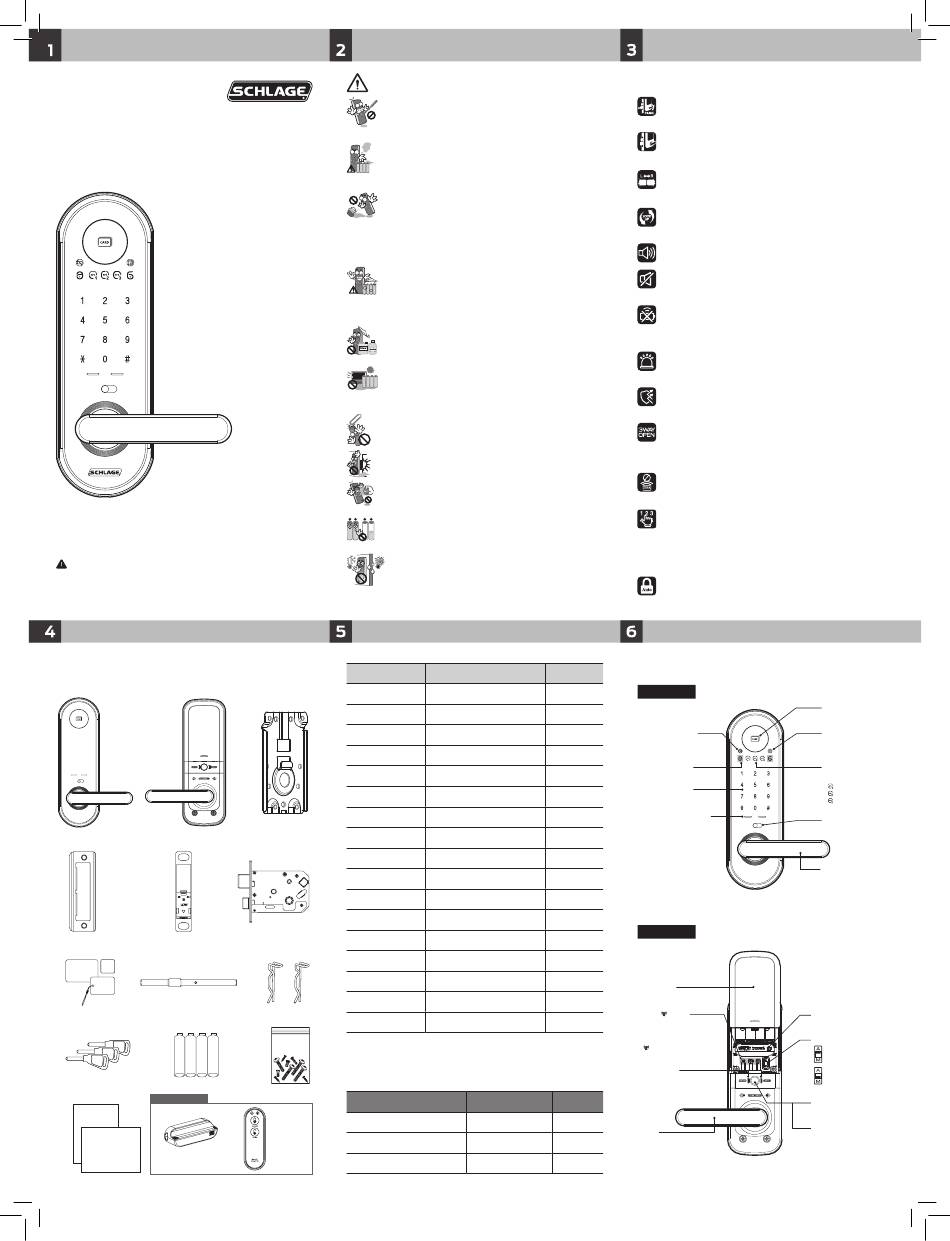

Product composition and components
① ②
④ ⑤ ⑥
⑦ ⑧
M
ISO
key
CARD
Tag
key
⑩ ⑪
Optional parts
⑬
⑮ ⑯
User
manual
⑭
Installation
template
Communication pack
(RXP-10)
Safety precautions
Do not disassemble or alter the lock.
Assembling or disassembling the door lock may damage the product.
Damages to the product caused by unauthorized persons may result
in damages to your property. Please contact our customer service.
If the product generates harmful gases and
smoke.
Please remove the batteries immediately from the product, if you
do not take this step immediately, the product may suffer server
damage.
Please keep the product away from water or any
liquids.
If the product is exposed to salty water or liquids, please wipe off the
moisture with a soft cloth. If moisture or foreign materials penetrate
the product, remove the batteries immediately and contact the
service agency or customer service center for advice. Using a product
contaminated with foreign may cause problems.
Please check the batteries every 6months to
see if the batteries are leaking and to check the
cleanliness of battery terminals.
If leakage is discovered, please wipe out with a dry cloth and replace
the new batteries. In case of exposure to leakage, wash with soap
and water immediately.
Do not clean the product with flammable
materials such as alcohol, benzene or thinners.
Such materials may damage the surface or cause a fire.
Batteries should not be exposed directly to heat
source or flames.
Batteries should not be exposed directly to heat source or flames or
submerged in water, because they may leak or explode, resulting in
severe damage. Please do not use damaged batteries.
Do not allow the battery electrodes to contact
metals such as key holders.
As the battery may overheats, cause explosion or severe damage.
Please do not close the door with the deadbolt in
the locked position.
It may damage the product or cause a malfunction.
Do not force to pull the front cover.
It may damage the product or cause a malfunction.
Please do not mix old with new batteries or use
different types.
The battery life is getting shorter and it may cause a leaks or
explosions.
It may damage the product when installed on a
heavy dew condensation door.
Dew condensation; small drops of water that form when warm air
touches a cold surface. Please check the environment for install
area. Heavy dew condensation may damage the product or cause a
malfunction.
Name
③
① Front Ass`y
② Back Ass`y
③ Back bracket
④ Strike
⑤ Strike housing
⑥ Mortise lock
⑦ Card key
⑧ Handle shaft
⑨ Handle shaft clip
⑩ Emergency key
⑪ Battery
⑫ Screws
⑬ User manual
⑨
⑭ Installation template
⑮ Communication pack
⑯ Remote key
※ Installation condition
⑫
Screws
Factory setting
Item
Remote key
Auto/Manual lock mode
(RP-20)
Beef sound level (1~8 level)
Factory setting PIN code
Product specification Remark
Including rubber
84mm(W) x 260mm(H) x 21mm(D)
pad
82mm(W) x 242mm(H) x 34mm(D)
70mm(W) x 119.5mm(H) x 6.6mm(D)
35mm(W) X 106mm(H) X 6.3mm(D)
21mm(W) X 106mm(H) X 19.5mm(D)
105.4mm(W) X 110mm(H) X 25mm(D)
ISO card, Tag key, Mobile tag key
96mm(W) X 8mm(H) X 8mm(D)
2 EA
3 EA
1.5V 'AA' Size LR6 Alkaline, 4ea(DC 6V)
1 set
Main User manual
Using for making hole at the door
Optional
Communication pack
Remote key Optional
Door thickness 40~80mm
Setting Status Ref.page
[Auto-lock] 8
8 level 7
123456 -
Product features
Panic release handle type
It facilitates escapes while in danger opening easily with a simple
action of lever down.
High reliance mechanical mortise lock type
It has hight reliability mechanical mortise lock type with
installing the locking device on door body inside.
Free-direction mortise lock type
The mortise lock of this product facilitates easy adjusting to left
or right handle direction.
Auto-relocking function
If users do not open the door after unlocking, it is to be locked
automatically for higher security.
Volume control
8 levels of volume.
One touch mute function
Open the door in quite not to interrupt neighbor without any
operating sound temporarily.
Low battery indicator and alarm for battery
replacement time
Low battery indicator with alarm sound shows battery
replacements time.
Trespass alarm function
When the door is opened by force with hammer or other lock is
suspended with alarm sound.
Prevent mischief & hacking
With 5 times of abnormal try with wrong number, function of
door lock is suspended for a while with alarm sound.
Three way solution
(PIN code, card key, emergency key)
Available to use one solution of PIN code, card key,
emergency key.
Disable function when missing PIN code or card keys
Automatically, deleted old PIN code or card key information
when registering new one.
Random security coding function
When you enter your home with someone, you don`t want to
show PIN code to them. In his case, you may press any number
randomly without limitation and then enter your PIN code at
final. Then you can open the door without revealing your PIN
code.
Auto lock function
When the door is closed, to be locked status automatically.
Name and function of each part
1.
Front Ass`y
Battery replacement
indicator
When the battery is low, red light
flickers. Please change batteries.
Lock / Unlock lamp
Indicate lock / unlock status.
Touch numeric pad
External emergency power
supply terminal
When battery does not operate,
product may be operated and
unlocked by contacting 9V on
terminal located outside.
2.
Back Ass`y
Battery cover
Push up to open the battery cover.
[N], [S], [ ] Button
Communication pack socket
˙[N] :  R egistration or deletion of PIN
code, Card in normal mode
˙[S] :  R egistration or deletion of PIN
Auto / Manual mode switch
code, Card in safety mode
˙[ ] :  T o register or delete optional
RF communicatio module.
Indicator lamp
[Manual locking] button
Button to lock the door by manual at
manual locking mode.
[Double locking] button
Handle
Button to set double locking mode.
Can open the door at anytime only
by pulling down this handle.
Card key touch plate
Touch the registered card key to
open the door.
Wireless interlock
Status indicator
Indicate operation status and
checking battery capacity.
˙ Remaining battery 20%
˙ Remaining battery 50%
˙ Remaining battery 80%
Override key
open the door with override
key by manual.
Handle
Can open the door by pushing
down it after pressing PIN code or
touching card key.
[Auto lock] Mode
door will be locked automatically
after closing.
[Manual lock] Mode
door will be locked with pressing
manual lock button after closing.
