Schlage Encode Smart WiFi Deadbolt Quick Start Guide

Parts

Backup Key

Touchscreen Assembly

Backplate

Battery Cover ↓

Inside Assembly ↑

Bolt

Strike

Reinforcement Plate

Reinforcement Screws

Inside Assembly Screws

Backplate Screws

Bolt/Strike Screws

Start here!
schlage.com/encode-workswith
Visit schlage.com/encode-workswith to setup and control your Schlage Encode™ with your smartphone.

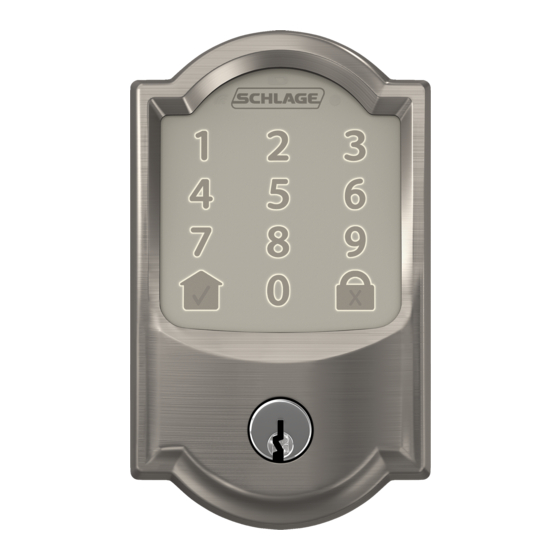

Touchscreen

Communication Icon

• Flashes when lock is connecting to WiFi to check for updates.

Low Battery Icon

• Flashes after code is entered when battery is low.
• Solid when battery is critical. The lock will not work without new batteries.

Programming and Input LED

• Flashes white on every digit that is entered.
• Amber when using manual programming mode.

Home Button and Checkmark Icon

• Turns on keypad backlight.
• Starts WiFi connection process.
• Checkmark flashes when code entry is correct.
• Checkmark flashes when manual programming are successful.

Lock Button and "X" Icon

• Locks the lock.
• Turns on keypad backlight if the lock is locked.
• "X" flashes for a wrong user code.

Tools

Phillips screwdriver

Don't use a power drill!

Installation

Remove existing lock

Remove the entire deadbolt, including the bolt. You may also want to remove the strike. A standard Schlage deadbolt is shown. Check with your specific deadbolt manufacturer if you need help.

Install the bolt

You may have to adjust your bolt length. Make sure the slot in the bolt is centered in the hole.

Need Help? Visit schlage.com/faqs-encode.

Install the strike into the door frame

If you have a window next to your door, you may not be able to use the longer wood screws to install the reinforcer.

That wasn't so bad, was it?

Your lock is now installed! Remember, you still have to set up your lock to use it.

Set up your lock

1. Open your door!
2. Enter one of the two default user codes.
3. Your lock will enter a setup routine. When the bolt stops moving, setup is complete.

Final test

1. Close your door.
2. Extend and retract the bolt using the inside thumbturn.
3. Make sure the bolt retracts smoothly.
4. Open your door.
5. Extend the bolt using the inside thumbturn.
6. Now enter a user code at the touchscreen.

Need Help?

If the bolt doesn't extend or retract during testing, visit schlage.com/faqs-encode.

Now that your lock is installed
you can use a smart home system to lock and unlock your door from anywhere and add user codes for guests and household members.

schlage.com/encode-workswith

Visit schlage.com/encode-workswith for a list of compatible smart home apps that allow you to control your Schlage Encode™ with your smartphone.

Lock and unlock

To lock your door just tap the lock icon.

You can also lock your door from inside by turning the thumbturn toward the door edge.

To unlock your door enter a user code.

You can also unlock your door from inside by turning the thumbturn away from the door edge.

Questions about your new Schlage Encode™ Smart WiFi Deadbolt?

Please don't return it to the store!

Let us help you first!

www.schlage.com/faqs-encode

© Allegion 2018
Printed in U.S.A.
P518-415 Rev. 08/18-d
