Schlage Control Smart Deadbolt Installation Instructions Manual

*48042996*
48042996
BE467
New outside
deadbolt assembly
Important installation notes
Install and test lock with door open to avoid being locked in or out.
Do NOT dispose of any parts during instructions unless directed!
DO NOT reuse parts from existing installation unless directed.

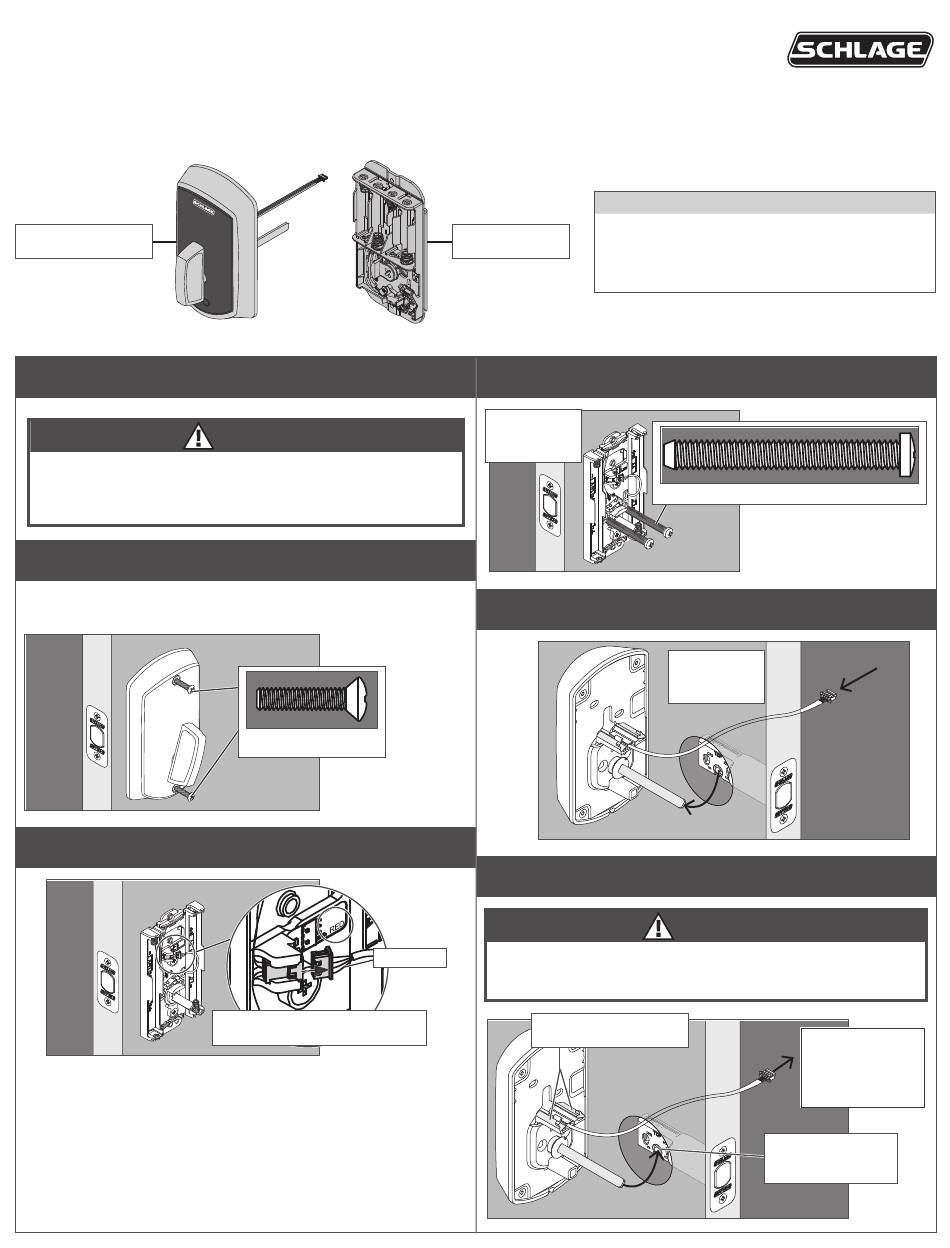

1
Remove the inside cover.
Remove two screws and store in a safe place as they will be
reinstalled later.
2
Disconnect the cable.
Schlage Control™
Smart Deadbolt
Smart Upgrade Kit
CAUTION
Actual size (2)
Red wire
The connector fits only one way.
DO NOT FORCE!
Tools
Required
New inside
assembly
• Phillips screwdriver
• Lever removal tool
3
Remove and discard the existing inside assembly.
Recycle or
dispose
responsibly.
4
Remove and discard the existing outside assembly.
5
Install the new outside assembly.
If the bolt does not remain retracted throughout installation, locking
and unlocking could be reversed, resulting in an unsecured
Clips hold the assembly
on the door.
Installation Instructions
Optional
• Flathead screwdriver
• Torx™ screwdriver
Actual Size (2)
Retain screws to
reinstall later.
Recycle or
dispose
responsibly.
CAUTION
residence.
Route the cable
over the
deadbolt and
through the door.
Route the tailpiece
through the slot in
the bolt.
