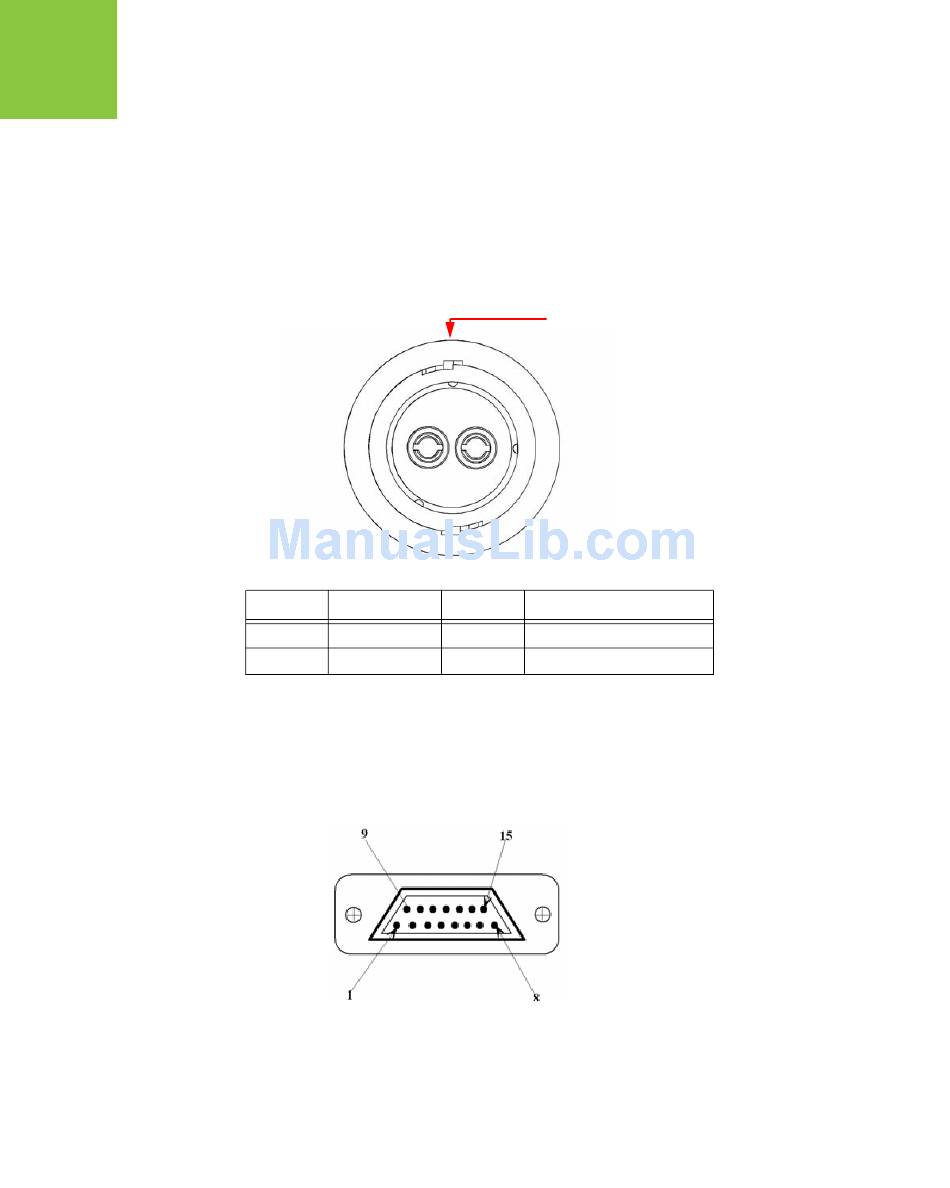

A.2. Connector Specifications
Power Connector
Table A-5 gives specifications to power connector type 23-500153-01 CONN, HIGH CURRENT
PL-700 RECEPT ALDEN 300906.
DB15 Connector
This connector provides DB15 connectivity for the HPT135 with DTE.
About using and configuration RS-485 please contact JAVAD GNSS Customer Support
support@javad.com.
28
1
Table A-5. Power Connector Specifications
Number
Signal Name
1
Power_INP
2
Power_GND
Figure A-1. DB15 Connector
White
Marker
2
Dir
Details
P
12 volts DC input
-
Ground, power return
www.javad.com
