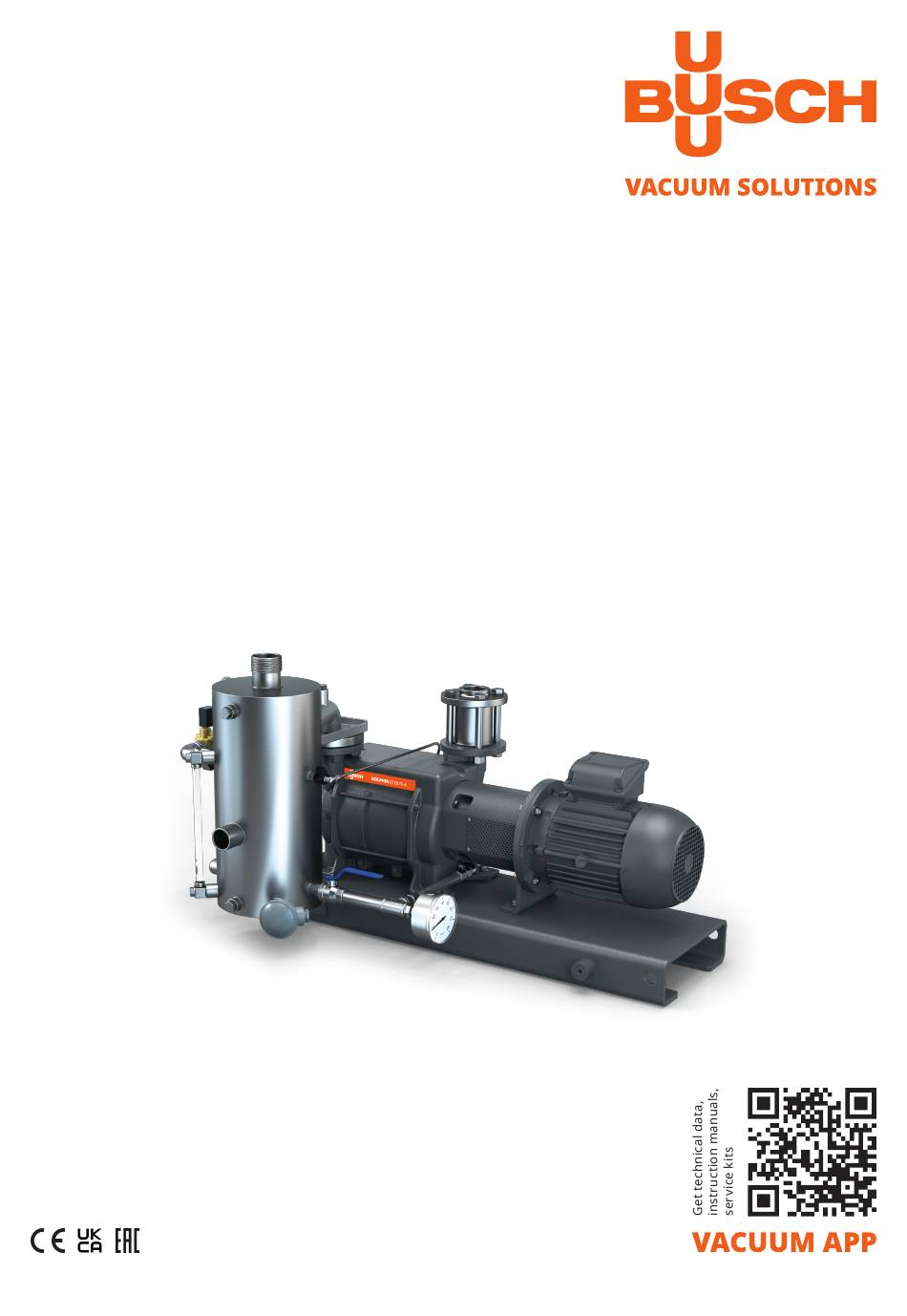

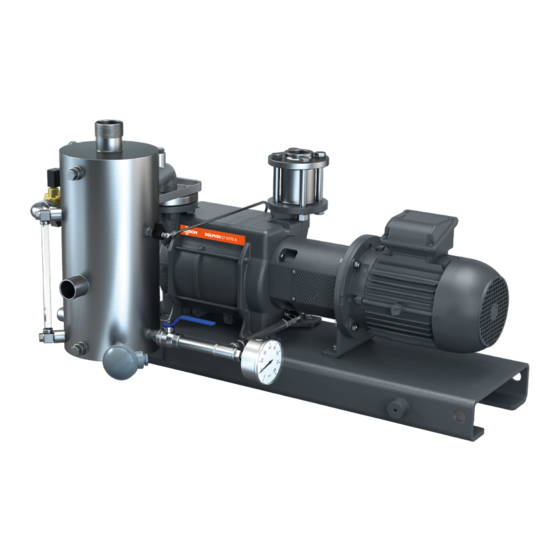

- Page 1 DOLPHIN VL Systems Liquid Ring Vacuum Pumps VL 0100 A, VL 0130 A, VL 0170 A, VL 0180 A, VL 0220 A, VL 0270 A, VL 0320 A, VL 0430 A, VL 0510 A, VL 0530 A, VL 0630 A, VL 0750 A, VL 0800 A...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Safety..................................Product Description ............................. Operating Principle ............................. 2.1.1 Once-Through Operation........................2.1.2 Partial Recovery (Open Circuit)......................2.1.3 Total Recovery (Closed Circuit) ......................VL System Description ............................Start Controls ............................... Control Concept..............................2.4.1 Once Through Operation........................2.4.2 Partial Recovery (Open Circuit)...................... -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description
2 | Product Description Product Description Once through system Partial recovery system OPD TSA 4 | 36 Instruction Manual Supplement DOLPHIN VL Systems_EN_en... - Page 5 Product Description | 2 Total recovery system Description Anti-cavitation valve Base frame Compound pressure gauge Cooling liquid inlet Cooling liquid outlet Suction connection Fresh liquid isolation valve Level indicator Liquid ring vacuum pump Level switch Operating liquid control valve Operating liquid drain Operating liquid inlet Operating liquid outlet / overflow Operating liquid solenoid isolation valve...
-
Page 6: Operating Principle
2 | Product Description NOTE Illustrations In this instruction manual the illustrations may differ from the machine appearance. NOTE Technical term. In this instruction manual, we consider that the term ‘machine’ refers to the ‘VL System’. NOTE Instruction manual supplement. This document is a supplement to the DOLPHIN LM and LT liquid ring vacuum pump instruction manual whose content remains valid. -
Page 7: Partial Recovery (Open Circuit)
Product Description | 2 2.1.2 Partial Recovery (Open Circuit) Description Process inlet (IN) Gas discharge (OUT) Operating liquid inlet (OPI) 50% of operating liquid liquid recov- ered Partial recirculation liquid system reduces the consumption of fresh liquid by recovering and recircu- lating 50% of the operating liquid. -
Page 8: Vl System Description
2 | Product Description VL System Description The VL system description is written on the system’s nameplate. It is defined as in the following ex- ample: VL 0320 A T K O ZE M X Description VL = Compact liquid ring vacuum sys- Size of the vacuum pump Design status of vacuum pump M = Single stage (LM) vacuum pump,... -
Page 9: Partial Recovery (Open Circuit)
Product Description | 2 Operating liquid control valve (OPC) allows the operating liquid flow rate to be regulated for opti- mum performance of the system, with compound pressure gauge (CG) indicating the operating liq- uid pressure at the vacuum pump inlet. The suction non-return valve (NRV) prevents operating liquid from flowing back into the process when the system stops under vacuum. -
Page 10: Transport
3 | Transport Transport WARNING Suspended load. Risk of severe injury! ● Do not walk, stand or work under suspended loads. WARNING Lifting the VL system incorrectly. Risk of severe injury! Risk of damage to the machine! ● Do not lift the entire system by the vacuum pump and the motor. ●... -
Page 11: Storage
Risk of damage to the machine! ● Drain the operating liquid from the machine and the system before storage. ● Or add an anti-freeze solution. After testing, all Busch DOLPHIN vacuum pumps are vented and drained. Instruction Manual Supplement DOLPHIN VL Systems_EN_en 11 | 36... -
Page 12: Installation
● Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: ● Contact your Busch representative, the motor should be derated or the ambient temperature limited. -
Page 13: Operating Liquid Connection
Installation | 5 CAUTION Restriction of the separator vent. Will cause back pressure and possible separator failure. ● The separator vent piping should not be restricted as separator vessel is not pressure rated. NOTICE Discharge gas flow obstructed. Risk of damage to the machine! ●... - Page 14 5 | Installation DOLPHIN VL 0100-0800 A Partial recovery DOLPHIN VL 0100-0800 A Total recovery - Plate heat exchanger OPD CLI 14 | 36 Instruction Manual Supplement DOLPHIN VL Systems_EN_en...
- Page 15 Installation | 5 DOLPHIN VL 0100-0800 A Total recovery - Shell and tube heat exchanger CLO1 CLI1 OPD1 Connection size: Machine type OPD1 CLI1 CLO1 VL 0100 - 0270 A G1 ½ R1 ½ G½ G½ G½ G½ G½ VL 0320 - 0530 A G½...
-
Page 16: Electrical Connection
● If the machine is equipped with a power connector, install a residual current protective device to protect persons in case of isolation default. ● Busch recommends installing a type B residual protective device suitable for the electrical in- stallation. -
Page 17: Machine Delivered With A Variable Speed Drive (Option)
● If the machine is equipped with a power connector, install a residual current protective device to protect persons in case of isolation default. ● Busch recommends installing a type B residual protective device suitable for the electrical in- stallation. -
Page 18: Electrical Connection Of The Monitoring Devices
6 | Electrical Connection Electrical Connection of the Monitoring Devices NOTE The accessories below are considered as standard. If other specific components should be used, refer to the instruction manual of the accessory in question. 6.4.1 Wiring Diagram Solenoid Valve Part no. : VZS/0.50/DW/M/V1 Supplier reference : Model CLO3EB13T Pilot Diaphragm... -
Page 19: Commissioning
Commissioning | 7 Commissioning CAUTION During operation the surface of the machine may reach temperatures of more than 70°C. Risk of burns! ● Avoid contact with the machine during and directly after operation. NOTICE The machine is running without operating liquid system. Will ruin the machine in short time! ●... - Page 20 7 | Commissioning The working pressure of the vacuum pump shall therefore be sufficiently above the vapor pressure of the operating liquid. In particular the pressure control in the vacuum system must by no means be achieved by throttling or even closing of the suction line! The vapor pressure of the operating liquid and consequently the ultimate pressure can be reduced by cooling.
-
Page 21: Maintenance
Maintenance | 8 Maintenance DANGER Live wires. Risk of electrical shock. ● Electrical installation work must only be executed by qualified personnel. WARNING Machines contaminated with hazardous material. Risk of poisoning! Risk of infection! If the machine is contaminated with hazardous material: ●... -
Page 22: Maintenance Schedule
Interval Maintenance work Monthly ● Check the machine for liquid leaks - in case of leaks have the machine repaired (contact Busch). ● Check gauges are functioning – replace if damaged. Yearly ● Clean Y-strainer. ● Clean inlet screen if installed. -
Page 23: Overhaul
● Decontaminate the machine as much as possible and state the contamination status in a ‘Dec- laration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com). -
Page 24: Decommissioning
10 | Decommissioning Decommissioning DANGER Live wires. Risk of electrical shock. ● Electrical installation work must only be executed by qualified personnel. CAUTION Hot surface. Risk of burns! ● Prior to any action requiring touching the machine, let the machine cool down first. ●... -
Page 25: Spare Parts
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! ● The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. Spare parts Description Part no. - Page 26 VL 0320 A VL 0430 A VL 0510 A VL 0530 A VL 0630 A VL 0750 A VL 0800 A If other parts are required: ● Contact your Busch representative. 26 | 36 Instruction Manual Supplement DOLPHIN VL Systems_EN_en...
-
Page 27: Troubleshooting
Solid foreign matter has en- ● Remove the solid foreign tered the machine. matter or repair the ma- chine (contact Busch). ● Install an inlet screen if nec- essary. Ice in the machine, the operat- ● Carefully warm up the ma- ing liquid has frozen. - Page 28 ● Seek advice from your local Busch representative. The operating liquid is too ● Adjust cooling liquid flow warm. rate to reduce the tempera- ture of the operating liquid.
-
Page 29: Technical Data
Technical Data | 13 Technical Data VL 0100 A VL 0180 A VL 0270 A Pumping speed (50Hz / 60Hz)* m³/h 82 / 98 144 / 180 220 / 267 Ultimate pressure (50Hz / 60Hz)* hPa (mbar) 130 / 130 abs. - Page 30 13 | Technical Data VL 0530 A VL 0800 A Pumping speed (50Hz / 60Hz)* m³/h 440 / 556 722 / 867 Ultimate pressure (50Hz / 60Hz)* hPa (mbar) 130 / 130 abs. Maximum overpressure (50Hz / bar(g) 0.5 / 0.5 60Hz) Nominal motor rating IEC (50Hz / 11.0 / 15.0...
- Page 31 Technical Data | 13 VL 0130 A VL 0170 A VL 0220 A Pumping speed (50Hz / 60Hz)* m³/h 105 / 128 144 / 165 203 / 232 Ultimate pressure (50Hz / 60Hz)* hPa (mbar) 33 / 33 abs. Maximum overpressure (50Hz / bar(g) 0.5 / 0.5 60Hz)
- Page 32 13 | Technical Data VL 0320 A VL 0430 A VL 0510 A Pumping speed (50Hz / 60Hz)* m³/h 265 / 320 361 / 426 430 / 510 Ultimate pressure (50Hz / 60Hz)* hPa (mbar) 33 / 33 abs. Maximum overpressure (50Hz / bar(g) 0.5 / 0.5 60Hz)
- Page 33 Technical Data | 13 VL 0630 A VL 0750 A Pumping speed (50Hz / 60Hz)* m³/h 500 / 578 617 / 710 Ultimate pressure (50Hz / 60Hz)* hPa (mbar) 33 / 33 abs. Maximum overpressure (50Hz / bar(g) 0.5 / 0.5 60Hz) Nominal motor rating IEC (50Hz / 15.0 / 22.0...
-
Page 34: Eu Declaration Of Conformity
EU Declaration of Conformity This Declaration of Conformity and the CE-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Decla- ration of Conformity is issued under the sole responsibility of the manufacturer. -
Page 35: Uk Declaration Of Conformity
UK Declaration of Conformity This Declaration of Conformity and the UKCA-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Dec- laration of Conformity is issued under the sole responsibility of the manufacturer. - Page 36 With a network of over 60 companies in more than 40 countries and agencies worldwide, Busch has a global presence. In every country, highly competent local personnel delivers custom-tailored support backed by a global network of expertise. Wherever you are.
