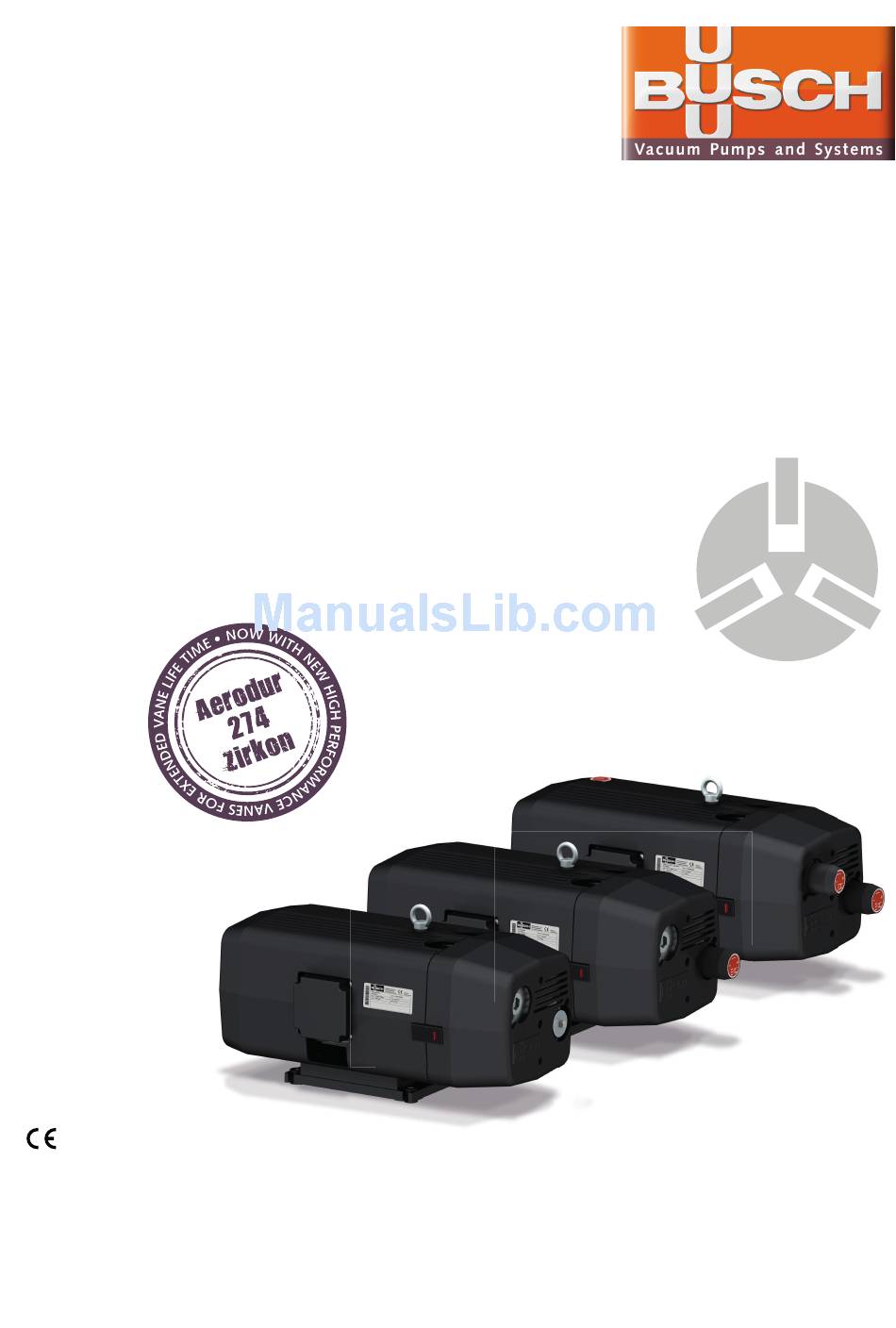

Instruction Manual
Seco
Dry-running Rotary Vane Vacuum Pumps
SV 1010 C, SV 1016 C, SV 1025 C, SV 1040 C
SD 1010 C, SD 1016 C, SD 1025 C, SD 1040 C
DC 0025 C, DC 0040 C
Ateliers Busch S.A.
Zone industrielle, 2906 Chevenez
Switzerland
0870569132/-0001_en / Original instructions / Modifications reserved
12/04/2016
Advertisement
Table of Contents
Related Manuals for BUSCH Seco SV 1010 C
Summary of Contents for BUSCH Seco SV 1010 C
- Page 1 SV 1010 C, SV 1016 C, SV 1025 C, SV 1040 C SD 1010 C, SD 1016 C, SD 1025 C, SD 1040 C DC 0025 C, DC 0040 C Ateliers Busch S.A. Zone industrielle, 2906 Chevenez Switzerland 0870569132/-0001_en / Original instructions / Modifications reserved...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 1 Safety........................... 3 2 Product Description ..................... 4 2.1 Operating Principle....................5 2.2 Application ......................5 2.3 Standard Accessories .................... 5 2.3.1 Vacuum Regulating Valve................5 2.3.2 Pressure Regulating Valve................5 2.4 Optional Accessories..................... 6 2.4.1 Non-return Valve..................6 2.4.2 Inlet Filter ....................6 2.4.3 Hose Nipple ....................6 3 Transport ........................ -
Page 3: Safety
Safety Prior to handling the machine this instruction manual should be read and understood. If anything needs to be clarified please contact your Busch representative. Read carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description
2 | Product Description Product Description SD series (pressure) only on SD/DC standard on SD SV series (vacuum) DC series (vacuum/pressure) DV/OUT optional on SV only on SV standard on DC standard on DC Suction connection Motor terminal box Discharge connection Directional arrow Vane Nameplate... -
Page 5: Operating Principle
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. -
Page 6: Optional Accessories
3 | Transport 2.4 Optional Accessories 2.4.1 Non-return Valve A non-return valve, fitted to either the inlet or the discharge line, protects the system against ingress of air or depressurization, should the machine stop for any reason. The installation of non-return valves is recommended if the lines of more than 5 meters are used. -
Page 7: Storage
~10 cm ~10 cm ~10 cm ~10 cm Ask your Busch representative Cabinet design recommandation • Make sure that the environment of the machine is not potentially explosive. • Make sure that the ambient conditions comply with the Technical Data [} 21]. -
Page 8: Connecting Lines / Pipes
In case of very long connection lines it is advisable to use larger line sizes in order to avoid a loss of efficiency. Seek advice from your Busch representative. 5.2.1 Suction Connection NOTICE Intruding foreign objects or liquids. -
Page 9: Wiring Diagram Single-Phase Motor
Installation | 5 • Electrically connect the motor. NOTICE Incorrect connection. Risk of damage to the motor! • The wiring diagrams given below are typical. Check the inside of the terminal box for motor connection instructions/diagrams. 5.3.1 Wiring Diagram Single-Phase Motor 5.3.2 Wiring Diagram Three-Phase Motor Delta connection (low voltage): Star connection (high voltage):... -
Page 10: Commissioning
6 | Commissioning Commissioning NOTICE Lubricating a dry running machine (process chamber). Risk of damage to the machine! • Do not lubricate the process chamber of the machine with oil or grease CAUTION During operation the surface of the machine may reach temperatures of more than 70°C. -
Page 11: Maintenance
Maintenance | 7 Maintenance WARNING Machines contaminated with hazardous material. Risk of poisoning! Risk of infection! If the machine is contaminated with hazardous material: • Wear appropriate personal protective equipment. CAUTION Hot surface. Risk of burns! • Prior to any action requiring touching the machine, let the machine cool down first. •... -
Page 12: Change Vanes And Internal Filters
7 | Maintenance 7.2 Change Vanes and Internal Filters only on SD and DC series only on DC series 5 mm hex key 12 / 24 0870569132_SV_SD_DC1010-1040C_-0001_IM_en... - Page 13 DC 0025-0040 C: > 33 mm SV/SD 1010-1016 C: 27 mm ≤ SV/SD 1025-1040 C and DC 0025-0040 C: ≤ 33 mm 5 mm hex key Busch genuine spare parts 7x vane (VA) 5 mm hex key 0870569132_SV_SD_DC1010-1040C_-0001_IM_en 13 / 24...
- Page 14 7 | Maintenance 1x flat gasket (FG) 3x copper washer (COW) 5 mm hex key 1x internal inlet filter (IIF) 1x internal discharge filter (IDF) on SD and DC series only 1x secondary internal inlet filter (IIF2) on DC series only 14 / 24 0870569132_SV_SD_DC1010-1040C_-0001_IM_en...
-
Page 15: Discharge Valve Maintenance (Sv Version Only)
Maintenance | 7 7.3 Discharge Valve Maintenance (SV version only) 10 mm wrench 9 mm wrench 1x felt washer (FW) L = 10 mm 9 mm wrench 10 mm wrench 0870569132_SV_SD_DC1010-1040C_-0001_IM_en 15 / 24... -
Page 16: Overhaul
• Decontaminate the machine as good as possible and state the contamination status in a ‘Declaration of Contamination’. Busch will only accept machines that come with a complete filled in and legally binding signed ‘Declaration of Contamination’. (Form downloadable from www.buschvacuum.com) Decommissioning •... -
Page 17: Spare Parts
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! • The exclusive use of Busch genuine spare parts and consumables is recommended for the proper function of the machine and for granting of warranty. 10.1 Overview... -
Page 18: Available Kits
3x (COW) / 1x (FG) / 1x (IDF) / 1x (IIF) / 1x (IIF2) / 2x (SR) / 7x (VA) If other parts are required: • Contact your Busch representative for the detailed spare parts list. 18 / 24 0870569132_SV_SD_DC1010-1040C_-0001_IM_en... -
Page 19: Troubleshooting
The machine does not start. The motor is not supplied • Check the power supply. with the correct voltage. The motor is defective. • Repair the machine (con- tact Busch). The machine does not reach The internal filters (IIF, IDF) • Replace the filter cart- the usual pressure. - Page 20 • Replace the filter cart- are partially clogged. ridge. The inlet filter (optional) is • Replace the filter cart- partially clogged. ridge. For the solution of problems not mentioned in the troubleshooting chart contact your Busch representative. 20 / 24 0870569132_SV_SD_DC1010-1040C_-0001_IM_en...
-
Page 21: Technical Data
Technical Data | 12 12 Technical Data SV 1010 C SV 1016 C SV 1025 C SV 1040 C Nominal pumping speed m³/h 10 / 12 16 / 19 25 / 30 40 / 48 (50Hz / 60Hz) Ultimate pressure hPa (mbar) abs. -
Page 22: Eu Declaration Of Conformity
This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. When this machine is integrated into a superordinate machinery the manufacturer of the superordinate machinery (this can be the operating company, too) must conduct the conformity assessment process for the superordinate machine or plant, issue the Declaration of Conformity for it and affix the CE-mark. - Page 23 Note...
- Page 24 Czech Republic Netherlands Turkey www.buschvacuum.cz www.busch.nl www.buschvacuum.com Denmark New Zealand United Arab Emirates www.busch.dk www.busch.com.au www.busch.ae Finland Norway United Kingdom www.busch.fi www.busch.no www.busch.co.uk France Peru www.busch.fr www.busch.com.pe www.buschusa.com Germany Poland www.busch.de www.busch.com.pl www.buschvacuum.com 0870569132/-0001_en / © Ateliers Busch S.A.
