Safety Prior to handling the machine this instruction manual should be read and understood. If anything needs to be clarified please contact your Busch representative. Read carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product.

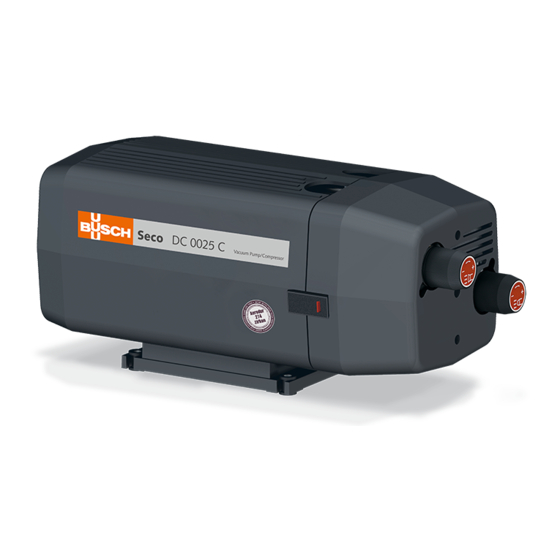

All manuals and user guides at all-guides.com 2 | Product Description Product Description SD series (pressure) only on SD/DC standard on SD SV series (vacuum) DC series (vacuum/pressure) DV/OUT optional on SV only on SV standard on DC standard on DC Suction connection Motor terminal box Discharge connection...
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment.
All manuals and user guides at all-guides.com 3 | Transport 2.4 Optional Accessories 2.4.1 Non-return Valve A non-return valve, fitted to either the inlet or the discharge line, protects the system against ingress of air or depressurization, should the machine stop for any reason. The installation of non-return valves is recommended if the lines of more than 5 meters are used.
~10 cm ~10 cm ~10 cm ~10 cm Ask your Busch representative Cabinet design recommandation • Make sure that the environment of the machine is not potentially explosive. • Make sure that the ambient conditions comply with the Technical Data [} 21].
In case of very long connection lines it is advisable to use larger line sizes in order to avoid a loss of efficiency. Seek advice from your Busch representative. 5.2.1 Suction Connection NOTICE Intruding foreign objects or liquids.
All manuals and user guides at all-guides.com Installation | 5 • Electrically connect the motor. NOTICE Incorrect connection. Risk of damage to the motor! • The wiring diagrams given below are typical. Check the inside of the terminal box for motor connection instructions/diagrams.
All manuals and user guides at all-guides.com 6 | Commissioning Commissioning NOTICE Lubricating a dry running machine (process chamber). Risk of damage to the machine! • Do not lubricate the process chamber of the machine with oil or grease CAUTION During operation the surface of the machine may reach temperatures of more than 70°C.
All manuals and user guides at all-guides.com Maintenance | 7 Maintenance WARNING Machines contaminated with hazardous material. Risk of poisoning! Risk of infection! If the machine is contaminated with hazardous material: • Wear appropriate personal protective equipment. CAUTION Hot surface. Risk of burns! •...
All manuals and user guides at all-guides.com 7 | Maintenance 7.2 Change Vanes and Internal Filters only on SD and DC series only on DC series 5 mm hex key 12 / 24 0870569132_SV_SD_DC1010-1040C_-0001_IM_en...
Page 13
DC 0025-0040 C: > 33 mm SV/SD 1010-1016 C: ≤ 27 mm SV/SD 1025-1040 C and DC 0025-0040 C: ≤ 33 mm 5 mm hex key Busch genuine spare parts 7x vane (VA) 5 mm hex key 0870569132_SV_SD_DC1010-1040C_-0001_IM_en 13 / 24...
Page 14
All manuals and user guides at all-guides.com 7 | Maintenance 1x flat gasket (FG) 3x copper washer (COW) 5 mm hex key 1x internal inlet filter (IIF) 1x internal discharge filter (IDF) on SD and DC series only 1x secondary internal inlet filter (IIF2) on DC series only 14 / 24 0870569132_SV_SD_DC1010-1040C_-0001_IM_en...
All manuals and user guides at all-guides.com Maintenance | 7 7.3 Discharge Valve Maintenance (SV version only) 10 mm wrench 9 mm wrench 1x felt washer (FW) L = 10 mm 9 mm wrench 10 mm wrench 0870569132_SV_SD_DC1010-1040C_-0001_IM_en 15 / 24...
• Decontaminate the machine as good as possible and state the contamination status in a ‘Declaration of Contamination’. Busch will only accept machines that come with a complete filled in and legally binding signed ‘Declaration of Contamination’. (Form downloadable from www.buschvacuum.com) Decommissioning •...
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! • The exclusive use of Busch genuine spare parts and consumables is recommended for the proper function of the machine and for granting of warranty. 10.1 Overview...
3x (COW) / 1x (FG) / 1x (IDF) / 1x (IIF) / 1x (IIF2) / 2x (SR) / 7x (VA) If other parts are required: • Contact your Busch representative for the detailed spare parts list. 18 / 24 0870569132_SV_SD_DC1010-1040C_-0001_IM_en...
The machine does not start. The motor is not supplied • Check the power supply. with the correct voltage. The motor is defective. • Repair the machine (con- tact Busch). The machine does not reach The internal filters (IIF, IDF) • Replace the filter cart- the usual pressure.
Page 20
• Replace the filter cart- are partially clogged. ridge. The inlet filter (optional) is • Replace the filter cart- partially clogged. ridge. For the solution of problems not mentioned in the troubleshooting chart contact your Busch representative. 20 / 24 0870569132_SV_SD_DC1010-1040C_-0001_IM_en...
All manuals and user guides at all-guides.com Technical Data | 12 12 Technical Data SV 1010 C SV 1016 C SV 1025 C SV 1040 C Nominal pumping speed m³/h 10 / 12 16 / 19 25 / 30 40 / 48 (50Hz / 60Hz) Ultimate pressure hPa (mbar) abs.
This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. When this machine is integrated into a superordinate machinery the manufacturer of the superordinate machinery (this can be the operating company, too) must conduct the conformity assessment process for the superordinate machine or plant, issue the Declaration of Conformity for it and affix the CE-mark.
Page 23
All manuals and user guides at all-guides.com Note...
