QUICK START GUIDE
FEATURES:
• 1/2.7" 5.0 Megapixel CMOS Image Sensor
• Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP
(2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF
• 2.8~12mm Motorized Varifocal Lens
• Matrix IR (up to 165' IR Range)
• True Wide Dynamic Range (120dB)
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Region Intrusion Detection, Object Abandoned / Missing, Scene Change Detection, Line
Crossing, Video Blur, Video Color Cast Detection
• H.265+ / H.265 / H.264+ / H.264 / MJPEG
• MicroSD Card Slot for Local Recording (Up to 256GB)
• 1 Ch. Audio In + Built-in Mic*
• Remote Viewing via CMS, IE (plug-in required)/Google Chrome/Edge/Firefox/Safari,
and iOS & Android Apps
• ONVIF Compliant
• IP67 Weather Resistance
• Optional Junction Boxes (VT-TJB01, VT-TJB021), WallMounts (VT-TWM03, VT-TWMT-4)
and Pendant Mounts (VT-TPDM-2 [reqs. VT-TJB01], VT-TPDM-3 [reqs. VT-TJB021])
See Additional Mounting Options on Pg. 9
• 12VDC & PoE (Power over Ethernet) Operation
• 3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.

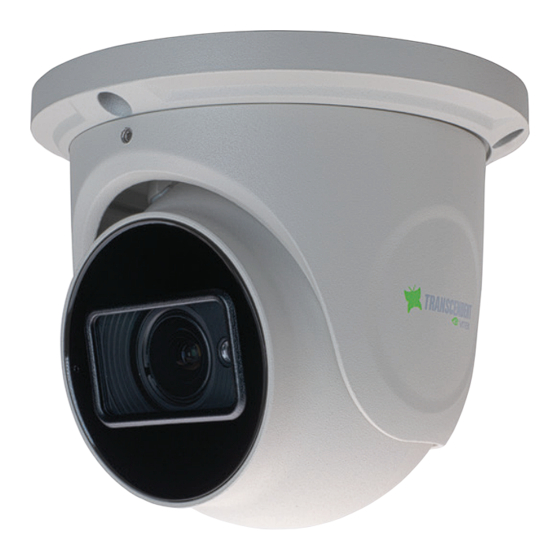

VTC-TNT5RMEA
Transcendent Series 5 MegaPixel
Motorized IP WDR Turret Camera
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-TNT5RMEA
Summary of Contents for Vitek VTC-TNT5RMEA
- Page 1 VTC-TNT5RMEA Transcendent Series 5 MegaPixel Motorized IP WDR Turret Camera QUICK START GUIDE FEATURES: • 1/2.7” 5.0 Megapixel CMOS Image Sensor • Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF •...
-
Page 2: Components And Accessories
Components and Accessories Camera Drill Template Quick Guide Rubber Plug Screws Waterproof Cap Hex Wrench Overview E thernet connector A udio input connector Power connector ounting base Locking Screw M icrophone M icro S D c ard slot R eset Network Cable &... -
Page 3: Installation
Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 4 Fig. 2 3. Loosen the locking screw, then adjust the camera to obtain the optimium viewing angle. Confirm the correct viewing angle with a monitor. Next, tighten the locking screw to secure the viewing angle adjustments. Pan: 0˚~360˚ Locking Screw Rotate: 0˚~360˚...
-
Page 5: Lan Configuration
LAN Configuration Swi t ch Net wor k Cabl e Net wor k Cabl e MENU IP Camera Comput er Rout er The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 7: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 8 VTC-TNT5RMEA Detailed Specifications 1/2.7” 5.0 Megapixel CMOS Image Sensor Image Sensor 5 MegaPixel (2880 × 1620) Image Size Resolution Up to 20fps@5MP (2880 × 1620), Up to 30fps@4MP (2560 × 1440), 3MP (2304 × 1296), 1080P (1920 × 1080), 720P (1280 × 720), D1, 480× 240, CIF 0.007 lux @F1.6, AGC ON;...
- Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNT5RMEA VT-TJB021 VT-TWM03 VT-TJB01 Optional Junction Box Optional Wall Mount Optional Junction Box VT-TPDM-2 VT-TPDM-3 VT-TWMT-4 Pendant Mount - Pendant Mount - Optional Wall Mount requires VT-TJB01 requires VT-TJB021 7.65” 4.73” VT-TPLMT VT-TCNMT Transcendent...
- Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs A Standalone Solution with Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression • Analytic Support Including Basic Face Detection, License Plate Recognition, and More! •...
- Page 11 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 12: Limited Product Warranty
LIMITED PRODUCT WARRANTY VITEK products carry a three (3) year limited warranty. VITEK warrants to the purchaser that products manufactured by VITEK are free of any rightful claim of infringement or the like, and when used in the manner intended, will be free of defects in materials and workmanship for a period of three (3) years, or as otherwise stated above, from the date of purchase by the end user.
