kÉï=~ë=çÑW=
c~ÅÉëÅ~å
fåëí~ää~íáçå=fåëíêìÅíáçåë
NOKOMNR

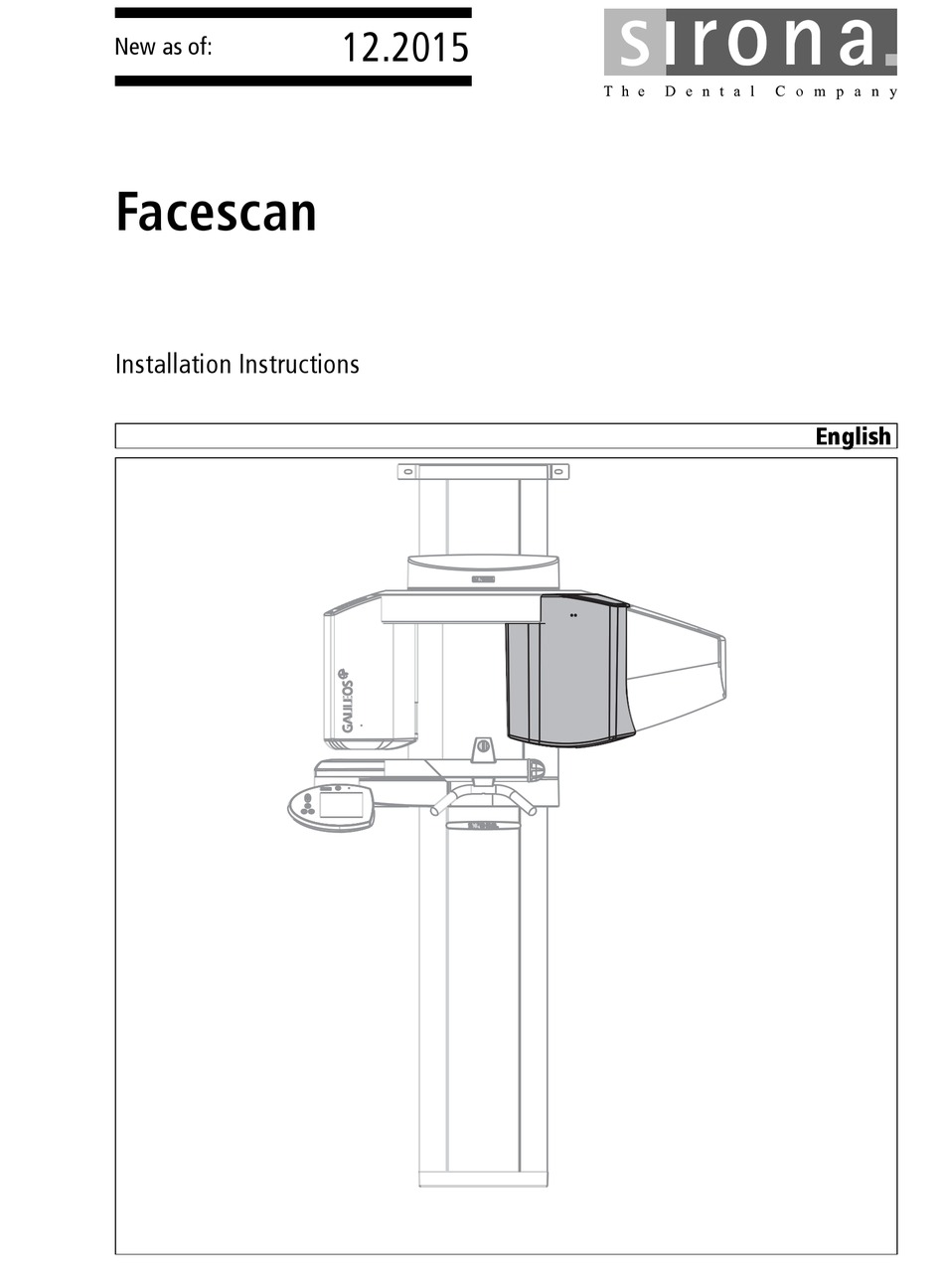

Cover page
=
båÖäáëÜ
båÖäáëÜ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Facescan and is the answer not in the manual?

Questions and answers

Related Manuals for Sirona Facescan

Summary of Contents for Sirona Facescan

  • Page 1 NOKOMNR kÉï=~ë=çÑW= c~ÅÉëÅ~å fåëí~ää~íáçå=fåëíêìÅíáçåë båÖäáëÜ båÖäáëÜ Cover page...

  • Page 3: Table Of Contents

    3.11 Installation by qualified personnel ..............3.12 Potentially lethal shock hazard..............Configuration ......................System overview ..................Status displays ..................... Delivery........................Installation ....................... Preparation....................Removing cover parts .................. Conversion of non-"Facescan ready devices"..........63 76 482 D 3572 D 3572.031.01.04.02 12.2015...
  • Page 4 7.2.1 Configuration..................7.2.1.1 Explanation................ 7.2.1.2 Configuration options ............7.2.1.3 Type 1: Configuration using the Facescan USB stick ..7.2.1.4 Type 2: Configuration over a network cable (peer-to-peer) 7.2.2 Connecting with a network ............... Connecting to SIDEXIS ................. Calibration ..................... 7.4.1 Steps to take in case of errors ............
  • Page 5 Sirona Dental Systems GmbH Table of contents Installation Instructions Facescan 9.2.3 Removing energy chain 1 (right) ............. 9.2.4 Installing new energy chain 1 ............9.2.5 Routing new cables in the stand ............. 9.2.6 Attaching board DX32 ..............9.2.7 Connecting switch S1..............

  • Page 6: General Data

    This is because of the exposure to radiation that accompanies this procedure. If an X-ray exposure is being used in combination with a Facescan exposure, but the surface exposure process fails, the patient must not be X-rayed again.

  • Page 7: About These Installation Instructions

    Sirona Dental Systems GmbH 2 About these Installation Instructions Installation Instructions Facescan 2.1 Structure of the document About these Installation Instructions Structure of the document 2.1.1 Identification of the danger levels To prevent personal injury and material damage, please observe the warning and safety information provided in the present operating instructions.

  • Page 8: Formats And Symbols Used

    Scope These installation instructions descibe the installation of the 3D surface Scope of installation instructions: FaceScan scanner Facescan. They are intended for use exclusively by trained and authorized distributors and service technicians. Prerequisites The following requirements must be met to equip a GALILEOS with Facescan: ●...

  • Page 9: Other Documentation Required

    2.5 Other documentation required Other documentation required In addition to these installation instructions you will require the following documentation: User documentation ● Facescan Operator´s Manual Order No. 6376334 Installation Instructions ● GALILEOS Installations Instructions: Order no. 6125574 (Worldwide) / 6125608 (U.S.) ●...

  • Page 10: Safety Instructions

    For reasons of product safety, this product may be operated only with original Sirona accessories or third-party accessories expressly approved by Sirona. The user is responsible for any damage resulting from the use of non-approved accessories. Fixed connection...

  • Page 11: Condensation

    Sirona Dental Systems GmbH 3 Safety instructions Installation Instructions Facescan 3.6 Condensation Condensation Extreme fluctuations of temperature may cause condensation inside the Safety information for condensation: Customer unit. Do not switch the unit on before it has reached normal room temperature. See the chapter on “Technical data”.

  • Page 12: Installation By Qualified Personnel

    ➢ It is essential to ensure the unit is not supplied with voltage. ➢ Always disconnect the unit from the junction box of the building installation. * = if available (PoE module for the power supply of a FACESCAN unit.) 63 76 482 D 3572 D 3572.031.01.04.02 12.2015...

  • Page 13: Configuration

    Sirona Dental Systems GmbH 4 Configuration Installation Instructions Facescan 4.1 System overview Configuration System overview Complete unit overview GALILEOS unit Facescan 63 76 482 D 3572 D 3572.031.01.04.02 12.2015...
  • Page 14 4 Configuration Sirona Dental Systems GmbH 4.1 System overview Installation Instructions Facescan Overview of Facescan Status display (see section Status displays [ → 15]) Illuminated strips (hidden in the image) Cameras 63 76 482 D 3572 D 3572.031.01.04.02 12.2015...

  • Page 15: Status Displays

    Meaning ● FaceScan components are switched off ● FaceScan components have shut themselves down. ● A firmware update using the FaceScan USB stick has been completed ● Standby Flashing ● Exposure readiness ● Device ready for data transfer ● Acquisition (release button...

  • Page 16: Delivery

    Make a note on the delivery slip that the indicator is activated. Ensure that the driver from the transport company confirms this on the delivery slip. Fax the delivery slip to the Sirona Customer Service Center (CSC). 63 76 482 D 3572...
  • Page 17 Enter the state of the indicators in the startup report in the case of warranty claims. Disposal of packaging materials Disposal of packaging materials Return the packaging materials to Sirona or dispose of them in compliance with the legal regulations applicable in your country. 63 76 482 D 3572 D 3572.031.01.04.02 12.2015...

  • Page 18: Installation

    6 Installation Sirona Dental Systems GmbH 6.1 Preparation Installation Instructions Facescan Installation Preparation The first work steps The first work steps 1. Move the arm (B) up to 1260 (over the spacer (A)). 2. Disconnect GALILEOS from the network. 63 76 482 D 3572...

  • Page 19: Removing Cover Parts

    2. Lower cover profile (A) Conversion of non-"Facescan ready devices" Scope GALILEOS Comfort unit up to series number 8999. Conversion See the section titled "Conversion instructions for non-"Facescan ready" units [ → 53]“. 63 76 482 D 3572 D 3572.031.01.04.02 12.2015...

  • Page 20: Installing Poe Module

    6 Installation Sirona Dental Systems GmbH 6.4 Installing PoE module Installation Instructions Facescan Installing PoE module Preparation 1. DANGER! Potentially lethal shock hazard! Disconnect the CABA-No. 7000000086 GALILEOS from the junction box of the building installation. 2. Only applicable for units prepared in the factory: Cut through the cable tie (A) on the Ethernet cable L77(L72).
  • Page 21 Sirona Dental Systems GmbH 6 Installation Installation Instructions Facescan 6.4 Installing PoE module Cable connections to the PoE module (version without board DX41) 1. Push the cable cover (I) upwards. IMPORTANT Possible assembly errors The locking catch of the RJ45 plug of Ethernet cable L77(L72) is secured with adhesive tape (N).
  • Page 22 6 Installation Sirona Dental Systems GmbH 6.4 Installing PoE module Installation Instructions Facescan 4. Pull cable L7 from the SC:SC socket. 5. Plug cable L7 into the BU2 socket of the PoE module. 6. Plug cable L71 into the BU1 socket of the PoE module.

  • Page 23: Converting The Covers Of The X-Ray Detector

    Sirona Dental Systems GmbH 6 Installation Installation Instructions Facescan 6.5 Converting the covers of the X-ray detector Cable connections to terminal K1 1. Connect cable L76.BN (brown) to terminal K1.1 (orange). 2. Connect cable L76.WH (white) to terminal K1.2 (orange). 3. Fasten cable L76 as low as possible downwards with the cable clamp (G).
  • Page 24 6 Installation Sirona Dental Systems GmbH 6.5 Converting the covers of the X-ray detector Installation Instructions Facescan 3. Put the new X-ray detector cover (V) on. 4. Route cable L78(L74) and gray cable L78(CI-FSB1) through the slot (N) of the X-ray detector cover (V).

  • Page 25: Attaching Cover Parts

    Sirona Dental Systems GmbH 6 Installation Installation Instructions Facescan 6.6 Attaching cover parts Attaching cover parts ➢ Attach the following cover parts (pay attention to the order!): 1. 2x cover profile (A) 2. Spacer (B) 3. Front cover sliding plate (K) Attaching the scan unit 6.7.1...
  • Page 26 Installation Instructions Facescan NOTICE Important data on the USB stick The USB stick contains important data for starting up FaceScan. ➢ Store the USB stick in a safe place. ➢ Do not delete any data from the USB stick. ➢ Do not copy any external data to the USB stick.
  • Page 27 Sirona Dental Systems GmbH 6 Installation Installation Instructions Facescan 6.7 Attaching the scan unit 5. Turn the holding plates (G) over the chassis plate of the face scan unit. 6. Push the installation aid (C) with the scan unit on to the sensor surface (H) of the X-ray detector.

  • Page 28: Connecting Scan Unit Electrically

    6 Installation Sirona Dental Systems GmbH 6.7 Attaching the scan unit Installation Instructions Facescan 11. Remove the installation aid (C). IMPORTANT The mounting aid (C) remains with the customer. 12. Unscrew the transport lock (B). Final tasks Note Transport lock IMPORTANT Removing the transport lock The transport lock (B) and the wing screws (A) are required if any item has to be returned (in the event of repair).
  • Page 29 2. Remove the protective plate (T).  The FACESCAN modular board is open. 3. Read the MAC address on the FACESCAN modular board at position (X) and note this down. 4. Plug cable L78(CI-FSB1) in slot X1 on the FACESCAN modular board.

  • Page 30: Step 2: Further Steps

    6 Installation Sirona Dental Systems GmbH 6.7 Attaching the scan unit Installation Instructions Facescan 4. Fasten cable L78(L74) with the clip (Z). 5. Fasten cable L78(CI-FSB1) with two cable ties (Y) to cable L78(L74). Step 2: Further steps 6.7.2.2 Explanation Depending on the intended network configuration, different work steps are required.

  • Page 31: Attaching The Facescan Cover

    ➢ Clean the surface of the mirror and the vision panel inside the FaceScan cover. Permitted cleaning agents: ● A dry, lint-free cloth. ● A cleaning agent approved by Sirona. For a continuously updated list of approved agents, please visit Care, cleaning, and disinfecting agents, with REF number "www.sirona.com"...

  • Page 32: Step 3: Further Steps

    6 Installation Sirona Dental Systems GmbH 6.7 Attaching the scan unit Installation Instructions Facescan 2. Connect the cable (H) to the display board (I) on the covering bonnet (F). The photo shows the version with an assembled protective cover (T) (The subsequent network should be configured using network cables.)
  • Page 33 Sirona Dental Systems GmbH 6 Installation Installation Instructions Facescan 6.7 Attaching the scan unit Version 1/Network configuration via USB stick 1. Screw the right end cap (J) with two screws (K) down on the scan unit. 2. Do not screw the cover cap (A) down tightly.

  • Page 34: Commissioning

    Default setting: DHCP off Types of configuration There are two types of configuration for the FaceScan: ● Type 1: Configuration using the Facescan USB stick [ → 35] IMPORTANT! The FaceScan USB stick always stays with the customer! ● Type 2: Configuration over a network cable (peer-to-peer) [ → 37] 63 76 482 D 3572 D 3572.031.01.04.02 12.2015...

  • Page 35: Type 1: Configuration Using The Facescan Usb Stick

    Remove the USB stick using the "safely remove" function (operating system) of the PC. 5. Switch GALILEOS on. 6. Wait until the green LED of the FaceScan status display lights up.  The FaceScan is now ready for operation. NOTICE...
  • Page 36 4. Remove the USB stick from the PC. Closing FaceScan Closing the FACESCAN USB slot 1. Pull cable L78(L74) from the X2 socket of the FACESCAN modular board. 2. Screw the protective plate (T) onto the FaceScan unit. 3. Plug cable L78(L74) into the X2 socket on the FACESCAN modular board.

  • Page 37: Type 2: Configuration Over A Network Cable (Peer-To-Peer)

    Connecting the Facescan unit to a PC ✔ A PC with an installed web browser must be available. ✔ The factory setting of the IP address of the Facescan is 192.168.16.240. ✔ The PC employed must be in the 192.168.16.xx network; otherwise, no network connection can be achieved.

  • Page 38: Connecting With A Network

    At least SIDEXIS XG V 2.5.3 or SIDEXIS 4 V 4.1.1 must be installed. Installation 1. Insert the FaceScan USB stick in a SIDEXIS work station connected with the SIDEXIS network. 2. Open the FaceScan USB stick with the file manager.

  • Page 39: Calibration

    9. Confirm your settings by pressing the button. Calibration Explanation Essentially, once the Facescan has been installed, a re-calibration of the GALILEOS unit has to be performed. The Facescan is automatically calibrated during the 3D calibration of GALILEOS using the 3D calibration phantom (A).
  • Page 40 4. Align the 3D calibration phantom with a spirit level. 5. Establish receptivity.  In the event of receptivity, the Facescan LEDs will switch on automatically. In the event of an error: Not all Facescan LEDs light up. -> Check the configuration.

  • Page 41: Steps To Take In Case Of Errors

    IMPORTANT: White balance Constant lighting conditions If the lighting conditions during white balancing deviate from those of subsequent FaceScan operation, this can result in color errors during FaceScan exposures. ➢ Ensure that the lighting conditions during white balancing correspond with those of the later FaceScan operation.

  • Page 42: Test Exposure

     The white balance starts. During this time, the LEDs of the FaceScan are on for the duration of the white balance. The white balance takes a minimum of 2 minutes (up to 20 minutes in the event of errors).

  • Page 43: Example 1

    Sirona Dental Systems GmbH 7 Commissioning Installation Instructions Facescan 7.6 Test exposure IMPORTANT Possible color distortions Changes to the lighting conditions lead to distortions of the color values. ➢ Once you have completed a good test exposure, repeat the white balancing with the changed lighting conditions (see section White balance [ →...

  • Page 44: Example 2

    7 Commissioning Sirona Dental Systems GmbH 7.6 Test exposure Installation Instructions Facescan ● Artifact (B) (area with slight structure duplication.) Tolerance: – Size of the area: A maximum of three grid spaces. – Number: A maximum of four areas with structure duplication.

  • Page 45: Example 3

    Sirona Dental Systems GmbH 7 Commissioning Installation Instructions Facescan 7.6 Test exposure 7.6.3 Example 3 The exposure is not okay. ● Artifact (E) (very wavy surface.) Reason: Too light or lighting too direct. ● Artifact (F) (strong duplication effect of the structure (see Example 1 [ →...

  • Page 46: Final Work

    Please note that any warranty claims can be fulfilled only if the completely and legibly completed “Installation Report / Warranty Passport” document is available at Sirona immediately after the installation. IPGP XG 3 / 5 / 3D / 3D ready / GAL 1.
  • Page 47 8 Final work Installation Instructions Facescan 8.1 Filling in the installation report and warranty passport 4. Fax the "For the dealer" copy back to Sirona immediately after the installation. IMPORTANT: The copy marked "For the dealer" is for the customer records kept by the dealer.

  • Page 48: Filling In The Certificate Of Conformity

    8 Final work Sirona Dental Systems GmbH 8.2 Filling in the certificate of conformity Installation Instructions Facescan Filling in the certificate of conformity ➢ Fill in the certificate of conformity. The system integrator uses the compatibility list as evidence of the installed SIDEXIS system's EC-conformity.

  • Page 49: Unit Handover

    Sirona Dental Systems GmbH 8 Final work Installation Instructions Facescan 8.3 Unit handover Unit handover ➢ Give the customer all of the patient positioning aids, test phantoms Unit handover and special tools included in delivery, including packaging. These are important components of the unit and must be stored carefully.

  • Page 50: Appendix

    9 Appendix Sirona Dental Systems GmbH 9.1 Checking the protective ground wires Installation Instructions Facescan Appendix Checking the protective ground wires DANGER General - Ground wire test Perilous shock hazard! It is essential to switch the unit off and to wait at least one more 1 minute before beginning the check! 1.
  • Page 51 Sirona Dental Systems GmbH 9 Appendix Installation Instructions Facescan 9.1 Checking the protective ground wires 2. Measure the voltage drop with the voltmeter, measure the current with the ammeter, and calculate the resistance using the formula R = U / I.  If the resistance value is greater than indicated in the adjacent table, check whether the protective ground wires are fastened according to the specifications.
  • Page 52 9 Appendix Sirona Dental Systems GmbH 9.1 Checking the protective ground wires Installation Instructions Facescan Measuring point G Measuring point G Stand arm (measuring point G on measuring point A ≤ 0.2Ω) Measuring point H Measuring point H Image intensifier chassis (measuring point G on measuring point A ≤...

  • Page 53: Conversion Instructions For Non-"Facescan Ready" Units

    Sirona Dental Systems GmbH 9 Appendix Installation Instructions Facescan 9.2 Conversion instructions for non-"Facescan ready" units Conversion instructions for non-"Facescan ready" units 9.2.1 Removing cover parts ➢ Remove the following cover parts (pay attention to the order!): 1. Top cover profile (A) 2.

  • Page 54: Removing Board Dx32

    9 Appendix Sirona Dental Systems GmbH 9.2 Conversion instructions for non-"Facescan ready" units Installation Instructions Facescan 9.2.2 Removing board DX32 1. Unscrew the bracket (C). The bracket (C) is located in front of board DX32. 2. Move the stand to a height of 1260 (control panel display) 3.

  • Page 55: Removing Energy Chain 1 (Right)

    Sirona Dental Systems GmbH 9 Appendix Installation Instructions Facescan 9.2 Conversion instructions for non-"Facescan ready" units DX32 X100 6. Unscrew the remaining screws from the protective plates (E). 7. Remove the covering plates (E) (top and bottom) from the connection box (F) of board DX32.
  • Page 56 9 Appendix Sirona Dental Systems GmbH 9.2 Conversion instructions for non-"Facescan ready" units Installation Instructions Facescan DANGER Danger of fatal electrocution! ➢ Before you remove the energy chain, switch off the power supply. 1. Disconnect cable L1 from switch S1. 2. Disconnect cable L1 from the ground point (F).
  • Page 57 Sirona Dental Systems GmbH 9 Appendix Installation Instructions Facescan 9.2 Conversion instructions for non-"Facescan ready" units 7. Remove the power cable from terminal K1. 8. Unscrew the mains filter plate. 9. Remove the cable covers (I) and (J) of the right-hand cable duct.

  • Page 58: Installing New Energy Chain 1

    9 Appendix Sirona Dental Systems GmbH 9.2 Conversion instructions for non-"Facescan ready" units Installation Instructions Facescan 9.2.4 Installing new energy chain 1 1. Route the energy chain up through the stand from its base. Installing the energy chain 2. Insert new energy chain 1 in the stand.

  • Page 59: Routing New Cables In The Stand

    Sirona Dental Systems GmbH 9 Appendix Installation Instructions Facescan 9.2 Conversion instructions for non-"Facescan ready" units 5. Screw the power cable (A) to the terminal K1 and the strain relief. 6. Route the external PE cable (B) over the mains filter plate through the ferrite core twice (C) (two hoses).
  • Page 60 9 Appendix Sirona Dental Systems GmbH 9.2 Conversion instructions for non-"Facescan ready" units Installation Instructions Facescan 3. Lay Ethernet cable L77(L72) on top. 4. Route Ethernet cable L77(L72) through the arm opening to DX1. 5. Route Ethernet cable L77(L72) and the ground strap in the right-hand cable duct.

  • Page 61: Attaching Board Dx32

    Sirona Dental Systems GmbH 9 Appendix Installation Instructions Facescan 9.2 Conversion instructions for non-"Facescan ready" units 9.2.6 Attaching board DX32 IMPORTANT Add cable ties For the following steps, all necessary cable ties that were removed previously are to be replaced. IMPORTANT Assembly instructions Before assembling board DX 32, the bracket (C) needs to be reattached.
  • Page 62 9 Appendix Sirona Dental Systems GmbH 9.2 Conversion instructions for non-"Facescan ready" units Installation Instructions Facescan Connecting power supply cable L77(L70) (to terminal K1) with switch IMPORTANT Keep safety clearance! Both flat power strips (A) of power supply cable L77(L70) must be attached to the lower connections of switch S1.

  • Page 63: Removing The Laser Module

    Sirona Dental Systems GmbH 9 Appendix Installation Instructions Facescan 9.2 Conversion instructions for non-"Facescan ready" units 9.2.8 Removing the laser module 1. Remove the plate (A) with the laser module. 2. Allow the plate (A) to hang carefully 9.2.9 Removing the cable conduit with cable L13 on the ring 1.

  • Page 64: Lay Cable Conduit L78 On The Ring

    9 Appendix Sirona Dental Systems GmbH 9.2 Conversion instructions for non-"Facescan ready" units Installation Instructions Facescan 9.2.10 Lay cable conduit L78 on the ring Connecting cables to the arm IMPORTANT Possible assembly errors The locking catch of the RJ45 plug of Ethernet cable L77(L72) is secured with adhesive tape for protection.
  • Page 65 Sirona Dental Systems GmbH 9 Appendix Installation Instructions Facescan 9.2 Conversion instructions for non-"Facescan ready" units Laying a new cable conduit For support refer to the GALILEOS Service Manual NOTICE Possible laying errors The laying of cables L78(L73) and L78(L74) in the arm is significant in terms of EMC.

  • Page 66: Connecting Cable L78(L73) To The X-Ray Detector

    9 Appendix Sirona Dental Systems GmbH 9.2 Conversion instructions for non-"Facescan ready" units Installation Instructions Facescan 9.2.11 Connecting cable L78(L73) to the X-ray detector 1. Insert cable L78(L73) into socket X201 on board DX89. 2. Route gray cable L78(CI-FSB1) from the plug housing of cable L78(L73) forward toward the ring.

  • Page 67: Attaching Cover Parts

    Sirona Dental Systems GmbH 9 Appendix Installation Instructions Facescan 9.2 Conversion instructions for non-"Facescan ready" units 9.2.13 Attaching cover parts ➢ Attach the following cover parts (pay attention to the order!): 1. Protective cover (Z) 2. Ring cover bottom (P) 3. Ring cover top (G)

  • Page 68: Adjusting The Laser Module

    4. Switch the unit off again. 9.2.15 Completion Conduct the installation of the Facescan (see section Installing PoE module [ → 20]). 63 76 482 D 3572 D 3572.031.01.04.02 12.2015...
