Sirona C8+ Operating Instructions

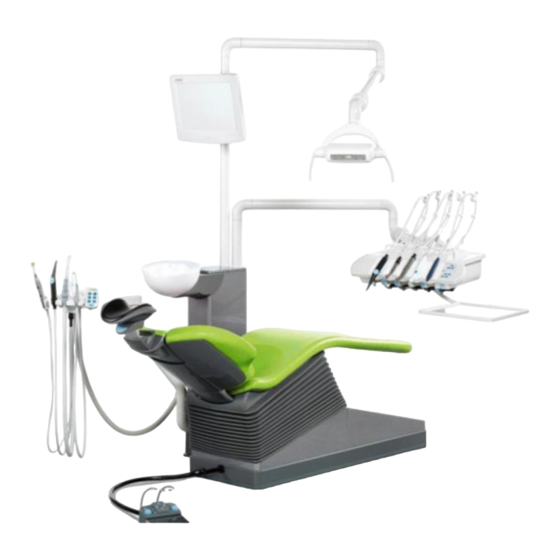

Simulation workstation
B
P
A
D
C
A
Main device switch ON (I)/OFF (0)
B
Control panel on the dentist element
C Motor speed controller/SIROSONIC L intensity
D
Spray instrument control
E
Motor speed display/SIROSONIC L intensity
F
Motor rotation clockwise/counter-clockwise
G
Operation light ON/OFF
H
Composite ON/OFF
I
Pneumatic foot switch
1 Start instruments
2 Spray ON/OFF
3 Chip Blower
J
Option: Foot switch, can be controlled electrically
1 Foot pedal for speed control during speed foot control functions
2 Instrument spray ON/OFF
3 Chip blower on the treatment instrument
Configuration on the highspeed handpiece
E
1. Remove motor An LED on lights up
è
2. Remove motor hose – attach highspeed handpiece hose
F
3. Press button for > 10s
E
4. All LEDs on light up (configured on highspeed handpiece)
+

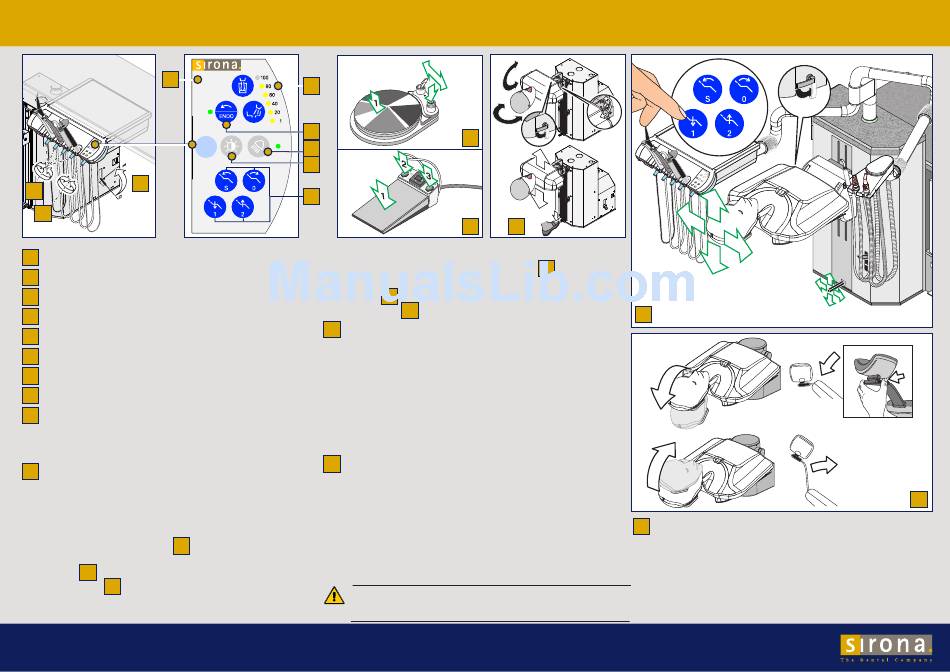

C8 brief operating instructions
0
2
E
I
3
F
I
G
H
L
J
Configuration on the motor
1. Remove highspeed handpiece
2. Remove highspeed handpiece hose – attach motor hose
F
3. Press button for > 10s
E
4. An LED on lights up (configured on motor)
K
"Patient simulator" mechanical setting
1. Tilt adjustment: Release "tilt" clamping lever (A)
Tilt patient simulator to the desired position
Re-secure clamping lever
2. Rotation: Release "rotation" clamping lever (B) Rotate
patient simulator into the desired position
Re-secure clamping lever
3. Height adjustment: Press to release locking lever (C)
Move patient simulator into the desired position
Re-secure clamping lever
L
"Patient simulator" electrical setting
1. Tilt adjustment: Press the button (C or D) on the dentist
element or the 4-way foot switch (C or D)
Patient simulator tilted DOWN/UP
è
2. Rotation (mechanical): Release "rotation" clamping lever (B)
Rotate patient simulator into the desired position
Re-secure clamping lever
3. Height adjustment: Press the button (A or B) on the dentist
element or the 4-way foot switch (A or B)
Patient simulator DOWN/UP
è
ATTENTION! Patient simulator must be able to move "FREELY".
There must be no obstacles in the travel range!
A
B
K
C
E
All LEDs on light up
è
L
M
C D
B
A B
B
C
D
A
B
C
A
Adjusting the articulating headrest
Tilt the headrest backward using the locking button (A)
Tilt the headrest forward by simply pulling it out
D
A
M
