Summary of Contents for Woodpecker LED.F
-
Page 2: Table Of Contents
Content 1. Introduction ................1 2. Principle and Application ............1 3. Product Performance Structure and Components ....1 4. Basic Technical Specifications ..........2 5. Installation and Demounting ..........3 6. Operation ................3 7. Precaution ................5 8. Contraindication ..............6 9. Daily maintenance ..............7 10. Troubleshooting ..............7 11. -
Page 3: Introduction

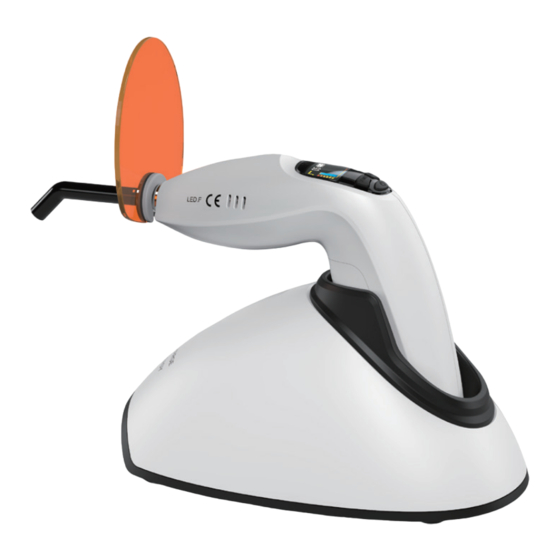

2. Principle and Application 1.1 The curing light LED.F utilizes the principle of the light radiation to make the resin which is high sensitivity with the ray radiation solidified rapidly. -
Page 4: Basic Technical Specifications
4. Basic Technical Specifications 4.1 Power supply: 4.1.1 Rechargable Li-ion Battery: Battery nominal voltage and capacity: 3.7V 2000mAh Battery Model: ICR18650 Battery has protection against Over-voltage, over-current and short circuit 4.1.2 Adapter: Input: AC100V~240V 50Hz/60Hz Output: DC5V/1A 4.2 Applied part: Optical fiber 4.3 Light source: High-power: LED blue light... -
Page 5: Installation And Demounting
Wave length: 440nm-490nm Light intensity: 1600mW/cm ~1800mW/cm 4.4 Working condition: Environment temperature: +5 ℃ to +40 ℃ Relative humidity:30%~75% Atmosphere pressure: 70kPa to106kPa 4.5 Dimension: 195mm×40mm×150mm 4.6 Net weight: 210g 4.7 Consume power: ≤8W 4.8 Protection type against electric shock : Class Ⅱ 4.9 Degree of Electric shock protection: Type B 4.10 Degree of protection against harmful ingress of water: Ordinary equipment (IPX0) - Page 6 6.1 You can choose one of the following operating modes by pressing the MODE button on the curing light, the relative icon is displayed on the screen. TURBO Mode: Consistently high light intensity for the polymerization of restorative and cementation materials for direct and indirect restorations.The select of time could be 3,5 and 10 seconds.Its output light intensity is about 1600 mW/cm -1800 mW/cm...
-
Page 7: Precaution
unit will produce "Bi"sound, the curing light radiates blue light and starts working according to the set modes. Meanwhile, it starts counting down and will produce tone at every 10s, it stops working when counting down to "0". 6.5 During operation, the curing light can be stopped by pressing the power button at any time. -
Page 8: Contraindication
7.3 It is forbidden to point blue light to the eyes. 7.4 Only the original pedestal charger, adapter and Lithium battery could be used, because other brand pedestal charger, adapter and Lithium battery are likely to damage the circuit. 7.5 It is forbidden to use metal or other conductors to touch the main unit and the charging point of pedestal because it may burn the internal circuit or make the li-ion battery short circuit. -
Page 9: Daily Maintenance
9. Daily maintenance 9.1 This equipment does not include the self-maintainable spare parts. The maintenance of this equipment should be taken by the appointed professional or special repair shop. 9.2 Only the optical fiber of this equipment can be autoclaved under high temperature and pressure. -
Page 10: Packing List
Faults Possible causes Solutions 1. The optical fiber is not inserted into the 1. Please reinstall the bottom. optical fiber. 2. The optical fiber Light intensity is 2. Please change the is cracked. insufficient. optical fiber. 3. There is resin 3. -
Page 11: After Service
ventilated places. 12.2 Don't store the equipment together with articles that are combustible, poisonous, caustic, and explosive. 12.3 This equipment should be stored in the environment where the humidity is 10%~93%, the atmosphere pressure is 70kPa~106kPa and the temperature is -20 ℃ ~55 ℃ . 12.4 Excessive impact or shake should be prevented during transportation. -
Page 12: Environmental Protection
The pictures are only for reference. The final interpretation rights belong to GUILIN WOODPECKER MEDICAL INSTRUMENT CO., LTD. The industrial design, inner structure, etc, have claimed for several patents by WOODPECKER, any copy or fake product must take legal responsibilities. -
Page 13: Emc - Declaration Of Conformity
18. EMC - Declaration of conformity The device has been tested and homologated in accordance with EN 60601-1-2 for EMC. This does not guarantee in any way that this device will not be effected by electromagnetic interference Avoid using the device in high electromagnetic environment. - Page 16 ZMN/WI-09-447 V1.1-20190105...
