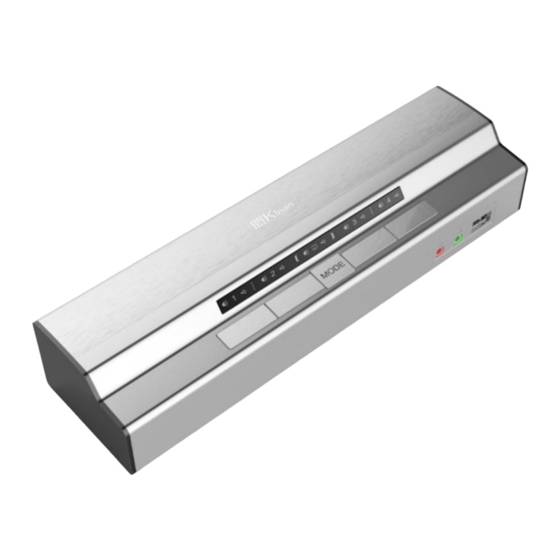

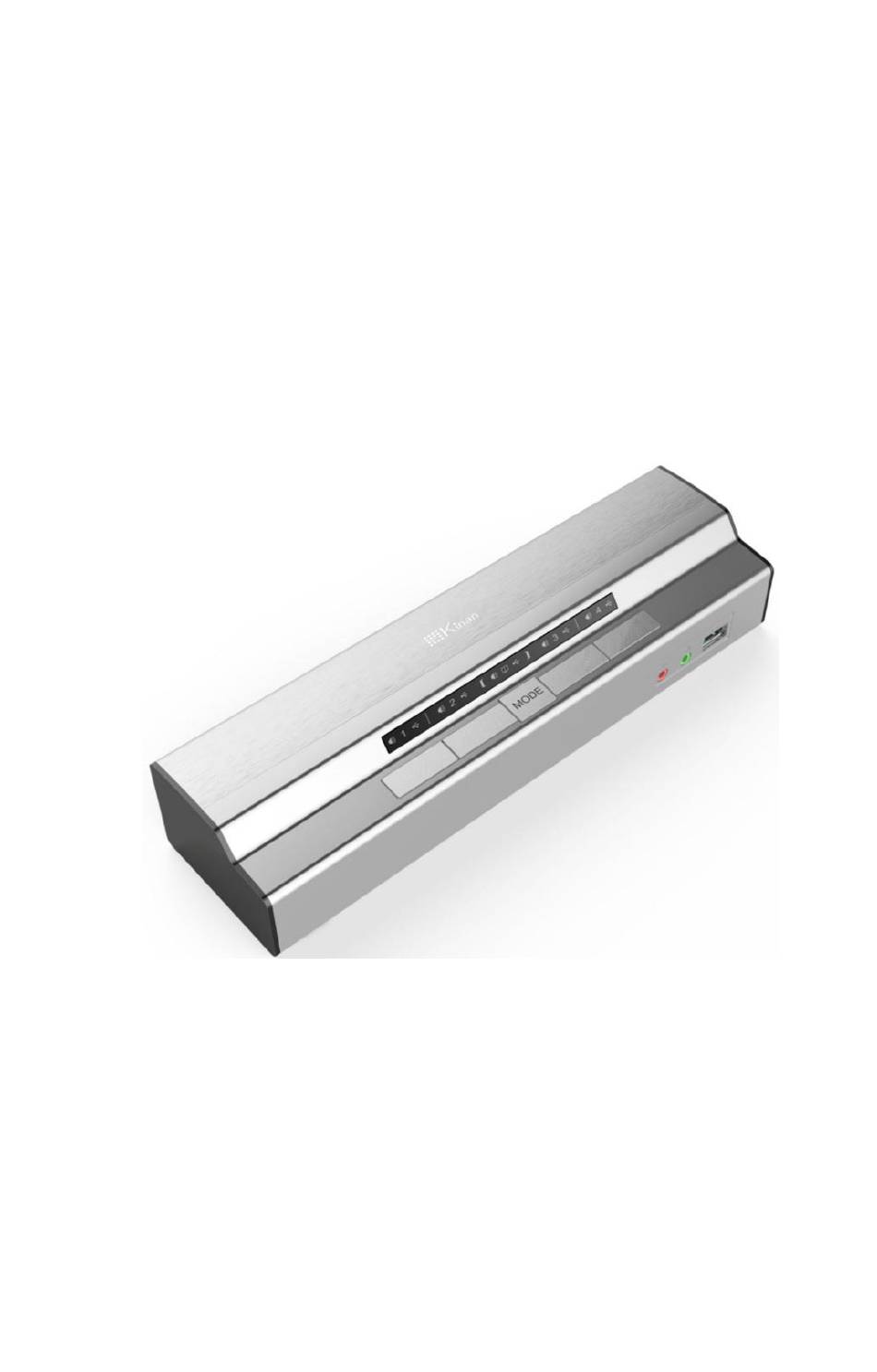

- Page 1 USB2.0 HDMI KVM Switch （ HD1104） User Manual http://www.kinankvm.com/ @all right reserved Shenzhen Kinan Technology Co., Ltd Printing date：2022/04 Version：V1.2...
- Page 2 HD1104 User Manual Overview Product Description HDMI KVM Switch is a control device to control multiple computers via a set of monitor-keyboard-mouse, which provides both style and multi-functionality for today’s multimedia SOHO environment. It provides seamless HDMI signal switching between PCs or other HDMI-enabled devices, such as FPD, Plasma display, digital television and television set-top box.
-
Page 3: Appearance & Structure
HD1104 User Manual Appearance & Structure 48.5 264.0 71.0 KVM rear view Figure 1.1 rear view Table 1.1: instructions for figure 1.1 Instructions Power port Console USB port ( keyboard, Mouse) Console HDMI port KVM port Firmware upgrade port Peripheral USB2.0 port... -
Page 4: Installation Instructions
HD1104 User Manual Installation Instructions Before installation, make sure all the devices that to be connected are power off. 1） Connect the monitor, USB keyboard and mouse to the local console port on the device (see ① in below figure). - Page 5 HD1104 User Manual Instructions for front panel pushbuttons and infrared remote control Table 1.2： Pushbutton (1) LEDs (2) Functions Number button After setting the Mode function, press the relevant number button to switch. This allows you to cycl e throu gh the thre e modes of focus-audio, KVM and USB.
- Page 6 HD1104 User Manual Hot Key Operations Press the “ L_ Ctrl” key twice (with 2S interval), the keyboard is under hotkey mode after hearing one beeper sound. The keyboard will exit the hotkey mode if you do not press any hotkey within 2 seconds under keyboard hotkey mode.
-
Page 7: Specifications
HD1104 User Manual Specifications Function HD1104 Computer Connections Front panel pushbuttons, keyboard Port Selection hotkey, infrared remote control Monitor 1x HDMI type A Keyboard 1x USB type A (Black) Console Mouse 1x USB type A (Black) Microphone 2x Min stereo port (pink) - Page 8 HD1104 User Manual This Page Intentionally Left Blank...
